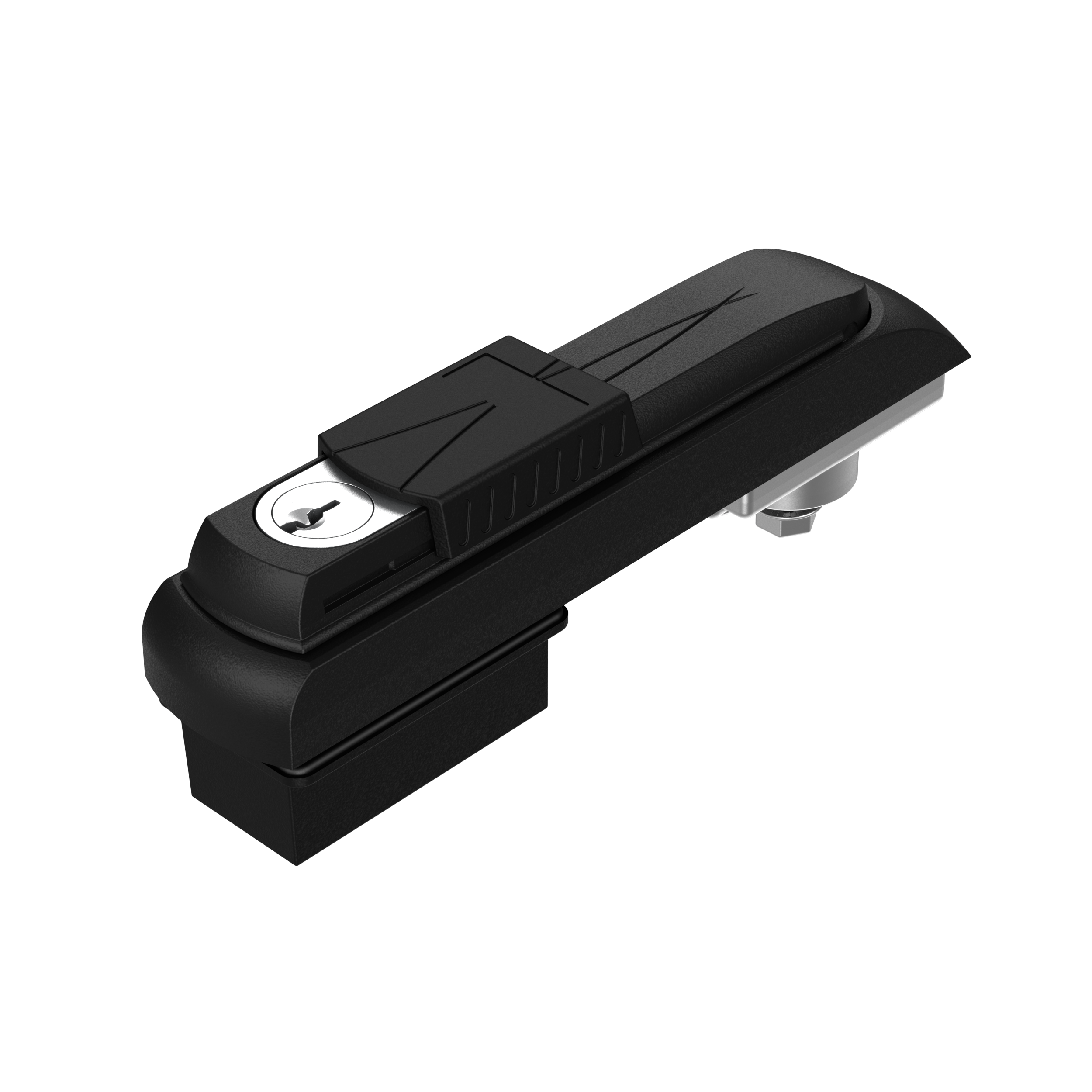

Vision Swing Handle RC2 for oval cylinder
Index Code:1-004.15
Low profile swing handle used for Vision classic latching systems, traditional cams and round rods. Approved according to the anti-vandal classification RC2. Optional saw protection available for protection beyond RC2 requirements.

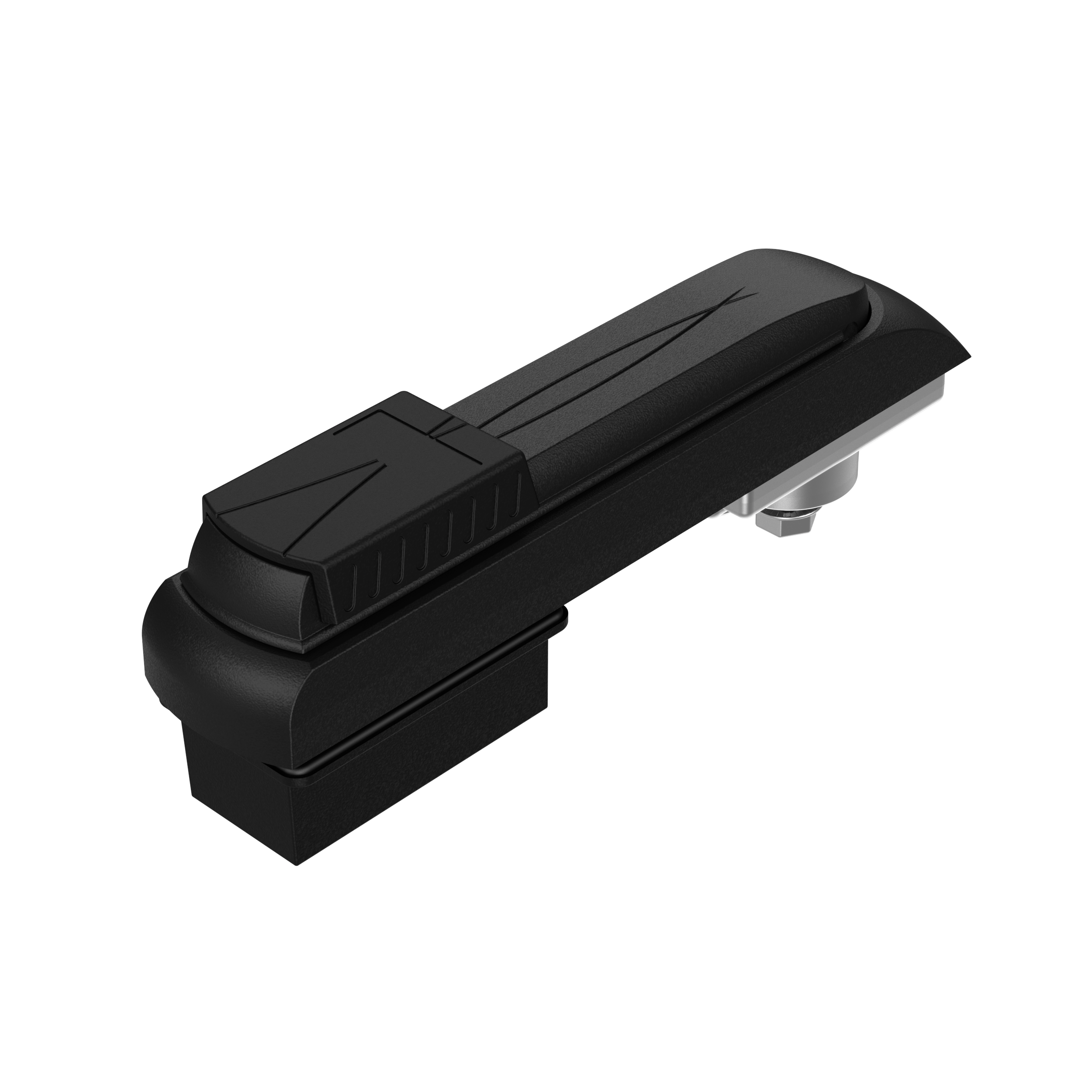

It is used with a Scandinavian oval cylinder (ordered separately). Equipped with sliding dust cover and sealed to IP66.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Handle | Zinc die cast, black coated |
|---|---|
| Dish | Zinc die cast, black coated |
| Pivot shaft | Stainless steel 316 |
| Dust cover | Glass fibre reinforced polyamide (PA6GF30) |
| O-ring | NBR |
