1-002_01 |

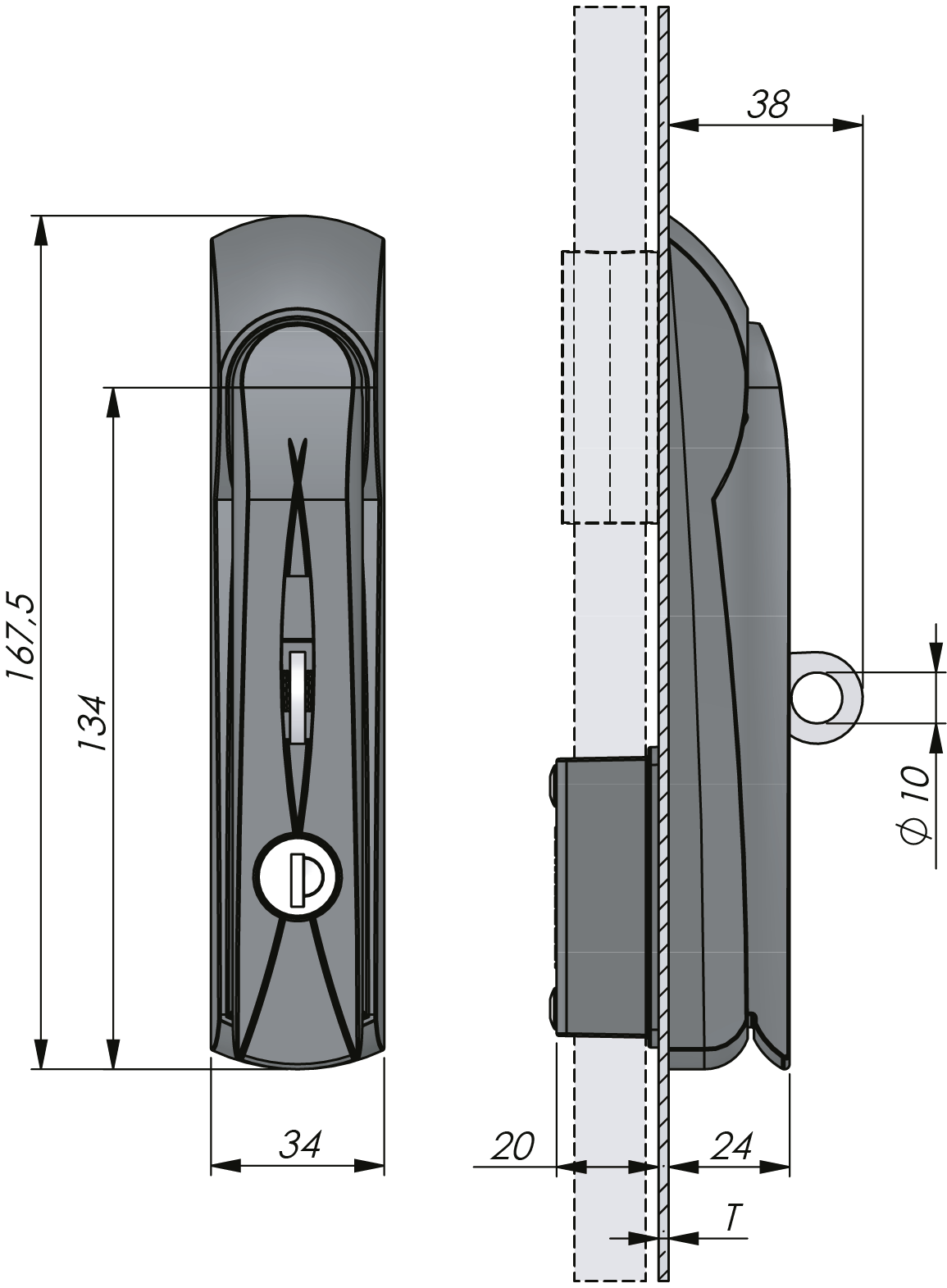

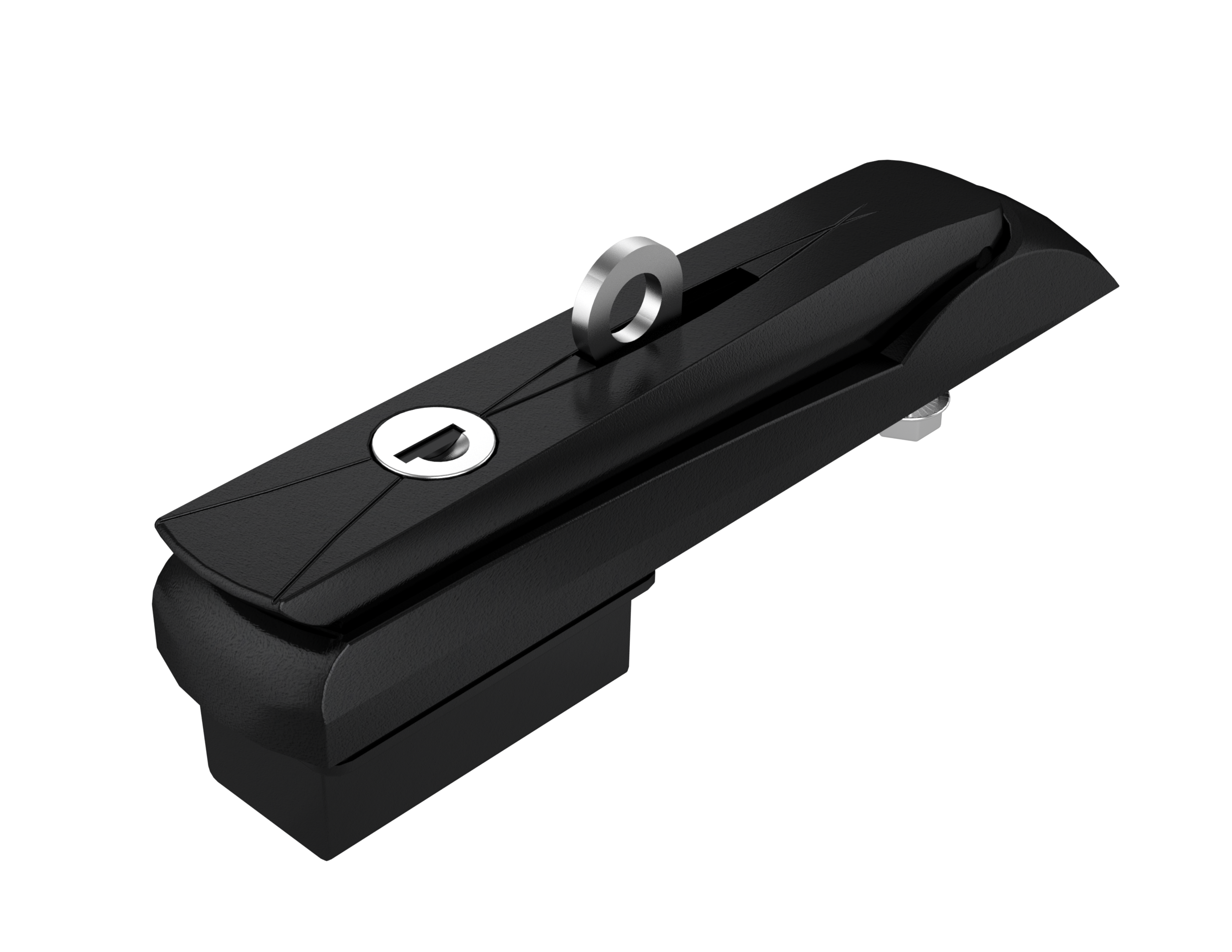

Manija giratoria Vision estándar con llave
Index Code:1-002.01
Manija giratoria de perfil bajo con cerradura de llave para el mecanismo de control. Se suministra con dos llaves. Disponible en versión empujar-para-cerrar, en la cual la leva con resorte se bloquea al empujar la manija.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
|---|---|
| Handle | Zinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30) |
| Padlock loop | Stainless steel 304 |
| Pivot shaft | Zinc die cast, zinc plated |
| Cutout | Version C |
|---|---|
| Cylinder information | Master key system on request |
| Classifications | IP66,NEMA 4 |
To download CAD-files, you need an Industrilas account. It only takes a minute.
Make your selections in each column to create your article number (AAAAAAABC-DDDD)
|
|
|
|
PDL = Spring loaded padlock loop retracts when handle is released.
