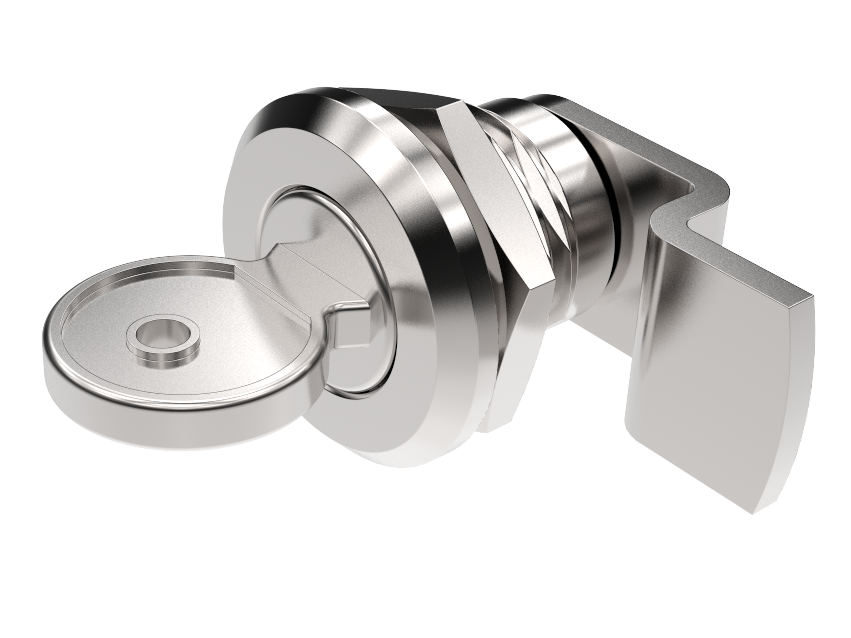

Cerradura compacta de cuarto de vuelta con llave
Index Code:2-117
Cerradura compacta con llave con rotación de 90°. Giro universal en el sentido de las manecillas del reloj al abrir o cerrar. Se suministra con leva.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| Cam | Steel, zinc plated |
|---|---|
| Cylinder | Zinc die cast |
| Housing | Zinc die cast, chrome plated |
| Nut | Brass, zinc plated |
| Key extraction | Open / Closed |
|---|---|
| Cutout | COMPACT |
| Cylinder information | Supplied with two keys |
| Earthing nut can be ordered separately, see related products." data-field-type="editor" data-typid="14" data-categoryname="">Notes | Earthing nut can be ordered separately, see related products. |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
