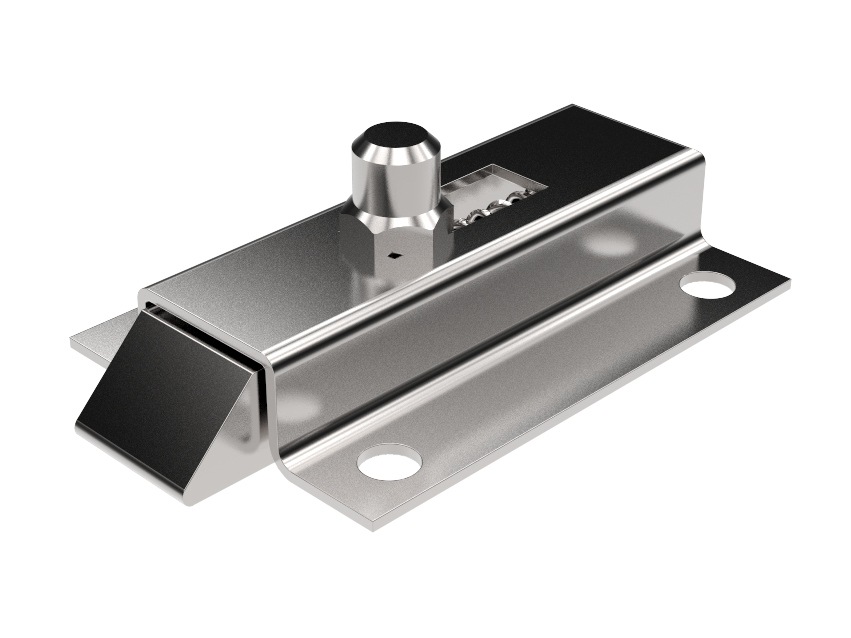

Cerradura de golpe
Index Code:5-040

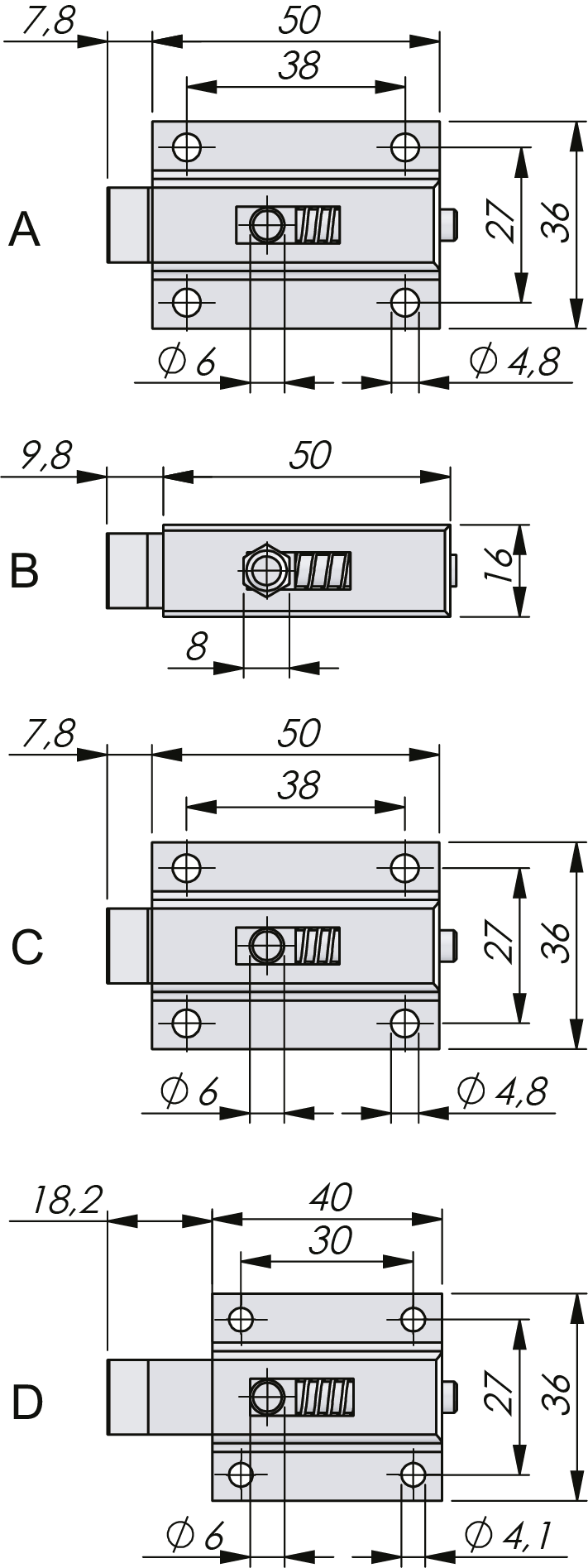

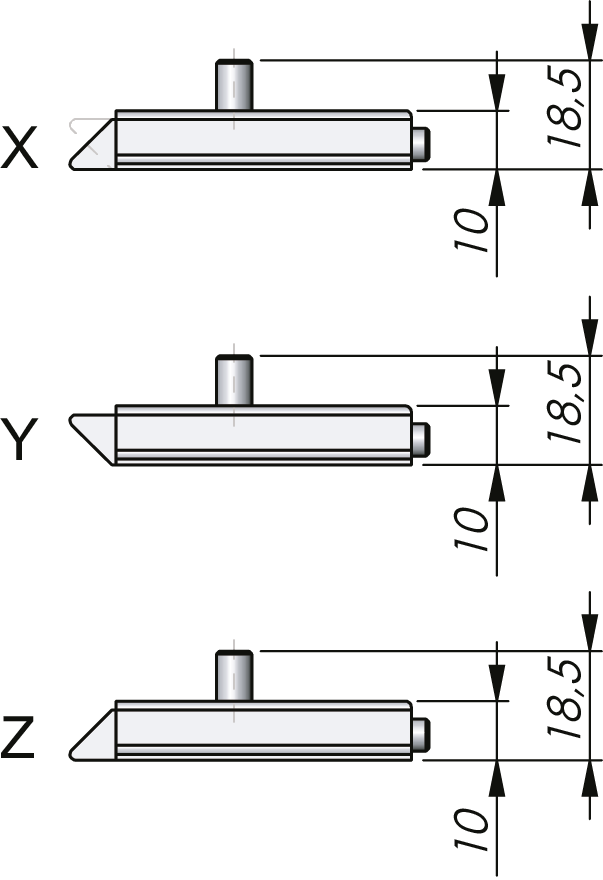

Leva con resorte con accionamiento manual que permite la acción de cierre. El dibujo muestra: leva fija (Y o Z) o giratoria (X). Carrera 7.8 - 12 mm. Fijación con tornillo o soldado.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Cam | Zinc die cast or steel, zinc plated |
|---|---|
| Housing | Steel, zinc plated or unplated |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
Weld-on version supplied untreated.
