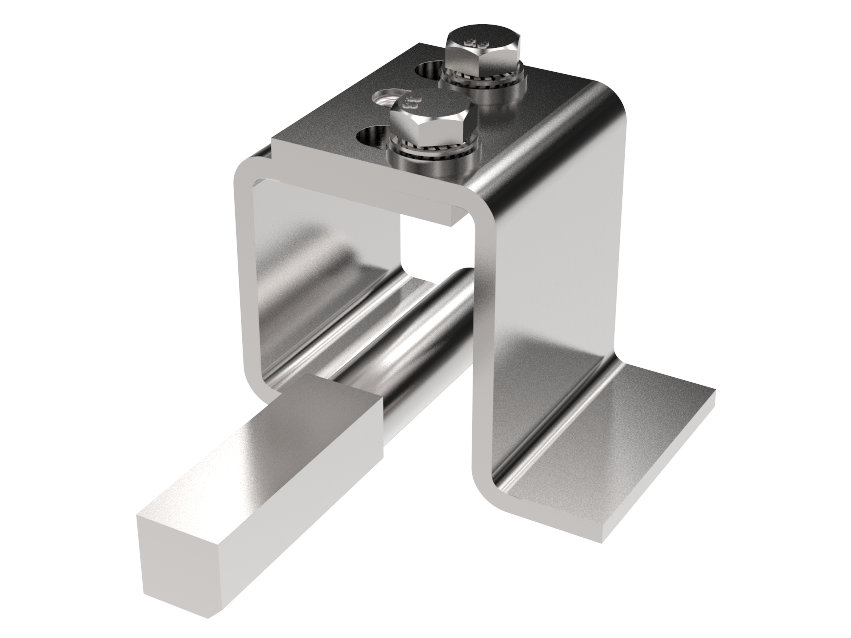

Bisagra oculta desmontable ajustable 100 °
Index Code:3-030
Bisagra soldable, oculta, desmontable y ajustable con instalación universal izquierda y derecha. La parte de la puerta es ajustable 10 mm horizontalmente. La parte del marco es con forma de pasador cuadrado.
| Download PDF | Product Data Sheet |
| Door part, rolled | Steel, zinc plated |
|---|---|
| Door part, Z-shaped | Steel, unplated (for welding) |
| Frame part | Steel, unplated (for welding) |
| Nut | Steel, zinc plated |
| Pin | Steel, unplated (for welding) |
| Screw | Steel, zinc plated |
