1-002_11 |

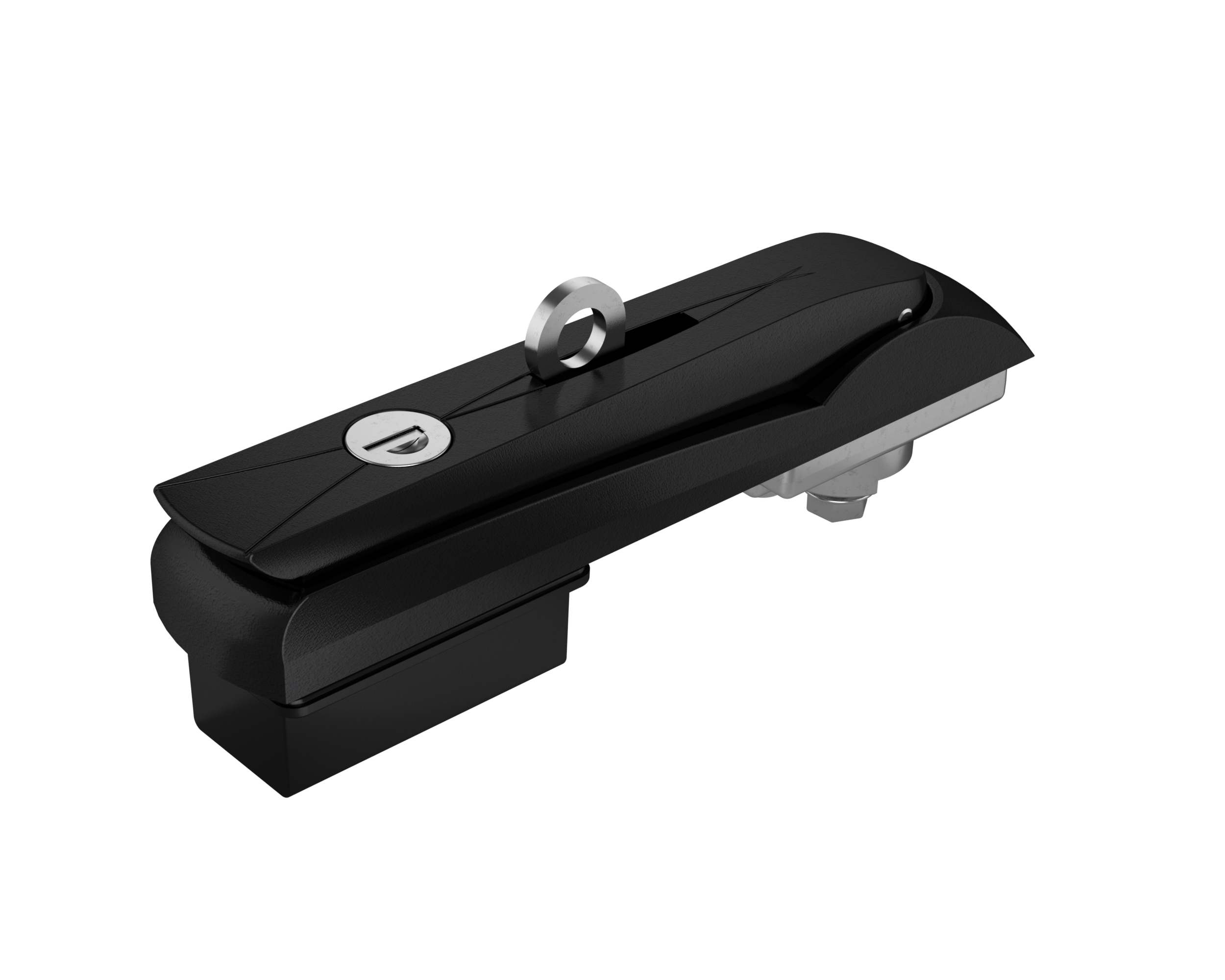

Manija giratoria Vision estándar con llave
Index Code:1-002.11
Manija giratoria de perfil bajo con cerradura de llave para leva. Se suministra con dos llaves. Disponible en la versión empujar-para-cerrar, en la cual la leva con resorte se bloquea cuando se empuja la manija, y en la versión PDL, en la cual el porta-candado con resorte se retrae cuando se libera la manija.
| Download PDF | Product Data Sheet |
| Download PDF | Industrilas cut out versions |
| Download PDF | Recommended Tightening Torque |
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
|---|---|
| Dish | Zinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30) |
| Handle | Zinc die cast, black coated or fibre glass reinforced polyamide (PA6GF30) |
| Pivot shaft | Zinc die cast, zinc plated |
| Padlock loop | Stainless steel 304 |
| Cutout | Version C |
|---|---|
| Notes | * Master key system on request. |
| Cylinder information | Master key system on request,Supplied with two keys |
| Classifications | IP66,NEMA 4 |
