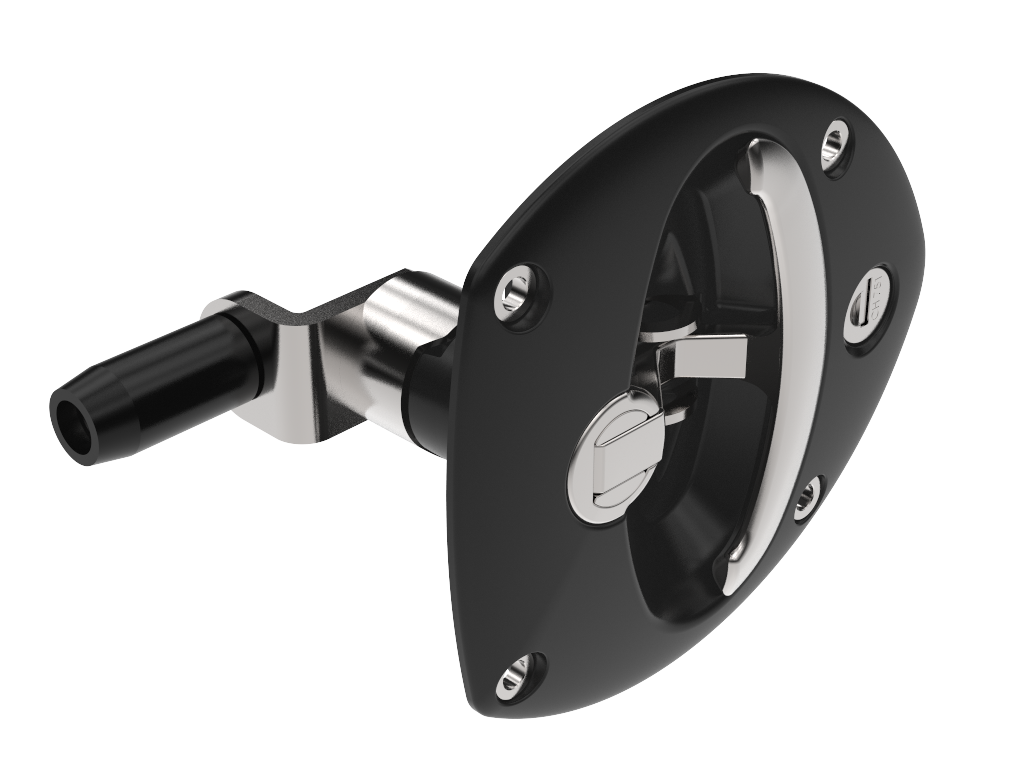

Vector T1 Handle

Index Code:
2-800

This flush T-handle is available in zinc or stainless steel and has a 4 mm compression stroke. It features two locking systems: a key-locked cylinder and a retractable padlock loop that prevents the handle from being lifted. The handle can be ordered in three turn to open versions: 90° right, 90° left or 180°.

Mounted with screws or rivets. Five cam versions are available. To improve sealing against door, add the optional handle-shaped flat gasket. To adapt to other key combinations, choose delivery with unassembled cylinder.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
CylinderZinc die cast, stainless steel 304 cap and dust shutter
Adjustable camZinc die cast, passivated
BodyGlass fibre reinforced polyamide (PA6GF30)
Fixed camSteel, zinc plated
HandleZinc die cast, chrome plated, black texture powder coated or stainless steel 304, plain or black texture powder coated
Padlock loopStainless steel 304
RollerGlass fibre reinforced polyamide (PA6GF30)
ShaftSteel, zinc plated or stainless steel 303
StandardsDIN EN 61373
Cylinder informationSupplied with two keys
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAAAA-BBCDDDDD)
AAAAAA Handle / Shaft Handle
272021Zinc / SteelBlack
272321Zinc / SteelChrome
273021SS 304 / 303Black
273921SS 304 / 303Plain
BB Cylinder
00Non-locking
02Keyed to differ
06Keyed alike 751
C Opening rotation
H90° clockwise
V90° counter-clockwise
-180°

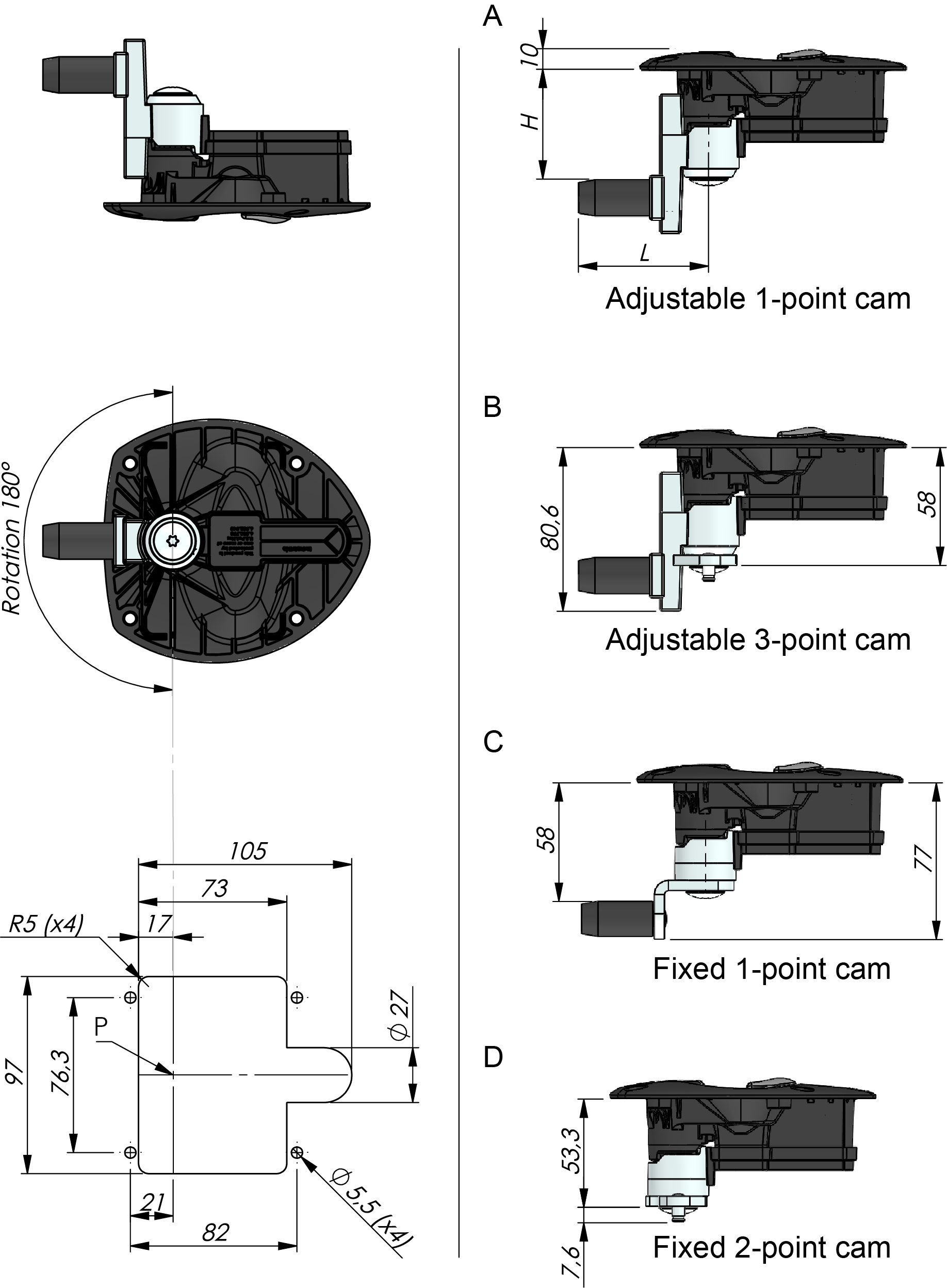

DDDDD Cam H= L= Drawing
5861* Fixed roller cam5861C
S5400Two-point cam--D
S6685* Fixed three-point roller cam6685Not shown
SAdjustable three-point roller cam10-6061B
S1Adjustable single point roller cam10-6061A
* Other dimensions on request.
