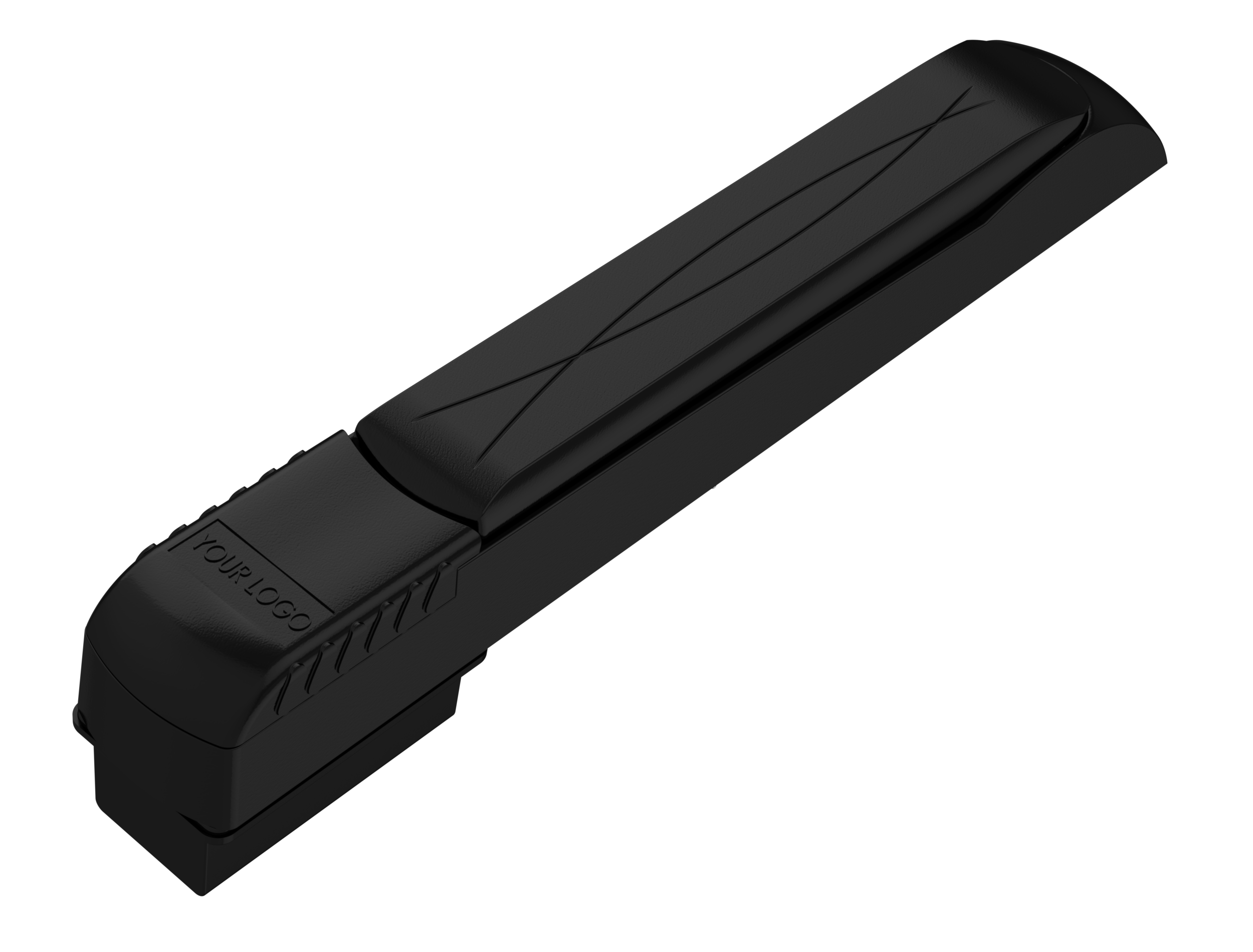

Vision Lift Handle

Index Code:
1-006.50

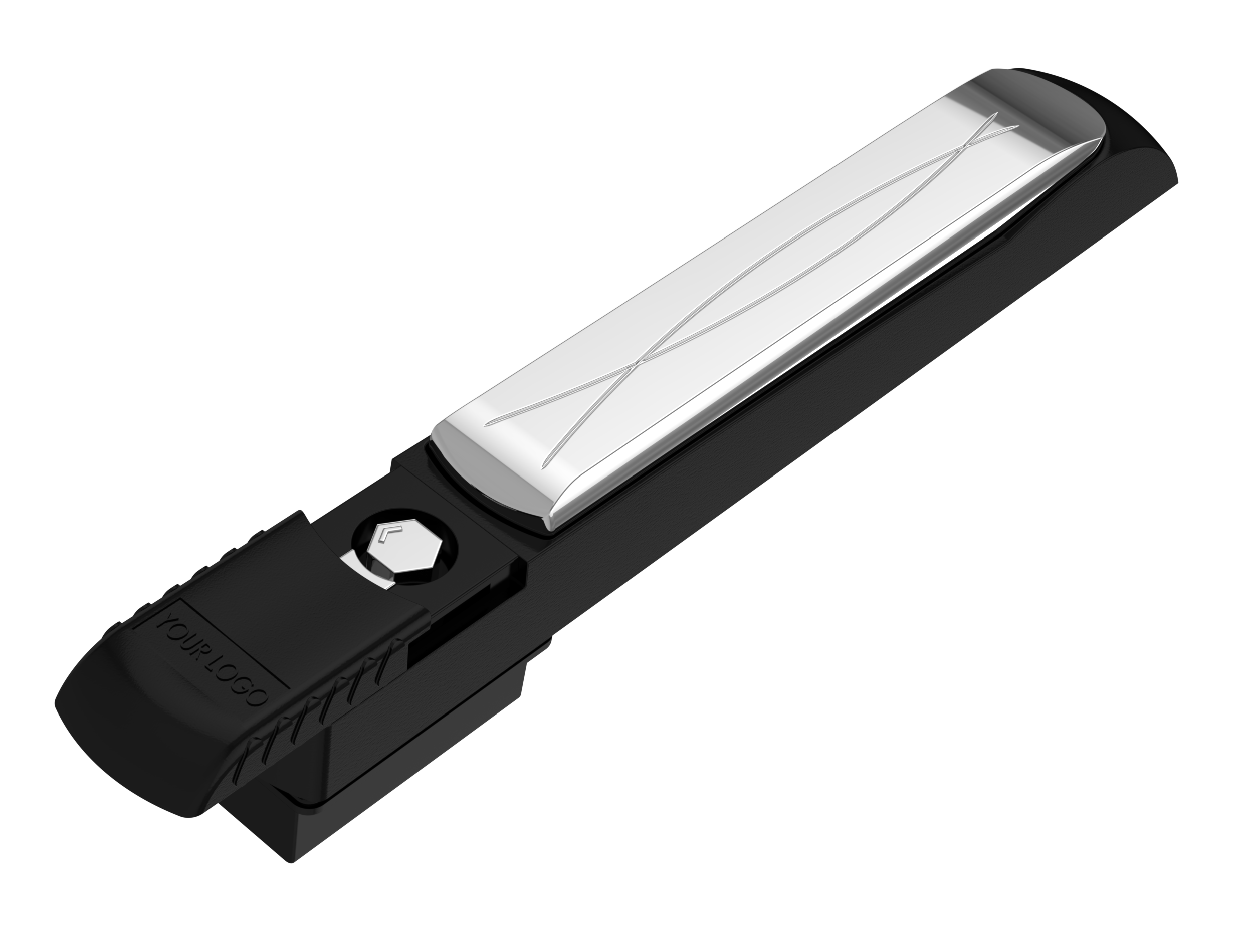

The patented Vision Lift Handle operates all Vision™ latching systems. The handle is available with a push button, a tool operated insert, a round cylinder keyed to differ or keyed alike or prepared for a 40 mm profile cylinder or oval cylinder.

The handle is spring loaded and pops out when it is unlocked or the push button is pressed. Since the locking mechanism is not a part of the actual handle, it is very comfortable to operate.

Cylinders and inserts are covered by a sliding dust cover. IP65 waterproof according to NEMA 4.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
DishGlass fibre reinforced polyamide (PA6GF30)
HandleZinc die cast, black powder coated
InsertZinc die cast, chrome plated
Pivot shaftZinc die cast, zinc plated
Notes

The lift handle fits into a cut out similar to Version C, but with an additional Ø 4,5 mm hole on top. Suitable for door thickness 0,8-3,5 mm. When viewed from the outside, the right hinged version has a pivot shaft that rotates counter-clockwise when opening.

The left hinged version rotates clock-wise when handle is opened.

StandardsIP65
NEMA 4
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAA-BBCDEF-GG)
AAAA Type
1510Flat rod system
1511Cam and round rod system
BB Insert / Cylinder
01Square 6
03Square 7
05Square 8
07Square 8 / slotted
11Square 8 / Recessed
14Triangle 7
15Triangle 8
16Triangle 10
22Double Bit 3
24Double Bit 5
26Slotted
29Slotted, recessed
32Hexagon 11
34Recessed hexagon 8
35Recessed hexagon 10
36Recessed hex 8/3mm pin
80Keyed to differ
81Keyed alike IL101
82Keyed alike IL0333
83For profile cylinder
84For Oval Cylinder
90Push button
C Surface treatment insert
0For cylinder and push-button versions
2Chrome plated
6Black powder coated
D Protection degree
5IP65
E Surface treatment handle
6Black powder coated
9Silver powder coated
F Model
0For right hinged door
1For left hinged door
GG
00
