Rod Guides

Index Code:
2-570

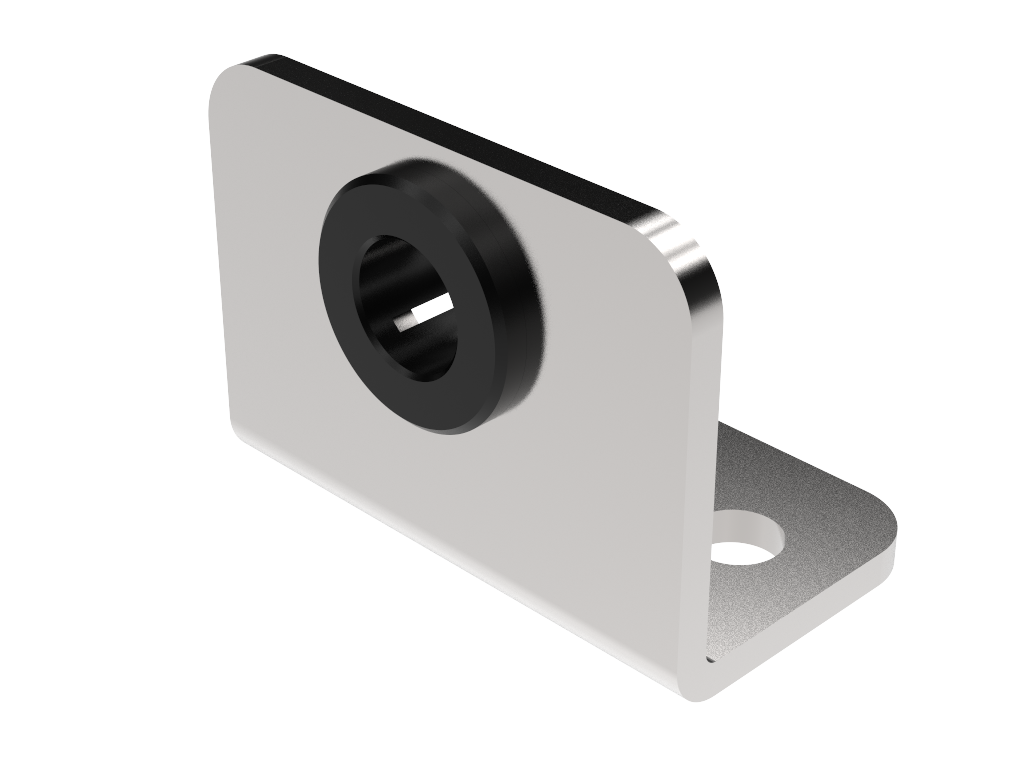

Rod guide supplied with polyamide bushing, for Ø 8 or Ø 10 mm round rods. For screw- or weld-on mounting. Polyamide bushing for low friction and silent movement of the rod.

A in the drawing is the distance between the inside face of the door and the rod.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
BushingGlass fibre reinforced polyamide (PA6GF30)
BracketSteel, zinc plated
Choose CAD format here:

To download CAD-Files for this product
1. Select CAD-format
2. Click the green cube icon to generate CAD-Files
3. Wait until the download symbol is completed
4. Click the download symbol to download

Download here:
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
* Custom lengths and are available on request only.
