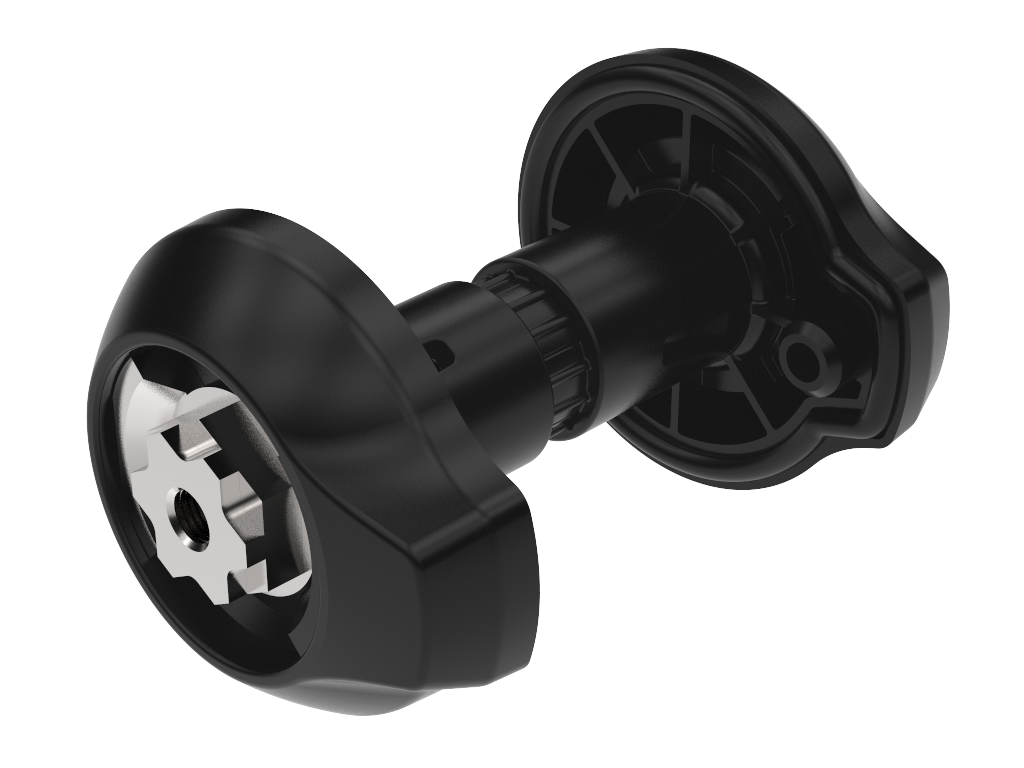

Klima-flex 2 Latch Unit
Index Code:2-315c
Industrilas Klima-flex™ 2 has patented technology that allows for quick mounting in double-skinned doors. When you turn the screw, expanding legs are engaged and fix both door skins from the inside.
Both inside and outside handles can be mounted onsite and you can add a rod link or safety catch with no changes to the latching unit. The use of roller cams reduces the friction in the latching operation and increase the gasket compression.
| Latching unit | Zinc, zinc plated and glass fibre reinforced Polyamide (PA6GF30), black |
|---|---|
| Screw | Steel, zinc plated |
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Standards | VDI 6022 |
|---|---|
| Notes | Cover plug is used to cover latching point when handle is not used. Small hole towards hinge side of door. |
| Cutout | K-Flex 2 |
| Download PDF | 2-315c K2 assembly instruction.pdf |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
Door thickness tolerance ± 2,5 mm.
