Klima-flex 2 Rod Link
Index Code:2-315f

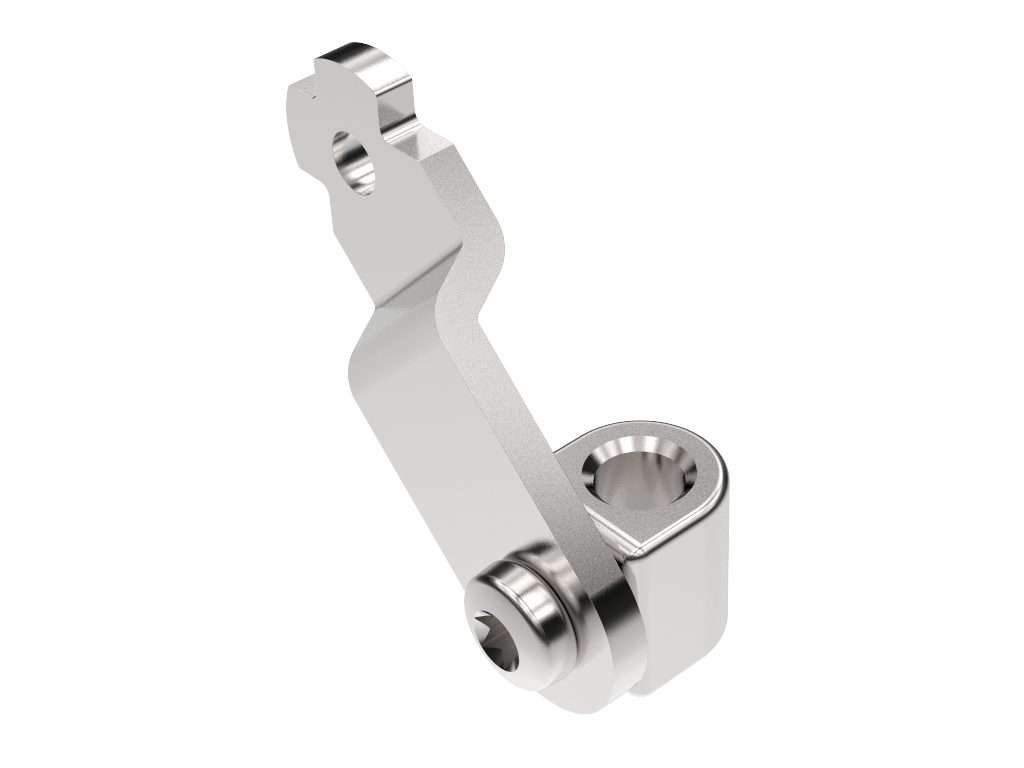

Rod link for Klima-flex 2. In the Klima-flex 2 system you can combine a safety catch, rod link and/or inside security handle with the inside roller cam.
With the use of rod links and interlink rods (Index Code 2-313a), you can also connect latching points to other latching points, allowing you to operate several latching points with one handle.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Rod link | Steel, zinc plated |
|---|---|
| Rod connection | Zinc die cast, zinc plated |
| Screw | Steel, zinc plated |
| Standards | VDI 6022 |
|---|
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
