Handle rotation 90° in both directions

Single-Point Cams Classic SS 316

Index Code:
2-480

Single-point cams for use with housings with external limitation of rotation.

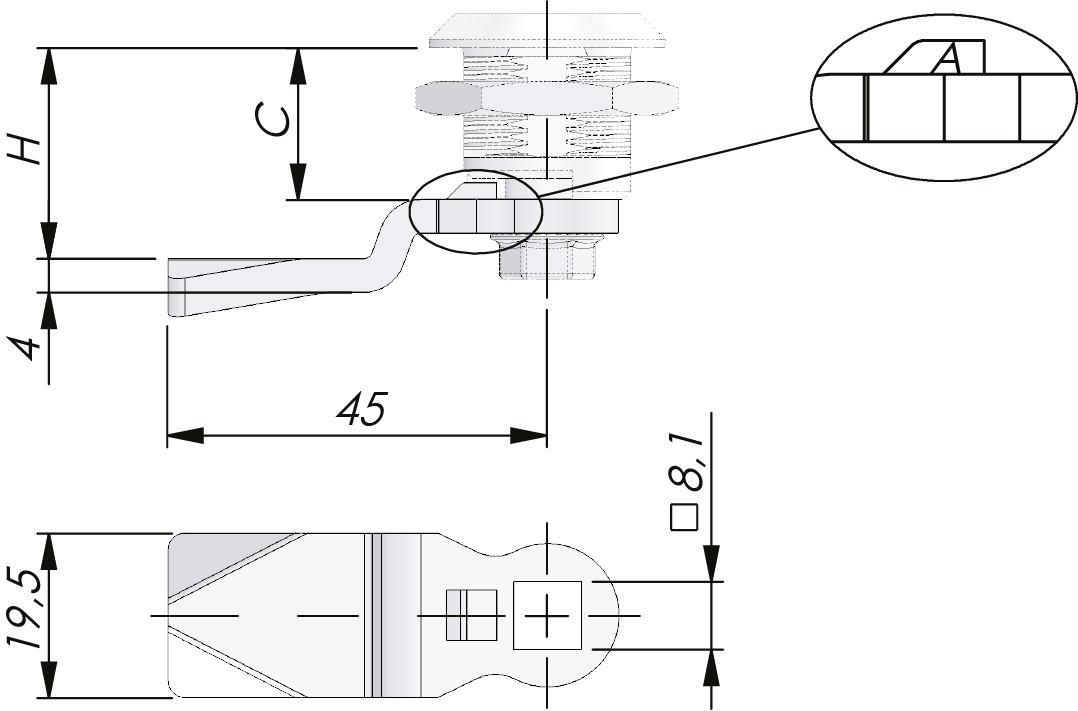

In the drawing, A = the projection, C = housing length, H = outside face to engagement point of cam.

Other lengths and versions available on request.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
CamStainless steel 316
Notes

H in mm when housing length C=12, 18, 30, 40, 45, 50, 56 or 60 mm.

Choose CAD format here:

To download CAD-Files for this product
1. Select CAD-format
2. Click the green cube icon to generate CAD-Files
3. Wait until the download symbol is completed
4. Click the download symbol to download

Download here:
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account

H in mm when housing length C=12, 18, 30, 40, 45, 50, 56 or 60 mm.
