Hooked Cams

Index Code:
2-520

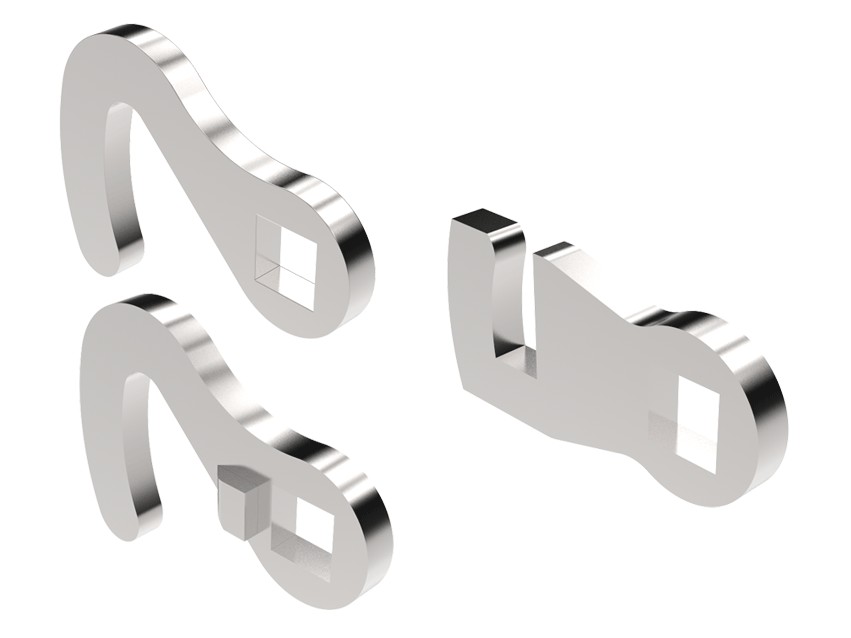

Hooked cams for quarter-turn latches, locks and handles. With projection for housings with external limitation of rotation, and without projection for housings with internal limitation of rotation.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
CamSteel, zinc plated
