Three-Point Cams Steel

Index Code:
2-491

Three-point cams for use with housings with internal limitation of rotation. Stroke: 20 mm. Supplied with E-clips.

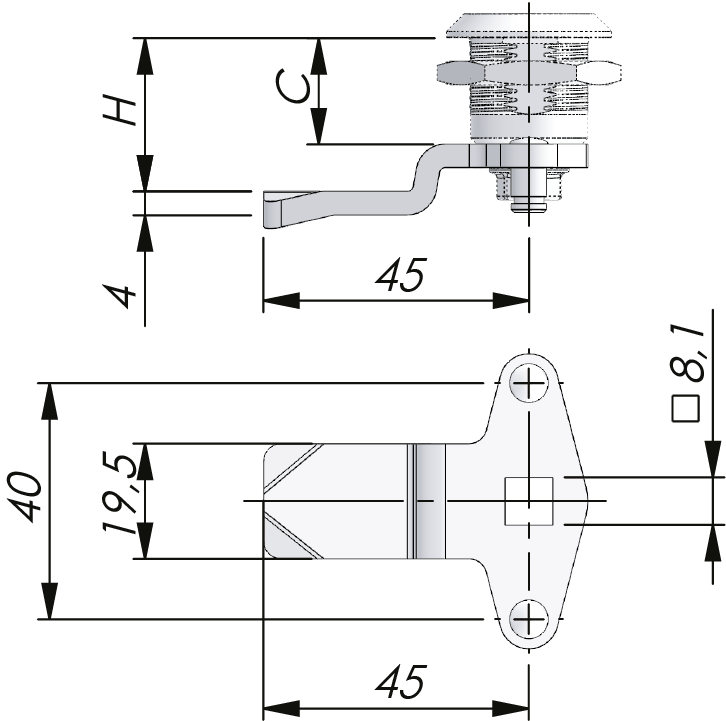

In the drawing, C = housing length, H = outside face to engagement point of cam.

Other lengths and versions available on request.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
CamSteel, zinc plated
Choose CAD format here:

To download CAD-Files for this product
1. Select CAD-format
2. Click the green cube icon to generate CAD-Files
3. Wait until the download symbol is completed
4. Click the download symbol to download

Download here:
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account

H in mm when housing length C=12, 18, 30, 45 or 56 mm.
