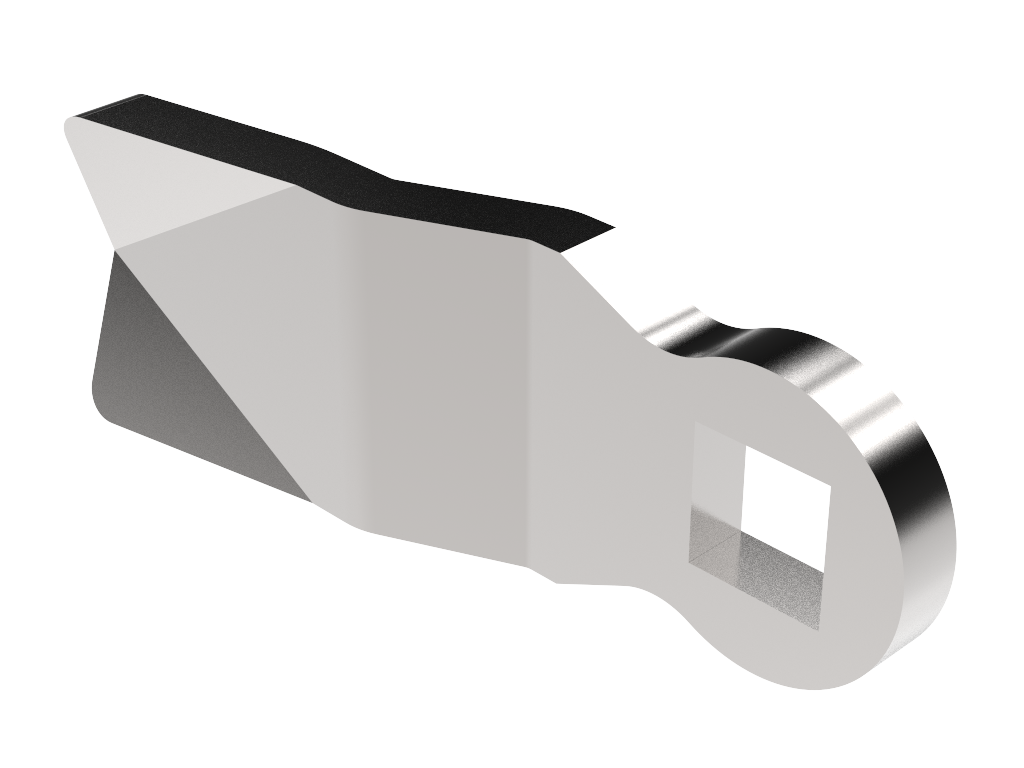

Single-Point Cams Steel

Index Code:
2-481

Single-point cams for use with housings with internal limitation of rotation.

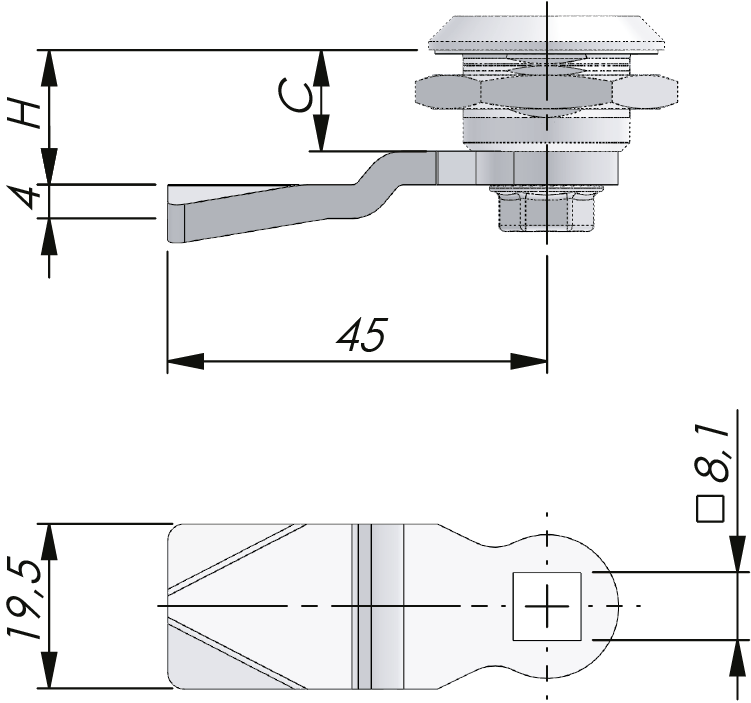

In the drawing, C = housing length, H = outside face to engagement point of cam.

Other lengths and versions available on request.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
CamSteel, zinc plated
NotesH in mm when housing length C=12, 18, 30, 35, 45 or 56 mm.
