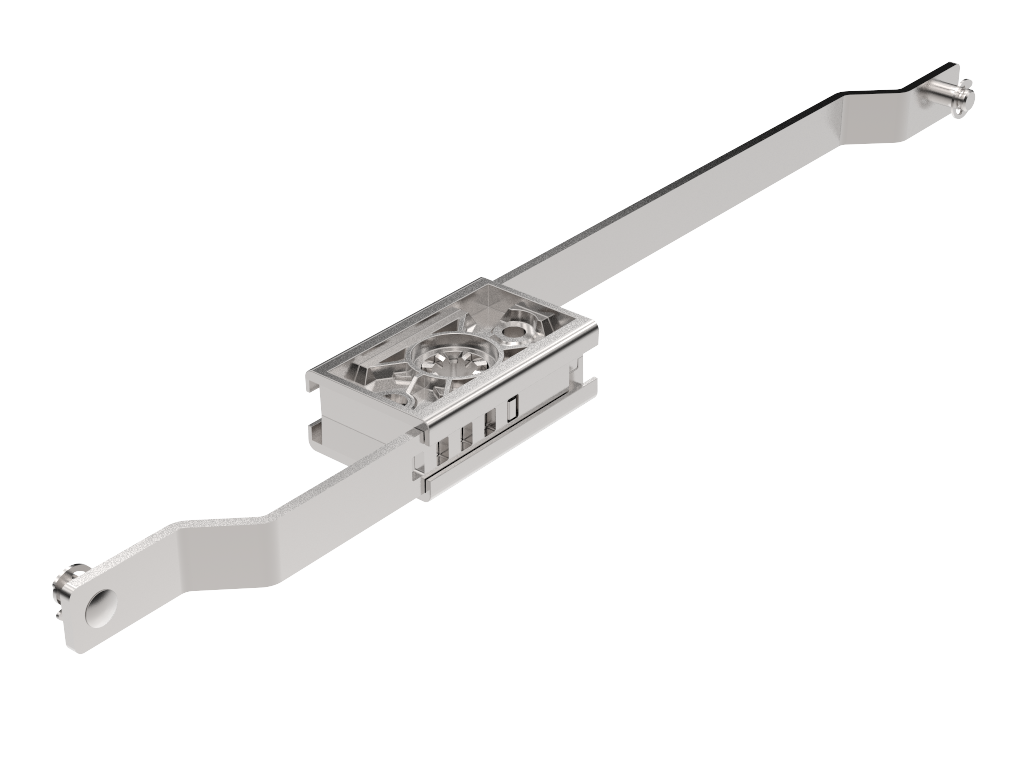

Vision Inside Classic

Index Code:
1-008.21

The system is mounted/installed inside the sealing area. When closing the swing handle, the upper flat rod moves upwards and the lower rod moves downwards. For three-point locking, a standard cam can be used on the control mechanism with an adapter. Note that our latching rods fit both control mechanisms with E-clips and Quick-fit connectors. The flat rods are ordered separately.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Control mechanismZinc die cast, zinc plated, special surface treatment (passes 30 day salt-spray test according to ISO 9227, equivalent to ASTM B 117) or glass fibre reinforced polyamide (PA6GF30)
RodSteel, zinc plated
Notes

Flat rods are available on request only.
