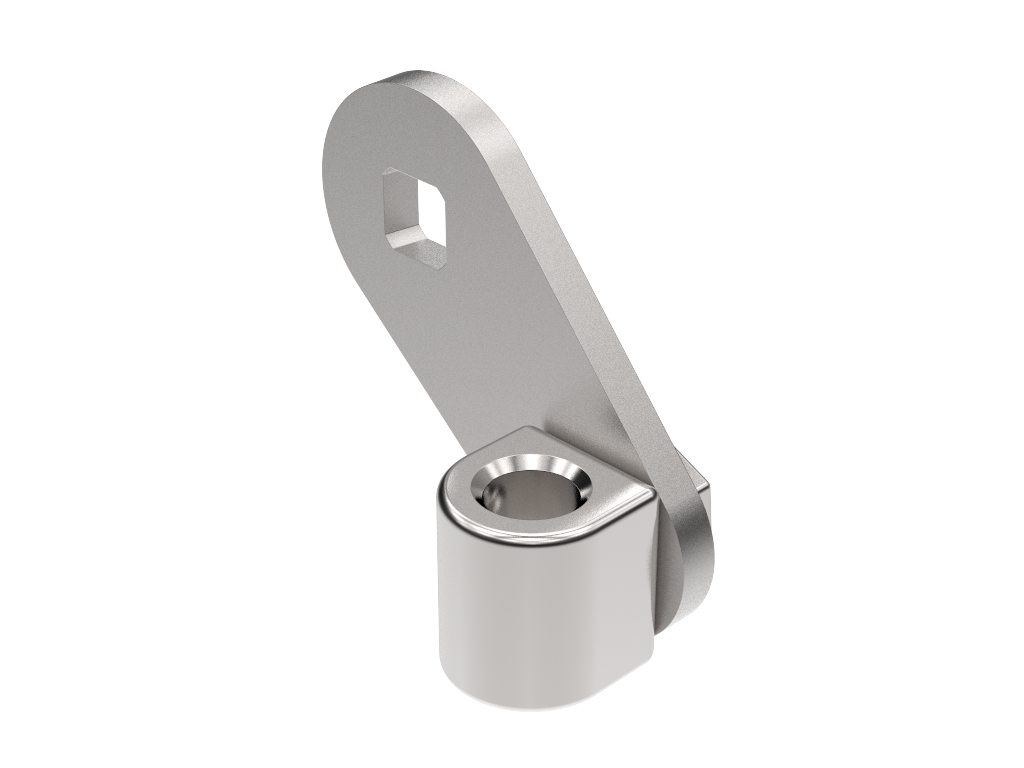

Klima-flex 1 Rod Links
Index Code:2-313b
The Klima-flex 1 Rod Links are used to operate two or more locking units with one handle. The handle is connected to interlink rods and rod links, and since the rod link clamps the interlink rod, you can connect several latching units to one handle.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Link | Steel, zinc plated or stainless steel 304 |
|---|---|
| Rod connection | Zinc die cast, zinc plated or stainless steel 303 |
| Screw | Steel, zinc plated or stainless steel 304 |
| Standards | VDI 6022 |
|---|
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
