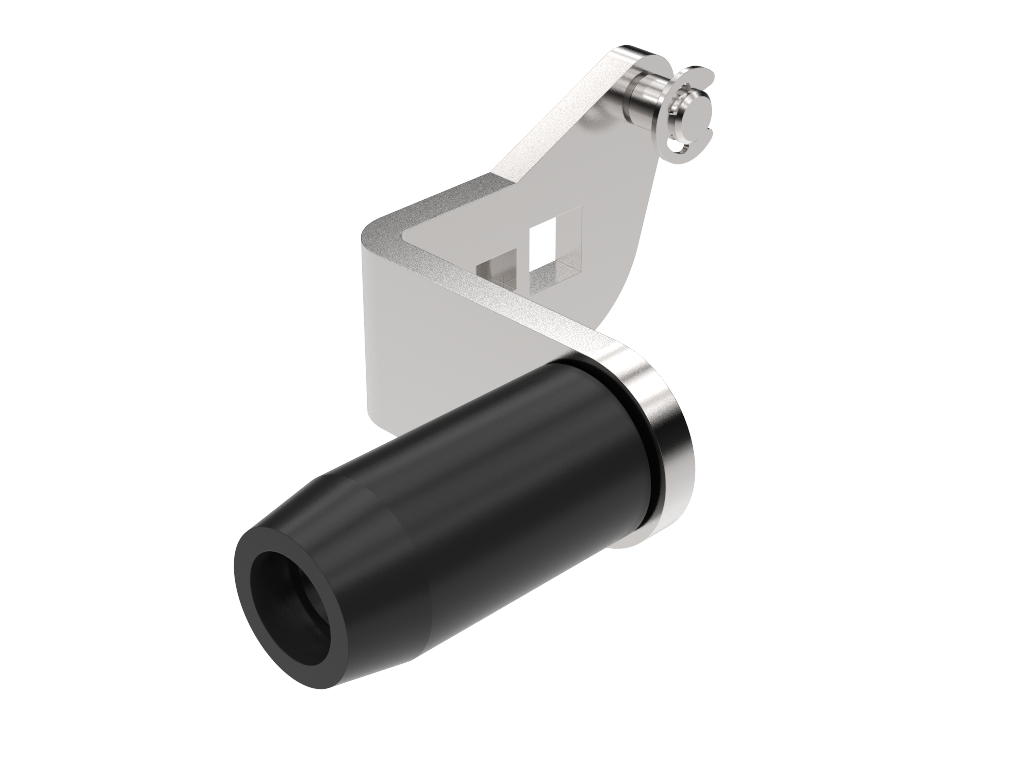

Three-Point Roller Cams
Index Code:2-500b

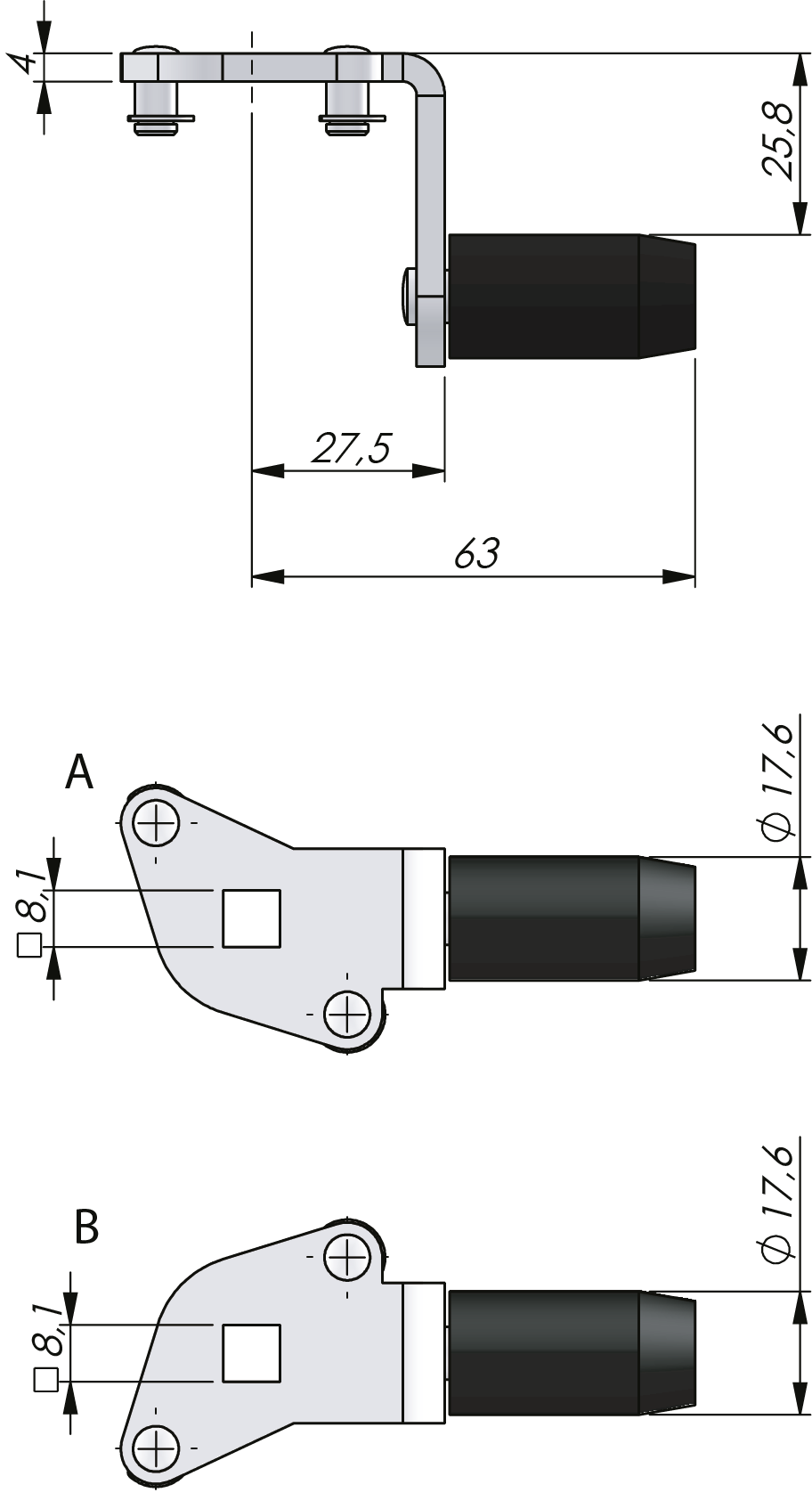

Roller cam for three-point latching systems with rods. Can remotely operate additional roller cams from a single handle or quarter-turn latch. Supplied with E-clips. Version A without projection is shown in the drawing.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Cam | Steel, passivated |
|---|---|
| Roller | Glass fibre reinforced polyamide (PA6GF30) |
| Shaft and E-clip | Steel, zinc plated |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
