Klima-flex 1 Roller Cams
Index Code:2-312cd

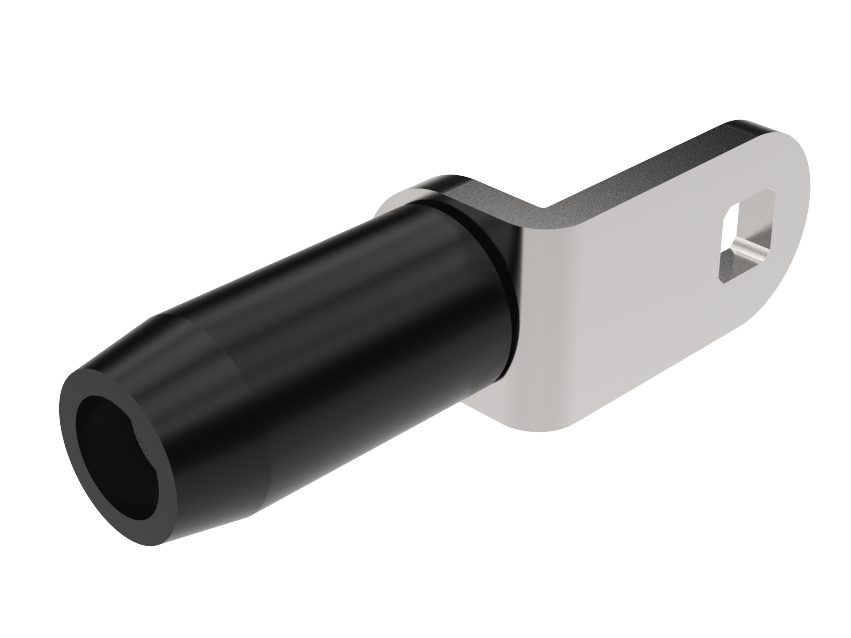

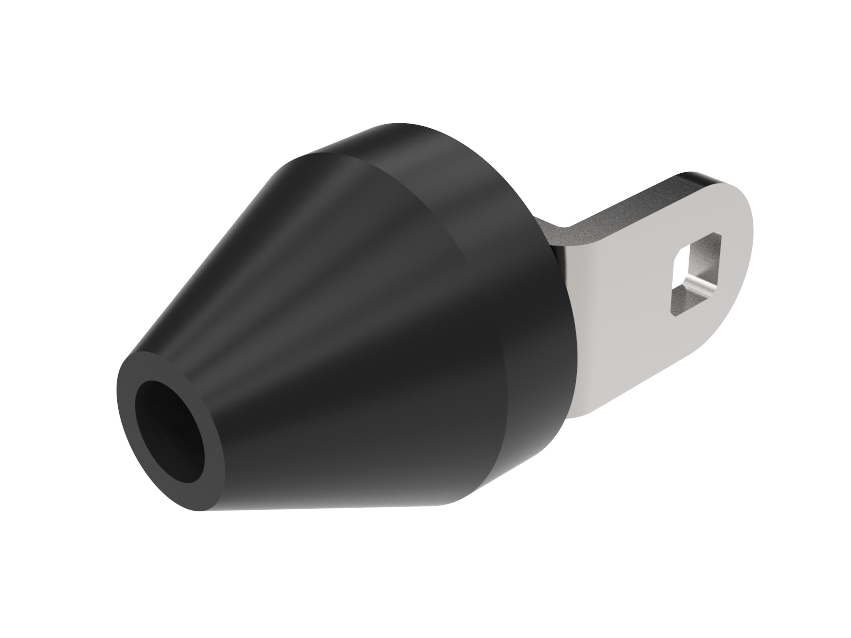

Stainless steel 304 roller cams for Klima-flex 1. The Klima-flex system is designed for quick and easy mounting. Roller cams reduces the friction in the latching operation and increase the gasket compression.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Roller cam | Stainless steel 304 and glass fibre reinforced Polyamide (PA6GF30), black, or stainless steel |
|---|
| Standards | VDI 6022 |
|---|
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
