Vision Three-Point cams Steel
Index Code:1-008.51

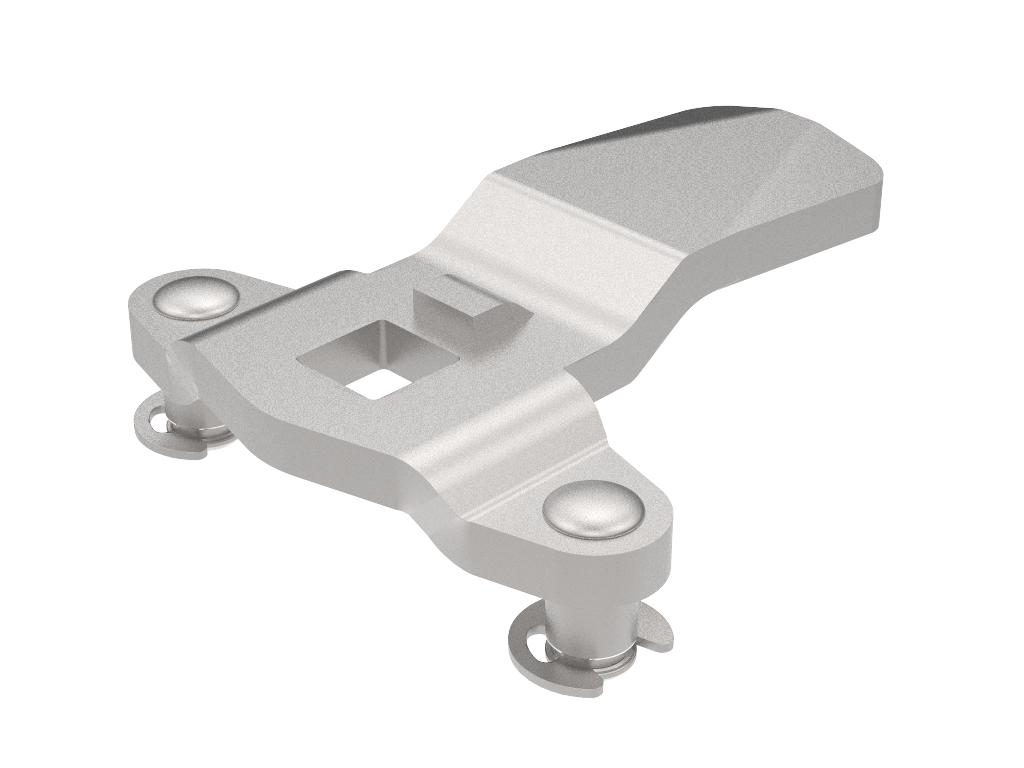

Three-point cams with projection for swing handles. Stroke: 20 mm. Supplied with E-clips. In the drawing and table below, A is the inside face to engagement point of cam.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Cam | Steel, zinc plated |
|---|
| Notes | Please note that all cams with dimension A is less than 16 mm can only be used in combination with swing handles (see product ID 1-010 and 1-020). |
|---|
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
* P/N 2321S09P is with straight cam.
