Vision Swing Handle for oval cylinder

Name: Vision Swing Handle for oval cylinder
Availability: OutOfStock

Index Code:

1-010

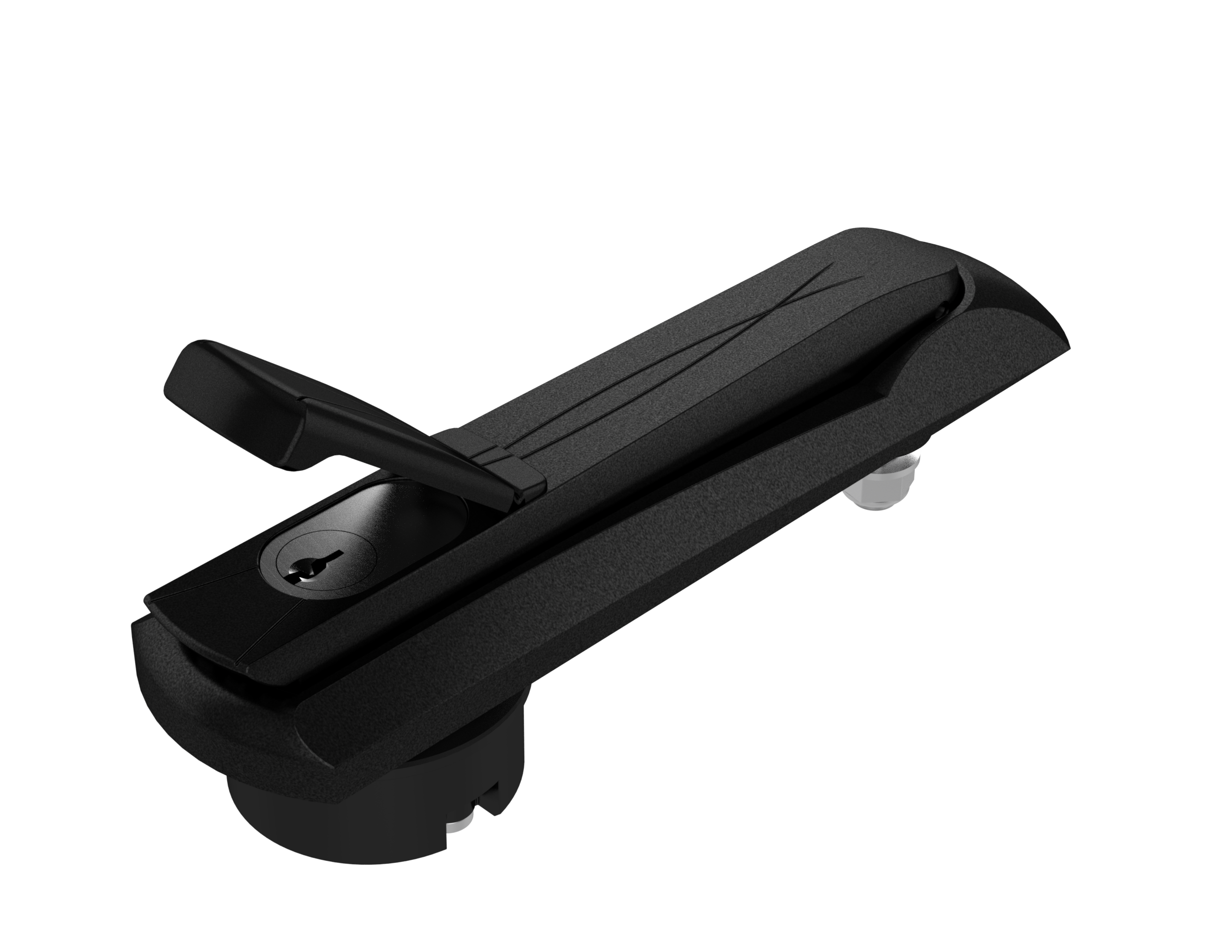

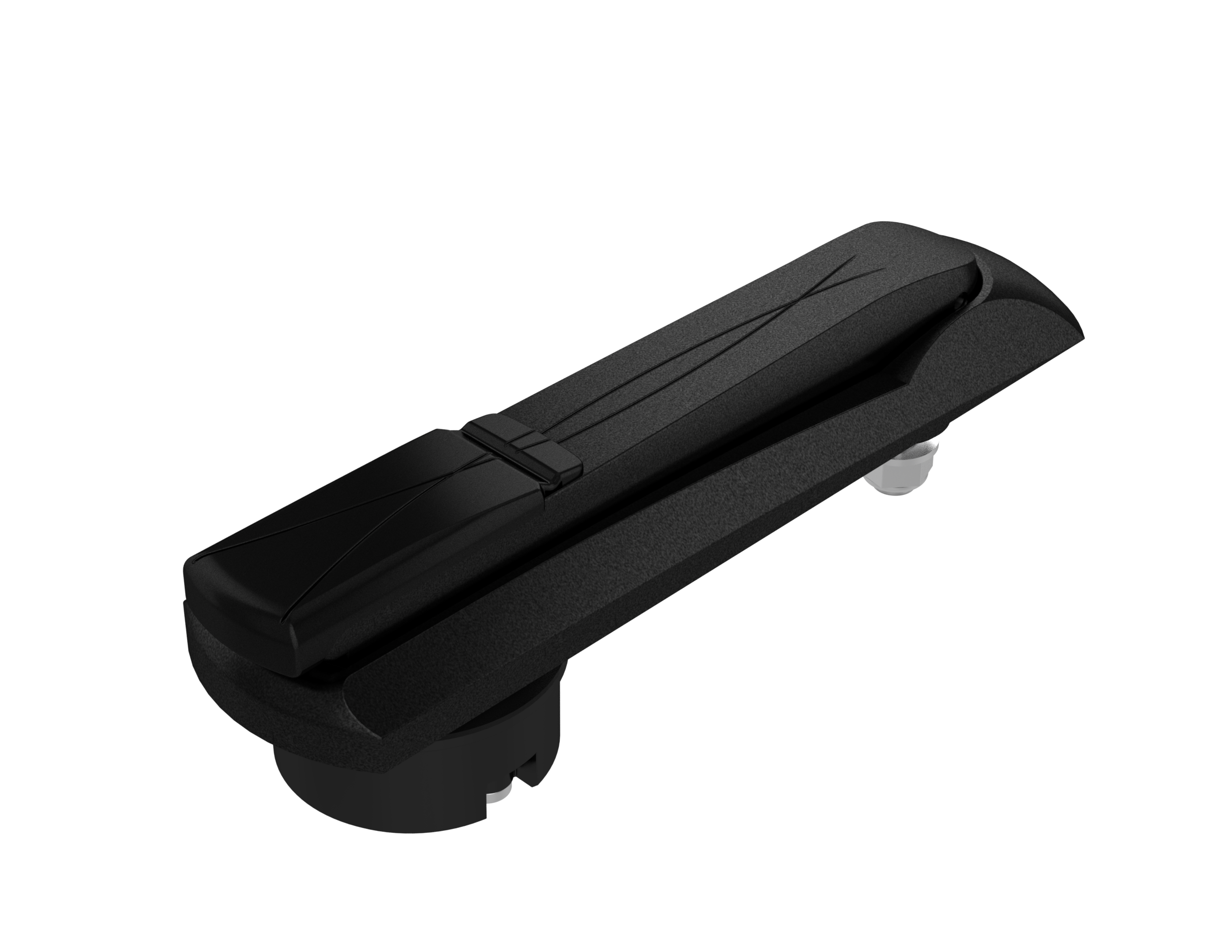

Swing handle for Scandinavian oval cylinder and cam. The handle is equipped with a soft cover to protect the cylinder from dust and rain. Cylinder is ordered separately.

DownloadsMaterialTechnical Information

Download PDF	Product Data Sheet
Download PDF	Recommended Tightening Torque

Bolt	Steel, zinc plated
Dish	Glass fibre reinforced polyamide (PA6GF30)
Dust cover	TPE
Handle	Glass fibre reinforced polyamide (PA6GF30)
Pivot shaft	Brass, zinc plated
Screw	Steel, zinc plated
Washer	Steel, zinc plated

Notes	A and L on the drawing refer to measurements on cams (Product ID 1-008.50).
