Quarter-Turn Vibration Resistant 18 mm

Name: Quarter-Turn Vibration Resistant 18 mm
Availability: OutOfStock

Index Code:

2-020

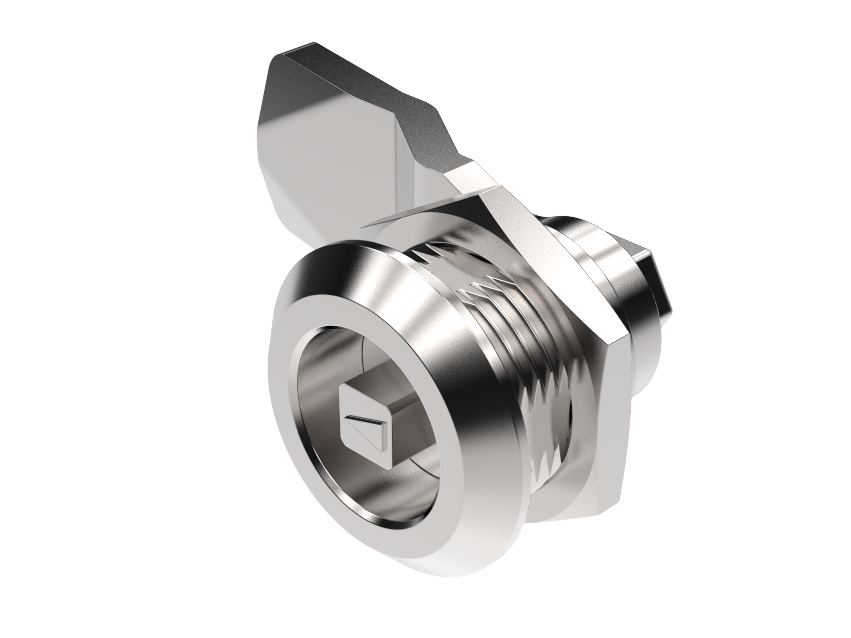

You design this vibration resistant quarter-turn latch to accommodate your needs by combining your choices of housing, nut, insert, washer, screw and cam. The latch can be delivered un-assembled, pre-assembled with enclosed cam or fully assembled.

The latch clicks to open and closed positions with good tactile feedback.

Vibration resistant according to DIN EN 61373. Available with IP66 protection and waterproof according to NEMA 4.

DownloadsMaterialTechnical Information

Download PDF	Product Data Sheet
Download PDF	Recommended Tightening Torque
Download PDF	Industrilas cut out versions

Housing	Zinc die cast, chrome plated, black texture powder coated, zinc plated with black PA6 collar or glass fiber reinforced Polyamide PA6
Insert	Zinc die cast, chrome plated or black texture powder coated
Cam and screw	Steel, zinc plated
Standard nut	Zinc die cast, zinc plated
Earthing nut	Zinc die cast, zinc plated
Washer	Stainless steel 304

Cutout	COMBI
Standards	IP66 NEMA 4 DIN EN 61373

To download CAD-files, you need an Industrilas account. It only takes a minute.

A product number is created by combining the figures in each column (AAAA-BCCDEF-HHLL)

AAAA	Housing
2412	Zinc, chrome plated A=28, B=4
2415	PA6, black A=28, B=4
2416	Zinc, black coated A=28, B=4
2422	Zinc, chrome plated A=32, B=6
2425	PA6, black A=32, B=6
2426	Zinc, black coated A=32, B=6
2442	Zinc, PA6 collar A=28, B=4

B	Nut
0	SN
1	EN
2	SN+TUF
4	EN+TUF

CC	Insert
01	Square 6
03	Square 7
05	Square 8
07	Square 8 / slotted
08	Square 8 / M6
11	Square 8 / recessed
14	Triangle 7
15	Triangle 8
16	Triangle 10
17	Triangle 10 / M5
18	Triangle 10 / M6
19	Triangle 10 / SEN
21	Triangle 10 - radius ES3
22	Double Bit 3
24	Double Bit 5
26	Slotted
28	Slotted with arrow
29	Slotted recessed
31	Hexagon 8,5
32	Hexagon 11
34	Recessed hexagon 8
35	Recessed hexagon 10
36	Recessed hex 8 / 3 mm pin
37	Solid plug
38	Stockholm Energy
39	Triangle 10 - radius

D	Surface - insert
2	Chrome
6	Black

E	Assembly
0	IP54 - not assembled
1	IP66 - not assembled
2	IP54 - enclosed cam
3	IP66 - enclosed cam
4	IP54 - assembled
5	IP66 - assembled
6	IP66 PUR - not assembled
7	IP66 PUR - enclosed cam
8	IP66 PUR - assembled

F	Cam
0	Steel

HHLL	H/L in mm
0000	No cam
0445	4 / 45
0645	6 / 45
0845	8 / 45
1045	10 / 45
1245	12 / 45
1445	14 / 45
1645	16 / 45
1845	18 / 45
2045	20 / 45
2245	22 / 45
2445	24 / 45
2645	26 / 45
2845	28 / 45
3045	30 / 45
3245	32 / 45
3445	34 / 45
3645	36 / 45
3845	38 / 45
4045	40 / 45
4245	42 / 45
4445	44 / 45
4645	46 / 45
4845	48 / 45
5045	50 / 45

SN = Standard nut. EN = Earthing nut

TUF = Assembled with TUF-lock screw to achieve DIN EN 61373

To fulfill DIN EN 61373 the latch can be supplied with screw with mechanical thread lock, see column B (Nut).

PUR-gasket can only be supplied on housings 2412-* and 2416-*.

	Single-Point Cams Steel (2-481)
	Three-Point Cams Steel (2-491)
	Multi-Point Cams for Rod Systems (2-510)
	Hooked Cams (2-520)

	Anti-Rotation Bracket (2-420)
	Finger Pulls and Dust Covers (2-590)

	Keys for Insert (2-372)
	Keys for Insert (2-380)
	Keys for Insert (2-370)
