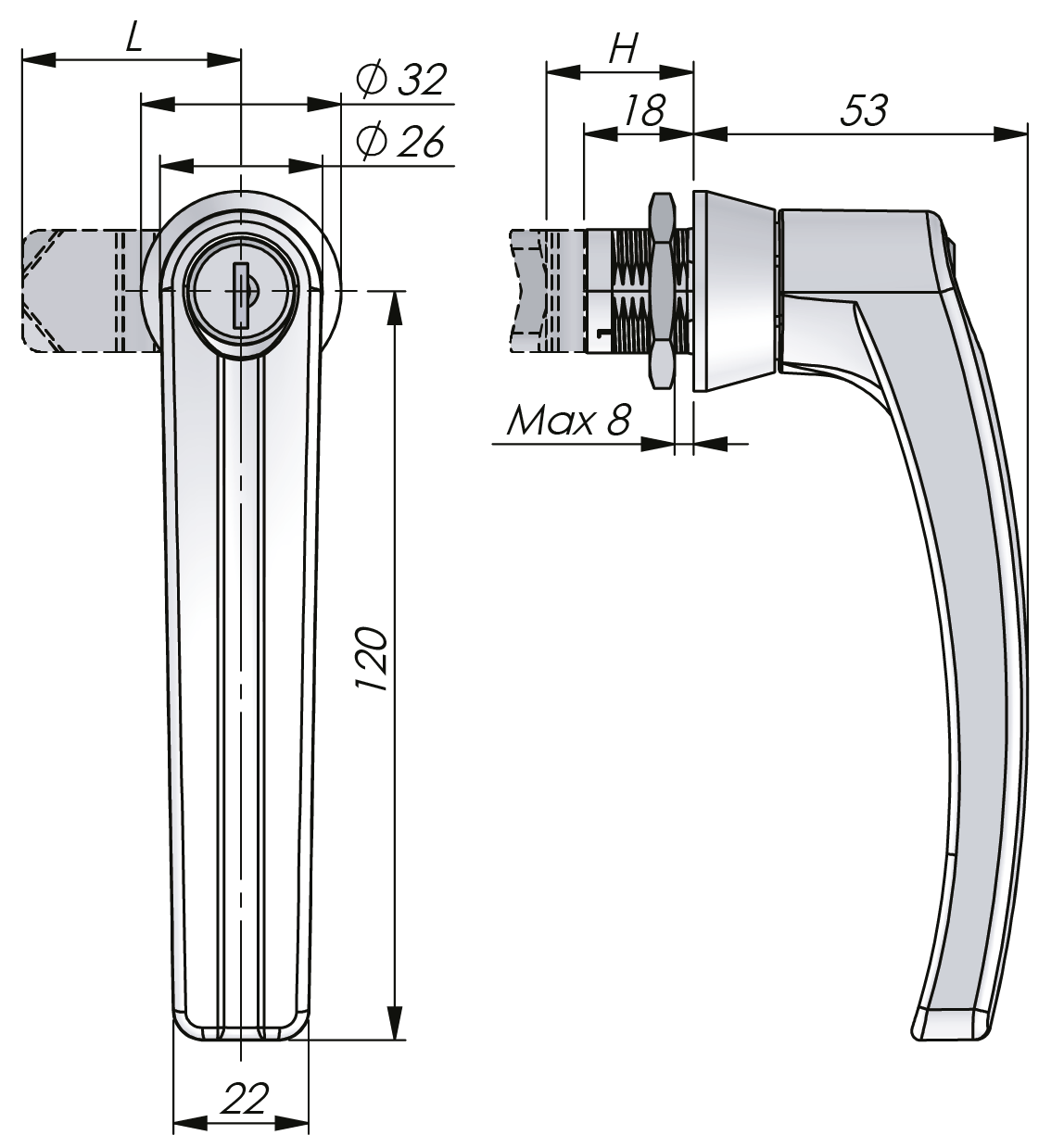

Quarter-Turn L-Handle 18 mm
Index Code:2-299

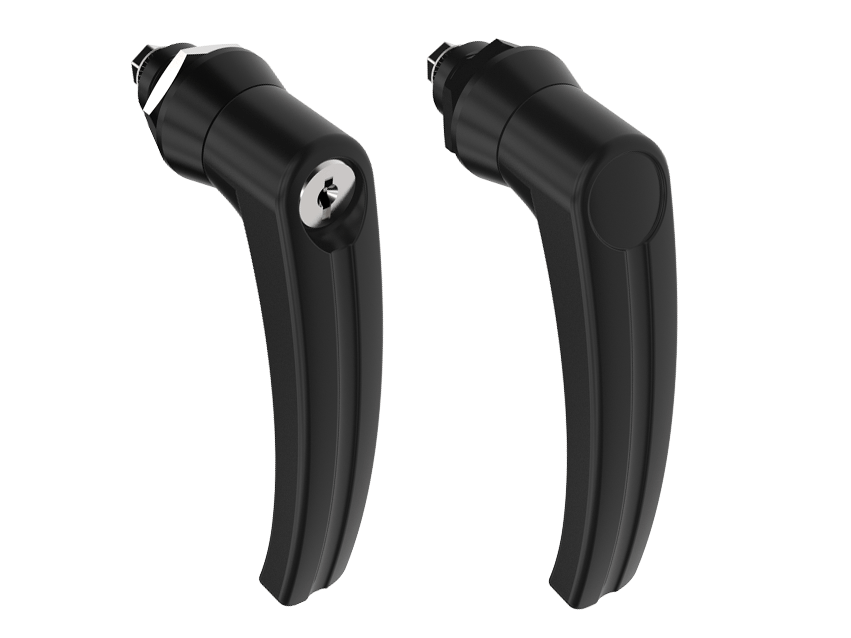

Quarter-turn L-handle in locking or non-locking version. Supplied with nut. Protection degree IP65.
The turning rotation may be programmed by setting the turning limiter in the bottom of the housing. This is however not needed when ordering this product assembled with cam.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Cam and screw | Steel, zinc plated |
|---|---|
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
| Handle | Zinc die cast, black or silver texture powder coated |
| Housing | Zinc die cast, black or silver texture powder coated |
| Nut | Zinc die cast, zinc plated |
| Standards | IP65 |
|---|
To download CAD-files, you need an Industrilas account. It only takes a minute.
A product number is created by combining the figures in each column (AAAAAA-B-HHLL)
|
|
|
RH = Right hinged door. LH = Left hinged door.
Keyed alike IL101 and IL0333 are supplied with two keys.
* = Master key system on request.
