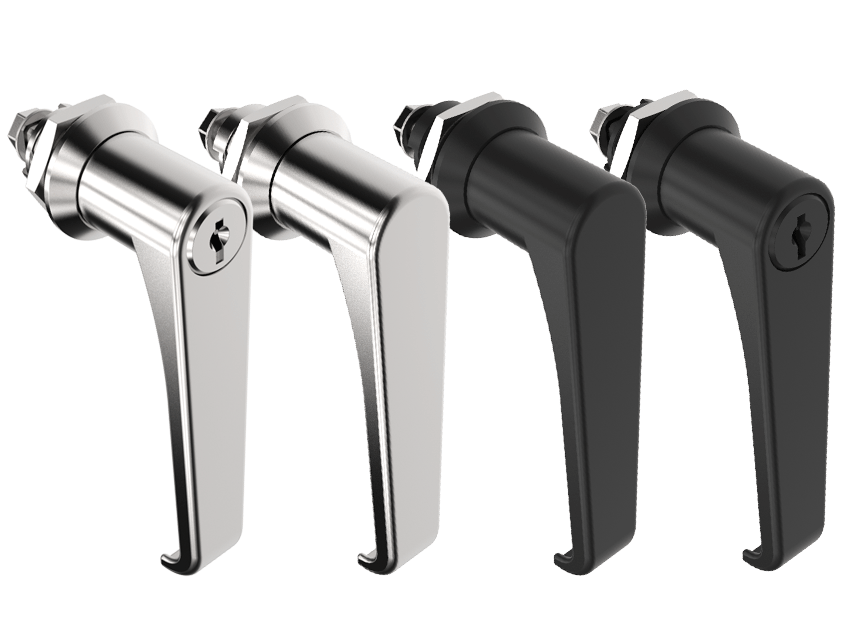

Quarter-Turn L-Handle 18 mm

Name: Quarter-Turn L-Handle 18 mm
Availability: OutOfStock

Index Code:

2-290

Quarter-turn L-handle in locking or non-locking version that has universal clockwise or counterclockwise rotation when opening and closing. Supplied with mounting nut and two keys. Protection degree IP65 and waterproof according to NEMA 4.

DownloadsMaterialTechnical Information

Download PDF	Product Data Sheet
Download PDF	Recommended Tightening Torque
Download PDF	Industrilas cut out versions

Cam and screw	Steel, zinc plated
Cylinder	Zinc die cast, stainless steel 304 cap and dust shutter
Earthing nut	Zinc die cast, zinc plated
Handle	Zinc die cast, chrome plated or black coated
Housing	Zinc die cast, chrome plated or black coated
Standard nut	Zinc die cast, zinc plated

Cutout	COMBI
Cylinder information	Master key system on request Supplied with two keys
Standards	IP65 NEMA 4

To download CAD-files, you need an Industrilas account. It only takes a minute.

A product number is created by combining the figures in each column (AAAAAA-B-HHLL)

AAAAAA	Cylinder	Surface treatment	Nut
261356	Non-locking	Chrome	Standard
261357	Non-locking	Chrome	Earthing nut
261556	Non-locking	Black	Standard
261557	Non-locking	Black	Earthing nut
261358	Keyed alike IL101	Chrome	Standard
261359	Keyed alike IL101	Chrome	Earthing nut
261558	Keyed alike IL101	Black	Standard
261559	Keyed alike IL101	Black	Earthing nut
261369	Keyed alike IL0333	Chrome	Standard
261370	Keyed alike IL0333	Chrome	Earthing nut
261569	Keyed alike IL0333	Black	Standard
261570	Keyed alike IL0333	Black	Earthing nut
261360	Keyed to differ *	Chrome	Standard
261361	Keyed to differ *	Chrome	Earthing nut
261560	Keyed to differ *	Black	Standard
261561	Keyed to differ *	Black	Earthing nut

B	Assembly
0	No cam
1	RH
2	LH

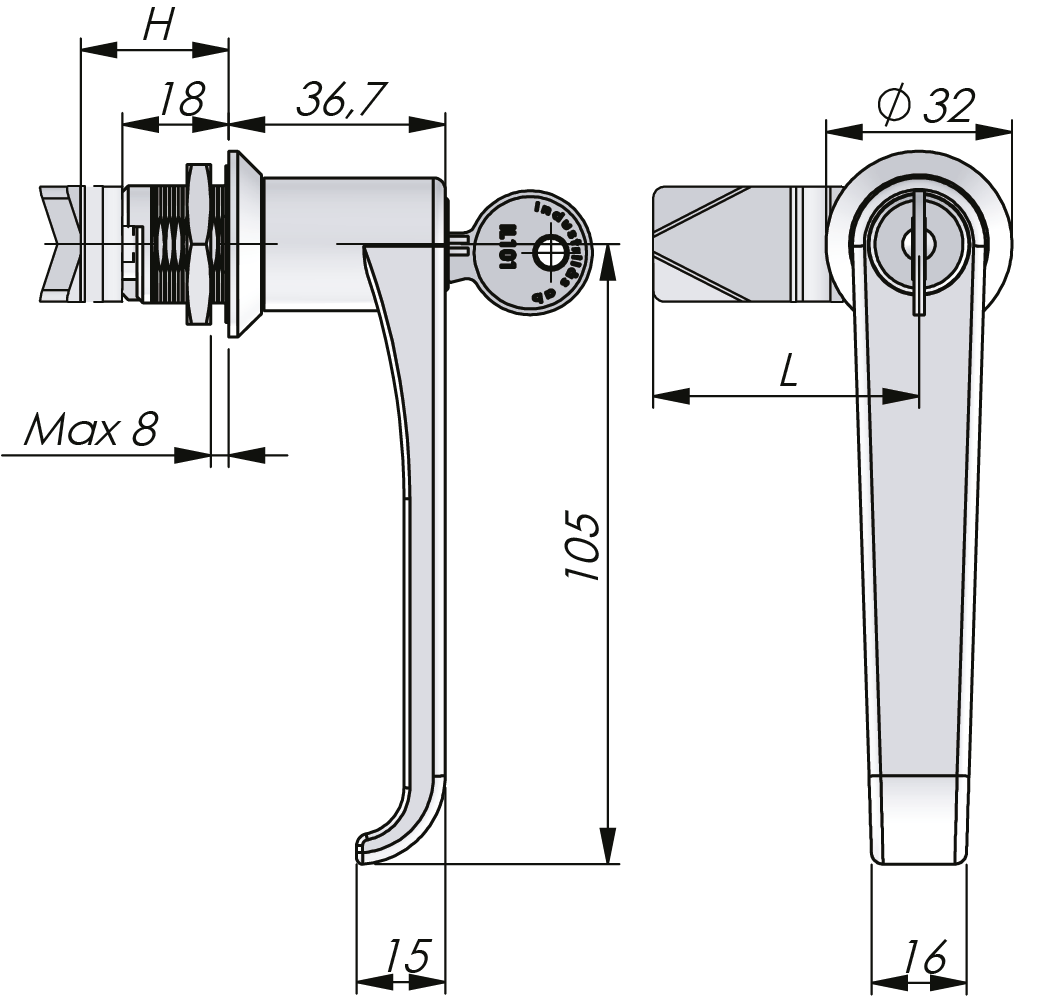

HHLL	H/L in mm
0000	No cam
0445	4 / 45
0645	6 / 45
0845	8 / 45
1045	10 / 45
1245	12 / 45
1445	14 / 45
1645	16 / 45
1845	18 / 45
2045	20 / 45
2245	22 / 45
2445	24 / 45
2645	26 / 45
2845	28 / 45
3045	30 / 45
3245	32 / 45
3445	34 / 45
3645	36 / 45
3845	38 / 45
4045	40 / 45
4245	42 / 45
4445	44 / 45
4645	46 / 45
4845	48 / 45
5045	50 / 45

RH = Right hinged door. LH = Left hinged door.
