6-170
Handle rotation 90° in both directionsOpening angle of hinges, applicable angle shown in numbersProfile cylinderRound cylinderBestLock cylinder

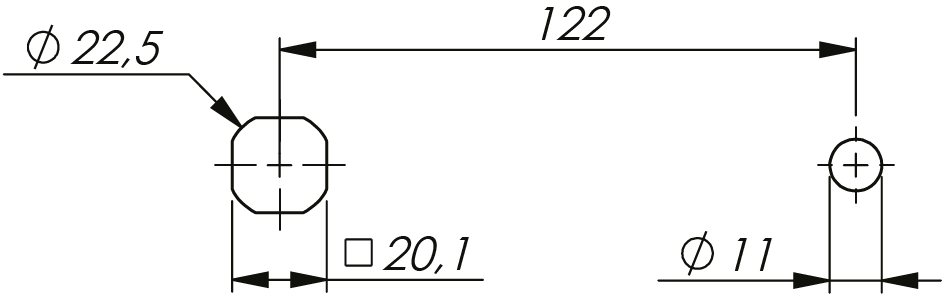

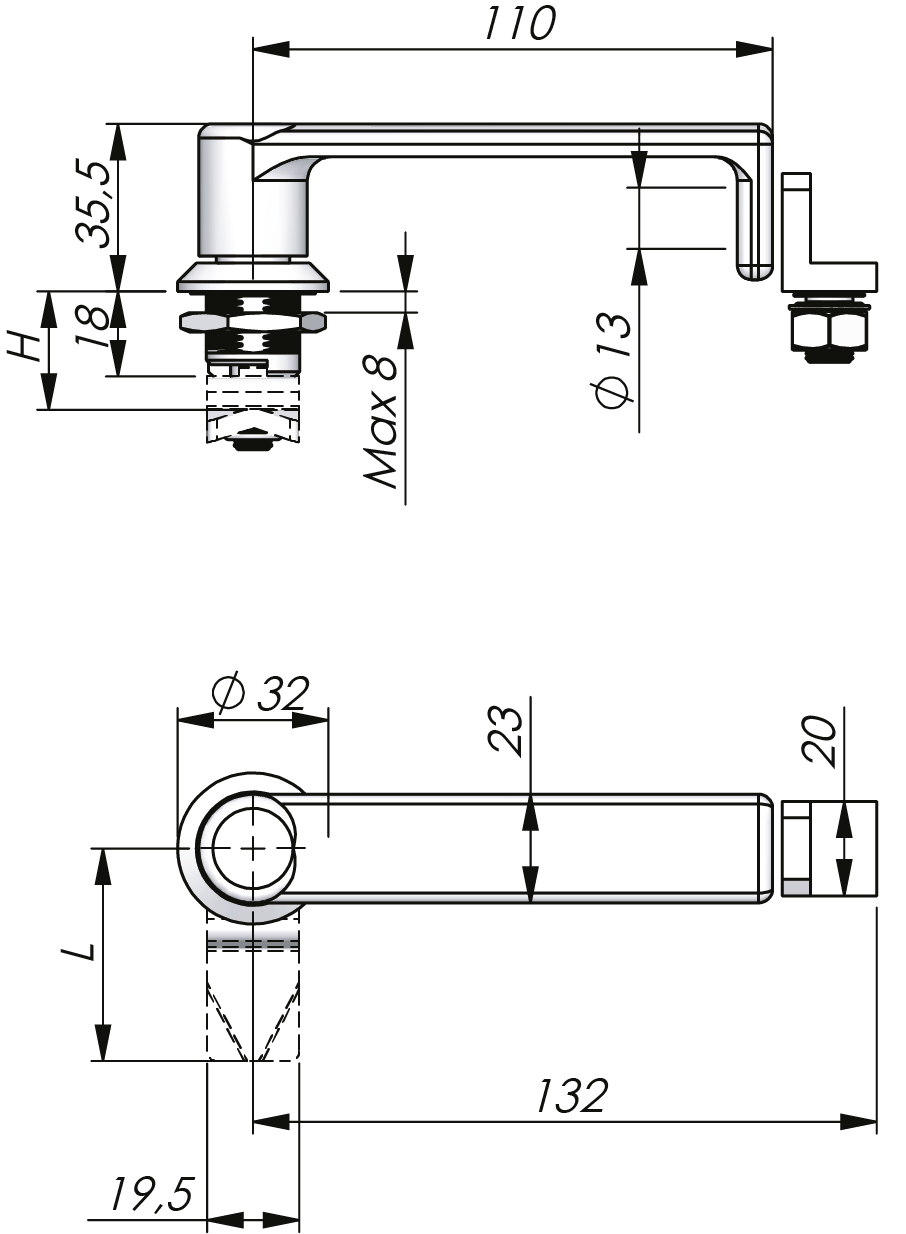

Quarter-turn L-handle Stainless Steel 18 mm

Index Code:
6-170

Padlockable L-handle in stainless steel 304 or acid-proof stainless steel 316. Universal clockwise or counter-clockwise rotation when opening or closing. Supplied with nut.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
HandleStainless steel 304 or 316
StandardsIP65
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAAAA-B-HHLL)
AAAAAA Material
263966Stainless steel with standard nut, all SS 304
269966Stainless steel with standard nut, all SS 316
B Assembly
0No cam
1RH
2LH
HHLL H/L in mm
0000No cam
04454 / 45
06456 / 45
08458 / 45
104510 / 45
124512 / 45
144514 / 45
164516 / 45
184518 / 45
204520 / 45
224522 / 45
244524 / 45
264526 / 45
284528 / 45
304530 / 45
324532 / 45
344534 / 45
364536 / 45
384538 / 45
404540 / 45
424542 / 45
444544 / 45
464546 / 45
484548 / 45
504550 / 45
