6-120a
Handle rotation 90° in both directionsOpening angle of hinges, applicable angle shown in numbersProfile cylinderRound cylinder

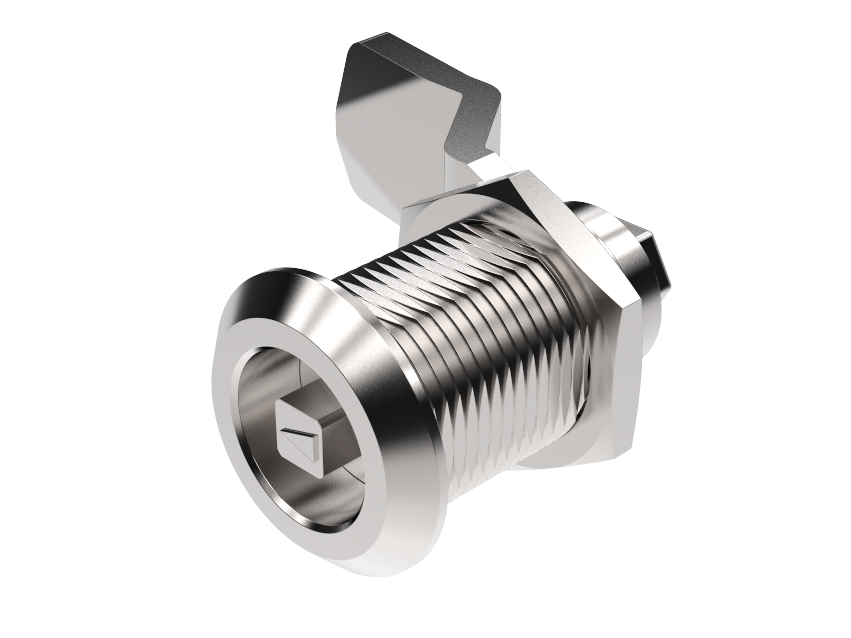

Quarter-turn Classic Stainless Steel 30 mm

Index Code:
6-120

Protection degree IP65 is achieved by an O-ring on the insert and a pour-in-place foamed polyurethane gasket on the housing.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
CamStainless steel 304 or 316
HousingStainless steel 303 or 316
InsertStainless steel 303 or 316
NutStainless steel 303 or 316
Notes

Protection degree IP65 is achieved by an O-ring on the insert and a flat gasket on the housing.

CutoutCOMBI
StandardsIP65
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account

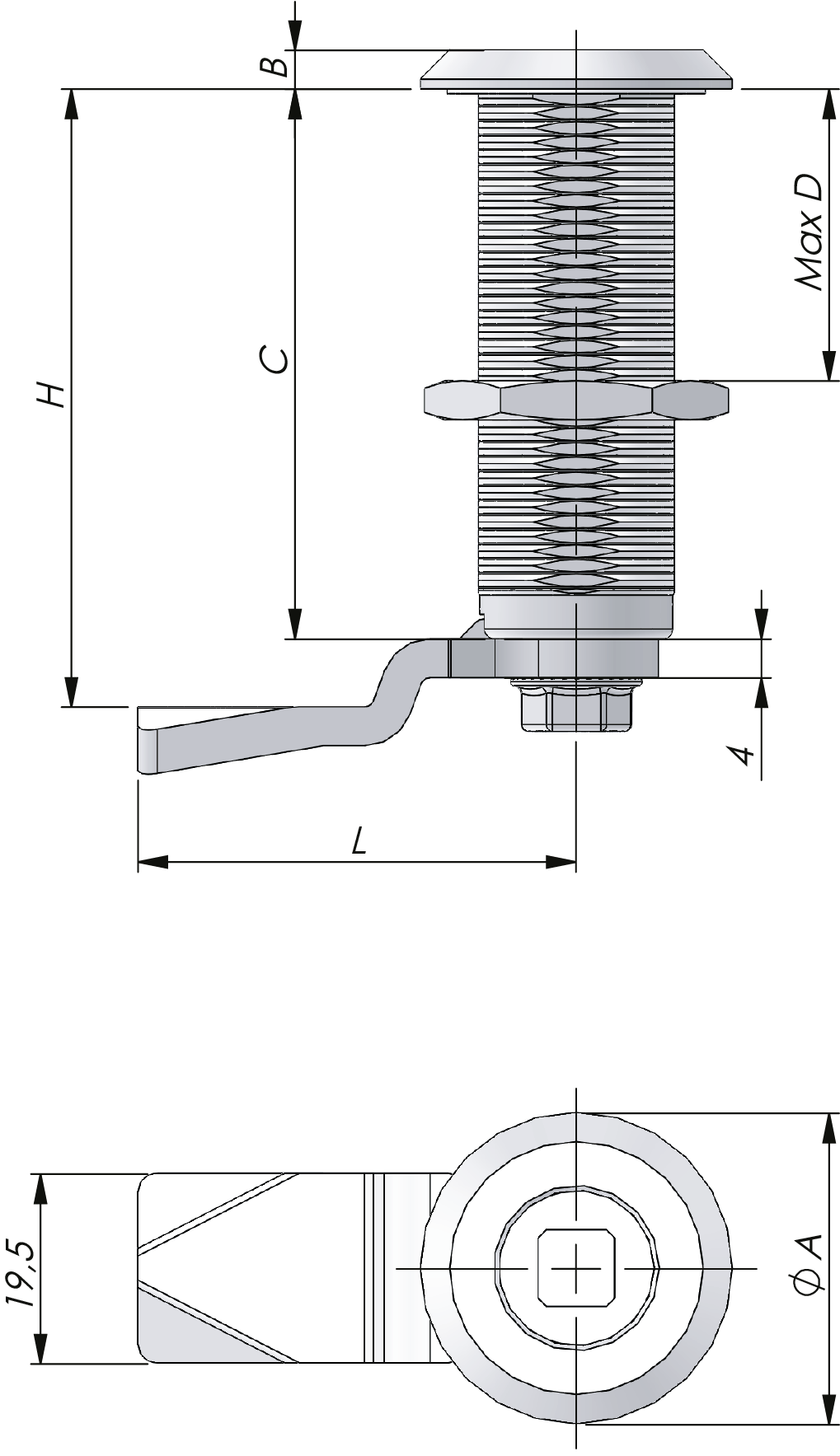

A product number is created by combining the figures in each column (AAAA-BCCDEF-HHLL)
AAAA Housing
2330A=28, B=3, C=30, D=21
B Nut
3SS 303
9SS 316
CC Insert
01Square 6
03Square 7
05Square 8
07Square 8 / slotted
08Square 8 / M6
11Square 8 / recessed
14Triangle 7
15Triangle 8
16Triangle 10
22Double Bit 3
24Double Bit 5
26Slotted
41Slotted recessed
D Material insert and housing
3SS 303
9SS 316
E Assembly
0IP54 - not assembled
1IP65 - not assembled
2IP54 - enclosed cam
3IP65 - enclosed cam
4IP54 - assembled
5IP65 - assembled
F Cam
3SS 304
9SS 316
HHLL H/L in mm
0000No cam
164516 / 45
184518 / 45
204520 / 45
224522 / 45
244524 / 45
264526 / 45
284528 / 45
304530 / 45
324532 / 45
344534 / 45
364536 / 45
384538 / 45
404540 / 45
424542 / 45
444544 / 45
464546 / 45
484548 / 45
504550 / 45
524552 / 45
544554 / 45
564556 / 45
584558 / 45
604560 / 45
624562 / 45
644564 / 45
664566 / 45
684568 / 45
704570 / 45
724572 / 45
744574 / 45
764576 / 45
784578 / 45
804580 / 45
824582 / 45
844584 / 45
864586 / 45
884588 / 45
904590 / 45
924592 / 45
