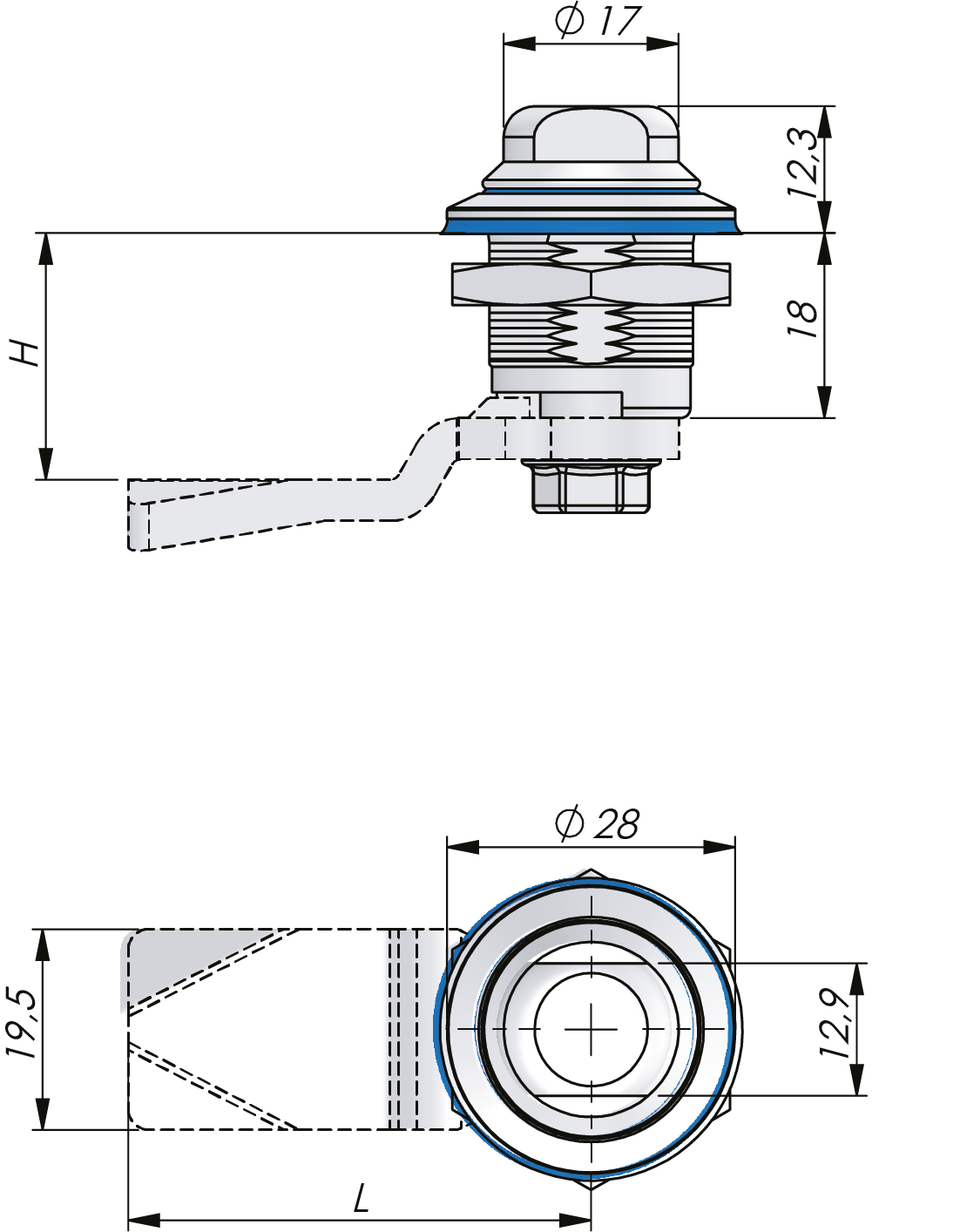

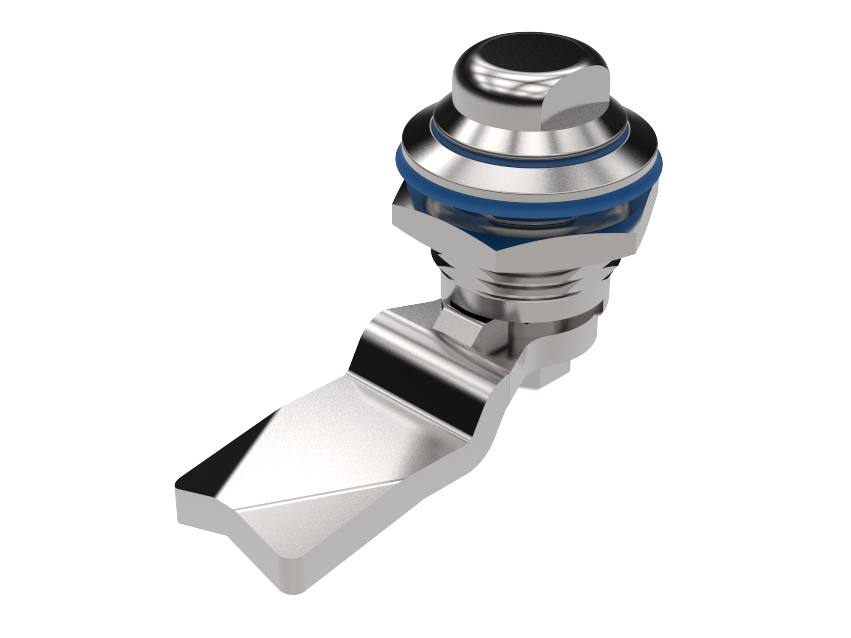

Quarter-turn Hygiene Latch Stainless Steel 18 mm
Index Code:6-147
This quarter-turn latch is corrosion resistant and manufactured to achieve hygiene requirements according to ISO 14159. The latch has smooth, curved surfaces and is manufactured from non-absorbent materials to simplify cleaning and disinfecting. It may thus be used in clean room environments or applications in industries that process food, pharmaceuticals, biotechnology, cosmetics and similar.
Sealed according to IP69K and waterproof according to NEMA 4.
Universal left and right mounting.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Cam | Stainless steel 304 or 316 |
|---|---|
| Housing | Stainless steel 303 or 316 |
| Insert | Stainless steel 303 or 316 |
| Nut | Stainless steel 303 |
| Sealing | INDUPUR 95A, RAL 5002 |
| Standards | IP69K NEMA 4 DIN EN ISO 14159 DIN EN 1672-2 UL50E |
|---|
To download CAD-files, you need an Industrilas account. It only takes a minute.
A product number is created by combining the figures in each column (AAAA-AAAAAA-HHLL)
|
|
