Trigger Latch Sealed
Index Code:2-397

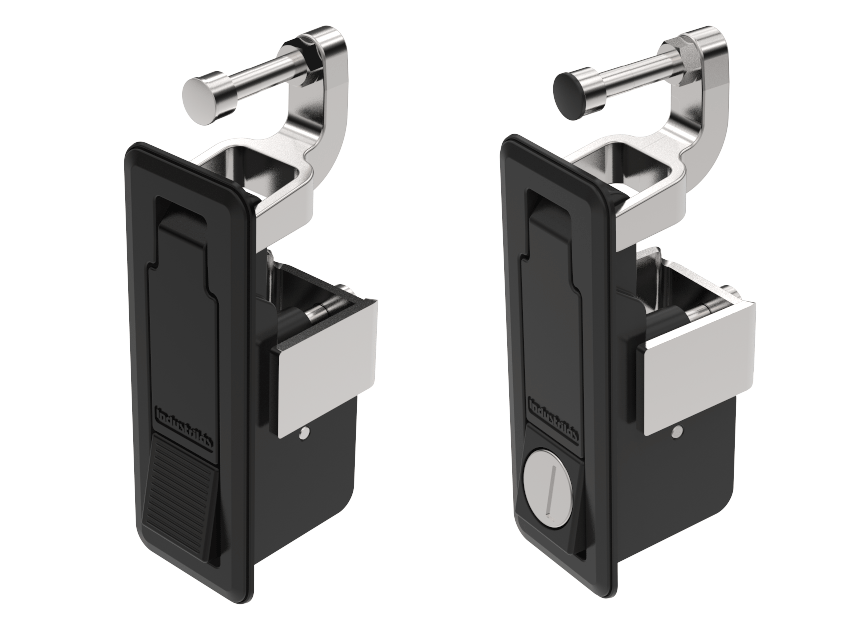

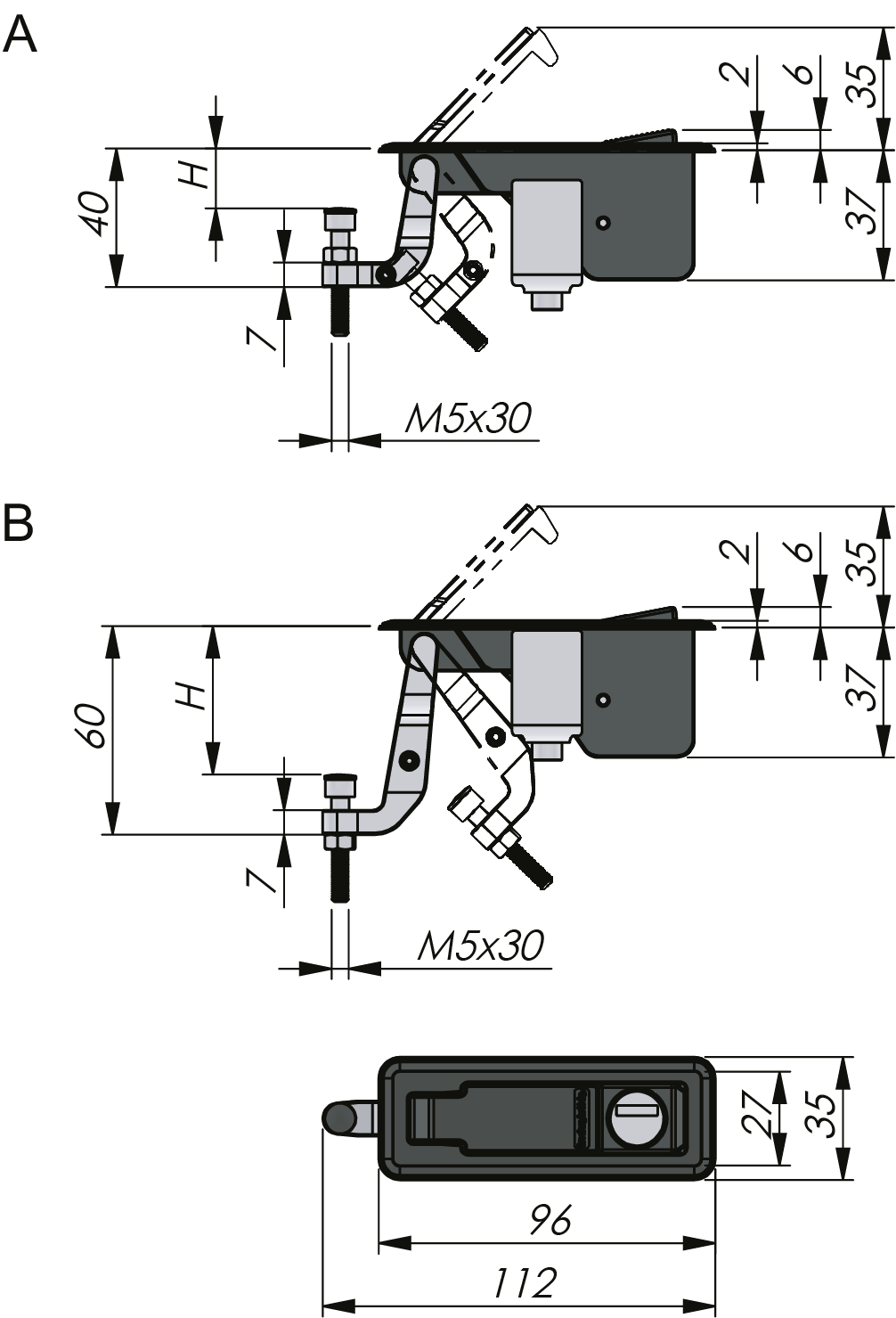

Flush trigger latch sealed against water and dust with raised push button and adjustable grip range. Suitable for a door thickness of 1-12 mm and available in locking or non-locking version. The latch is supplied with mounting bracket, screws and a TPE-gasket. It has a prepared area for your logotype at the front and another area at the back of the latch suitable for your part number or similar.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Latching arm inside sealed area | Zinc die cast, zinc plated |
|---|---|
| Gaskets | TPE |
| Handle | Zinc die cast, black powder coated |
| Housing | Zinc die cast, black powder coated |
| Mounting bracket | Stainless steel |
| Spring | Spring steel EN 1.4310 |
| Trigger | Zinc die cast, black powder coated |
| Nut | Stainless steel |
| O-ring | NBR |
| Screw | Stainless steel |
| Key extraction | Open / Closed |
|---|---|
| Cylinder information | Supplied with two keys |
| Standards | DIN EN 61373 |
