2-215
Tool operated insertPadlock loopUniversally right or left mountedLatch with compression function

Compression Handle 36-56 mm

Index Code:
2-215

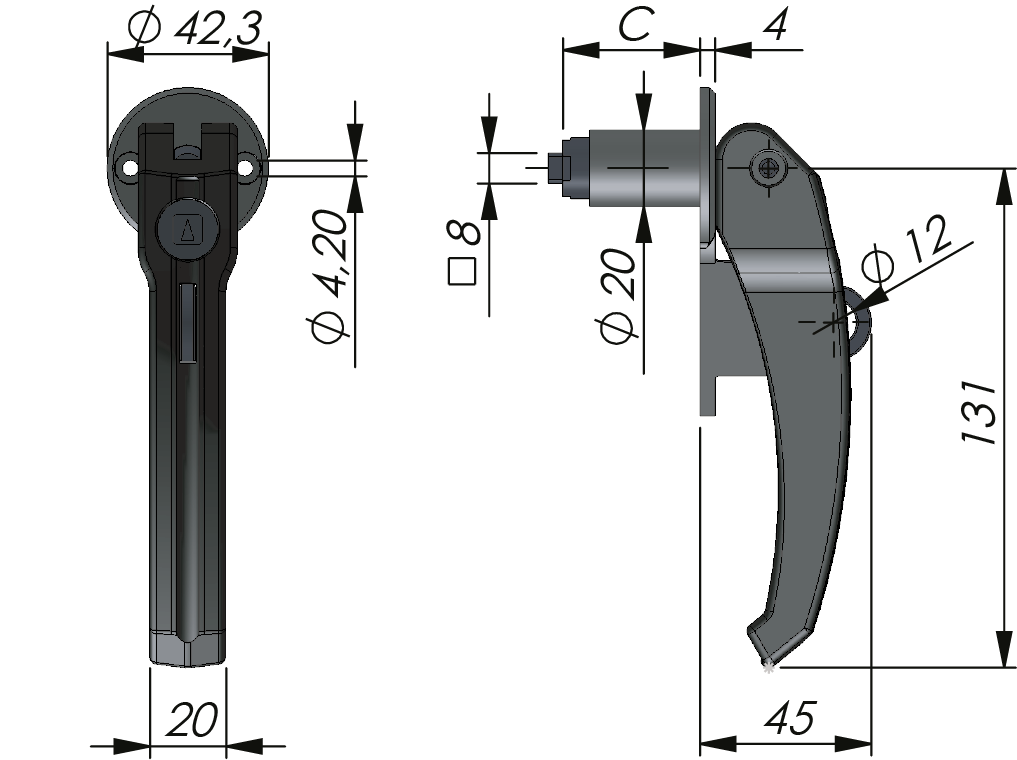

Padlockable compression handle with insert and 6 mm compression stroke. Spring loaded padlock loop retracts when not in use. Mounting with rivets or screws (not included). The C-dimension in the drawing is the compressed position.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
HandleGlass fibre reinforced polyamide (PA6GF30)
HousingZinc die cast, black coated
Insert, pin and padlock loopZinc die cast, black passivated
ScrewSteel, zinc plated
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAAAABB-CCCC)
AAAAAA Description
275011Handle
BB C=
3036 mm
4046 mm
5056 mm
CCCC Insert
1201Hexagon 11
1207Square 6
1208Square 7
1209Square 8
1210Square 8 / slotted
1212Triangle 7
1213Triangle 8
1214Triangle 10
1216Double Bit 3
1217Double Bit 5
1218Daimler Benz
1219Triangle 10 / SEN
1220Slotted
1221Recessed hexagon 10
1222Recessed hexagon 8
1223Hexagon 8,5
1224ES3
1241Slotted recessed
1247Recessed hexagon 8 / 3 mm pin
1248Slotted recessed square 8
