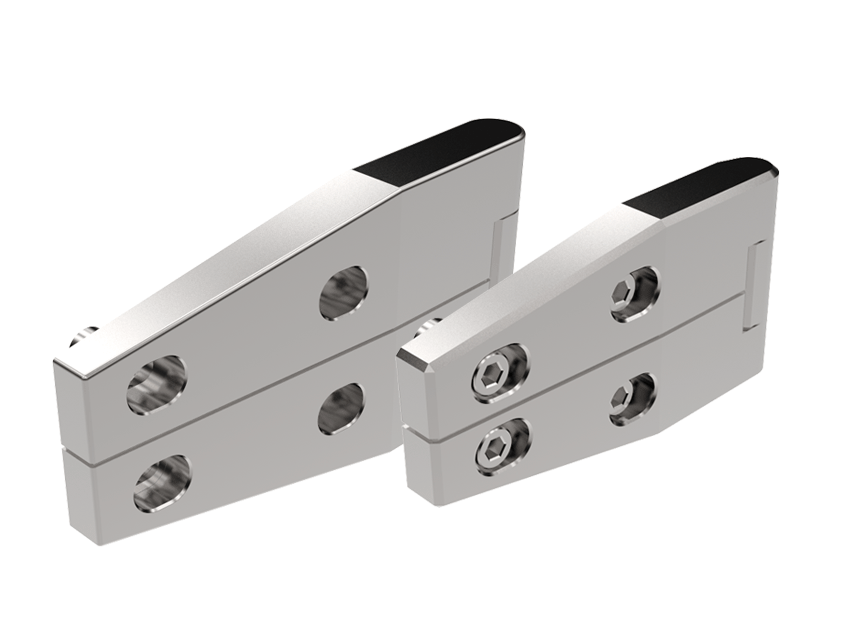

Klima-flex Adjustable 2D-Hinge 180° Stainless Steel
Index Code:6-355
Specifically designed hinges to simplify mounting on insulated (double skinned) doors. Adjustable in the X- and Y-axis by 3 mm and with opening angle 180°. Supplied with mounting plate.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Hinge | Stainless steel 304 |
|---|---|
| Mounting plate | Stainless steel 304 |
| Pin | Stainless steel 304 |
| Notes | On request this hinge may also be delivered in acid-proof stainless steel 316 and acid-proof stainless steel 316L for welding. |
|---|
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
