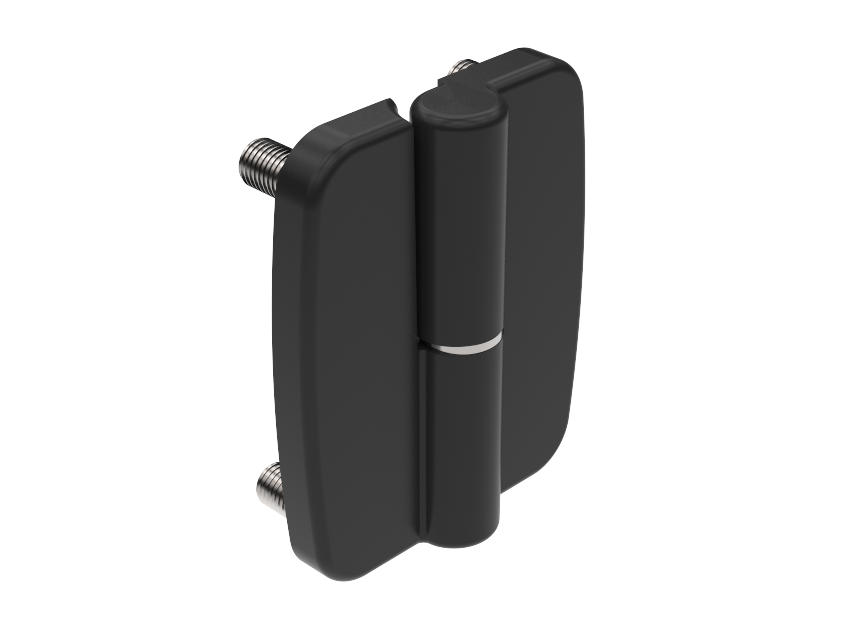

External Lift Off Hinge 80x65 mm 180°
Index Code:3-413

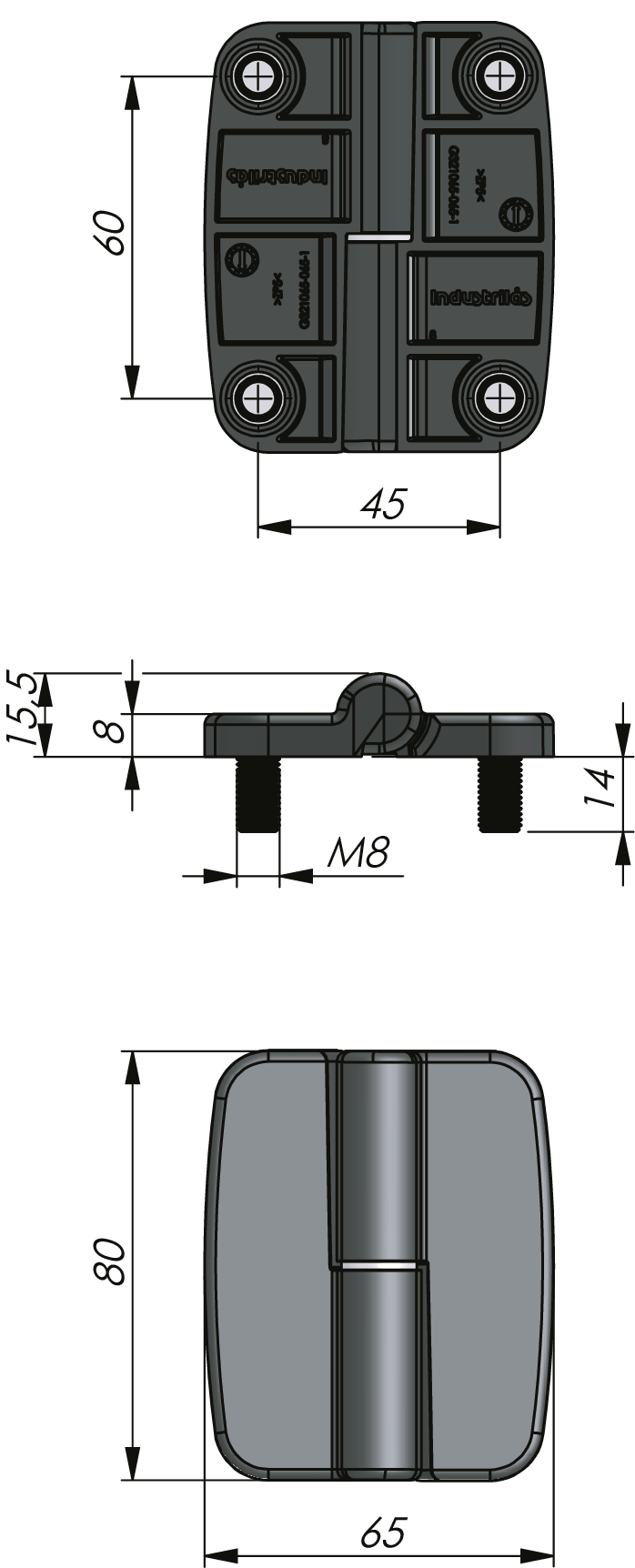

External lift-off hinge with cast-in M8-bolts. Available in left and right hinged version. Version for left hinged door is shown in the drawing. Opening angle 180°.
Nuts or washers are not supplied with the hinge, but may be ordered separately (see part numbers under Related products, Accessories on this page).
| Download PDF | Product Data Sheet |
| Download PDF | Cabinet Design Examples |
| Download PDF | Cabinet Design Examples |
| Download PDF | Recommended Tightening Torque |
| Cast-in bolts | Stainless steel 303 |
|---|---|
| Hinge | Zinc die cast, black texture powder coated |
| Nut | Steel, zinc plated |
| Pin | Stainless steel 303 |
| Washer | Steel, zinc plated |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
