External Bolt-On Hinge 180°
Index Code:3-520

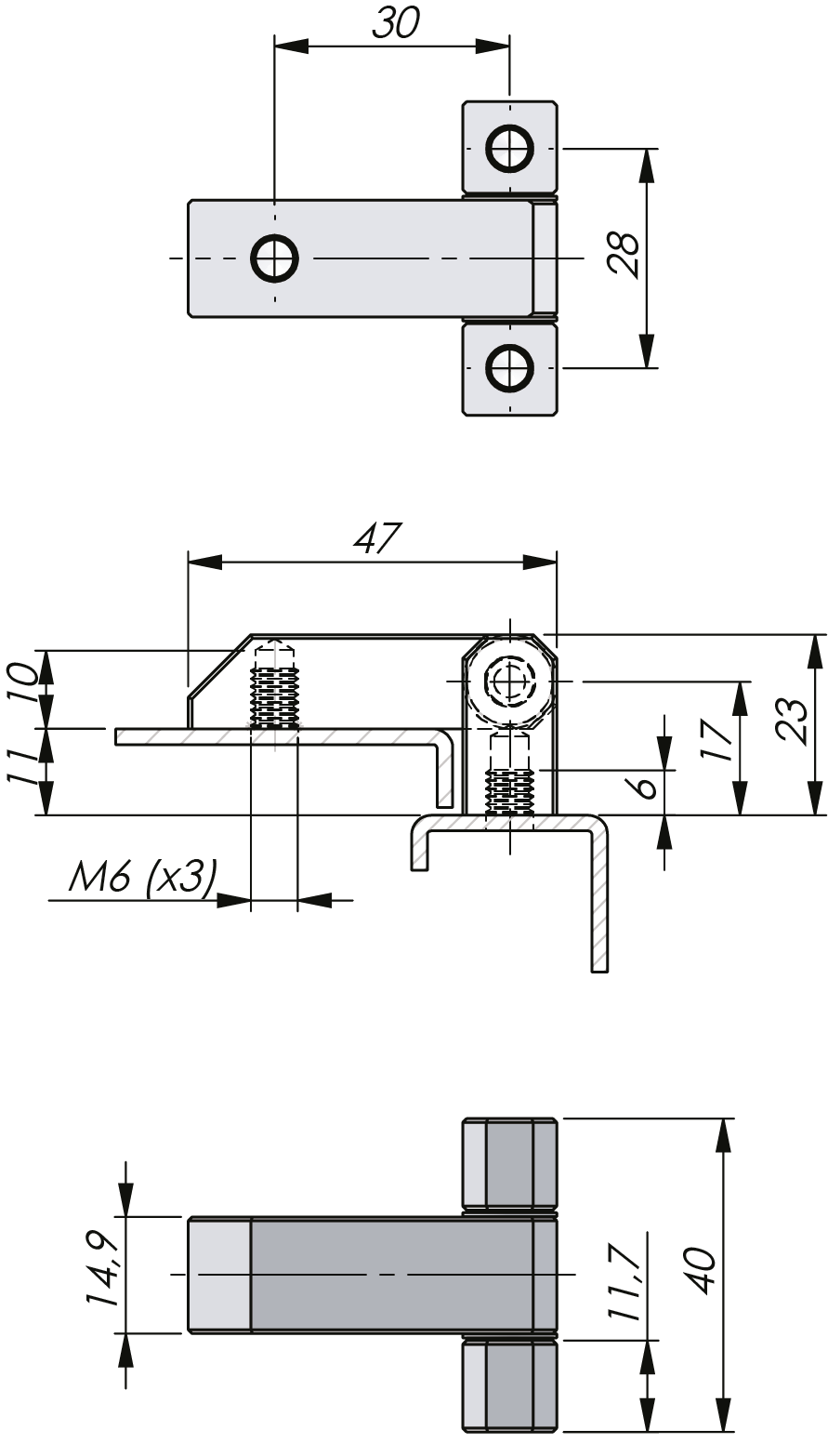

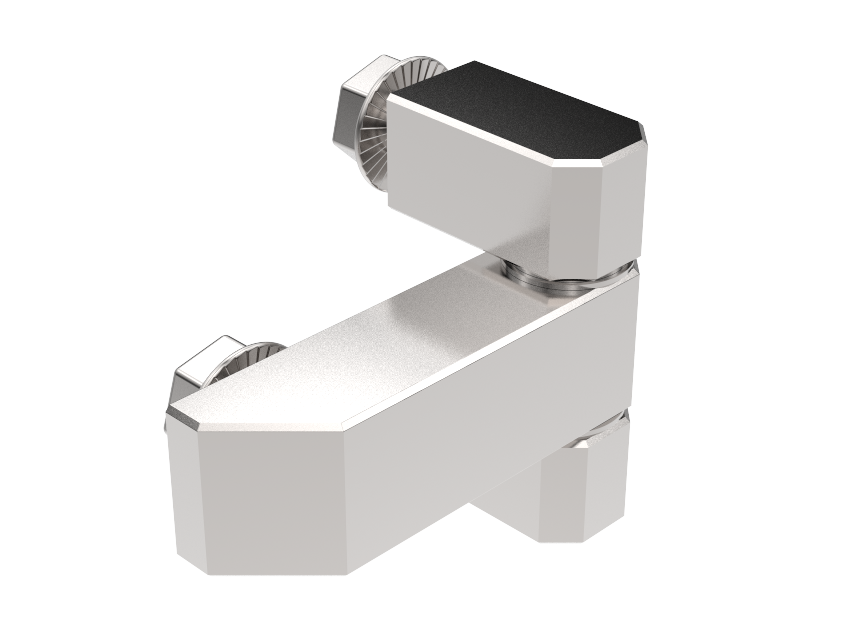

External bolt-on hinge for surface mounted doors with universal left and right mounting. Opening angle 180°. Offset between frame part and door part is 11 mm.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Hinge | Zinc die cast, zinc plated or black texture powder coated |
|---|---|
| Pin | Steel, zinc plated |
| Washer | Brass, nickel plated |
| Screw | Steel, zinc plated |
| Notes | Each hinge is supplied assembled and with three mounting screws M6 x 6 mm. |
|---|
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
