External Bolt-On Hinge 180°
Index Code:3-510

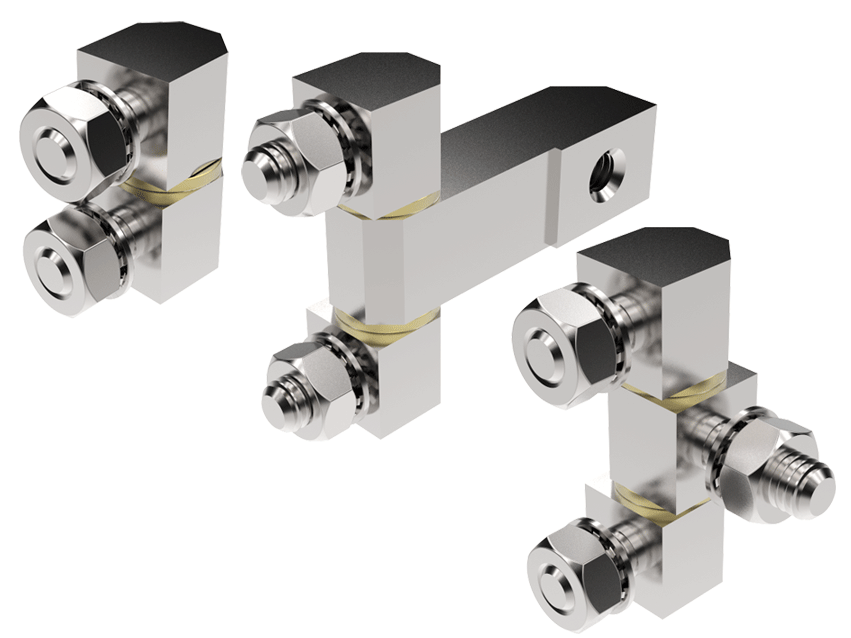

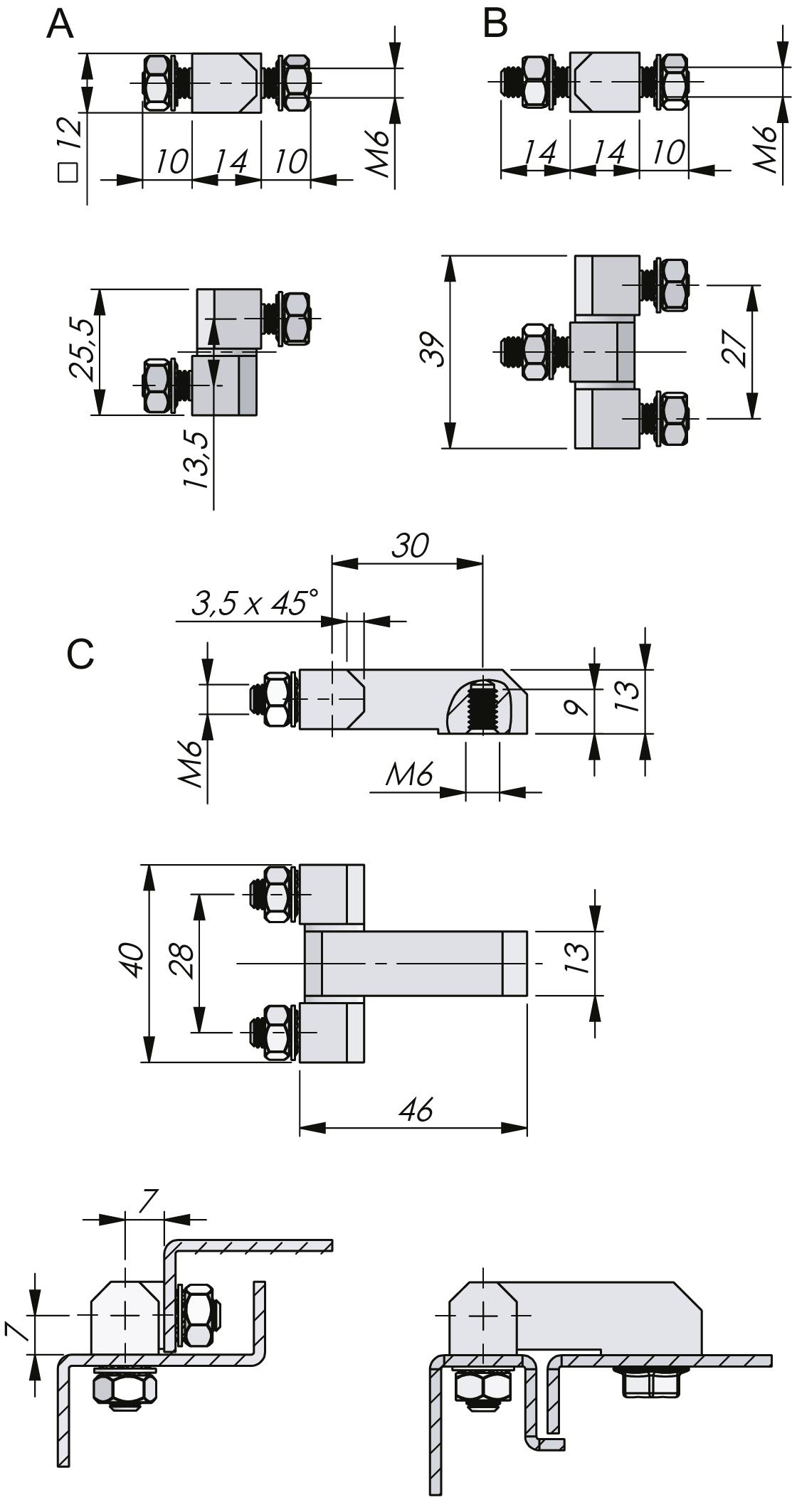

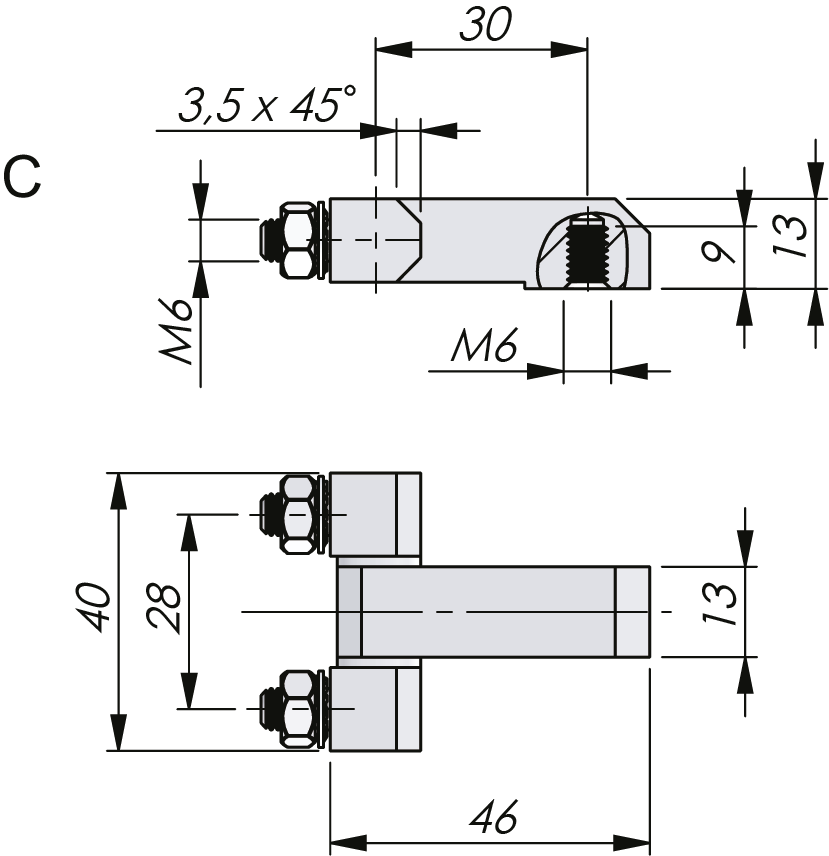

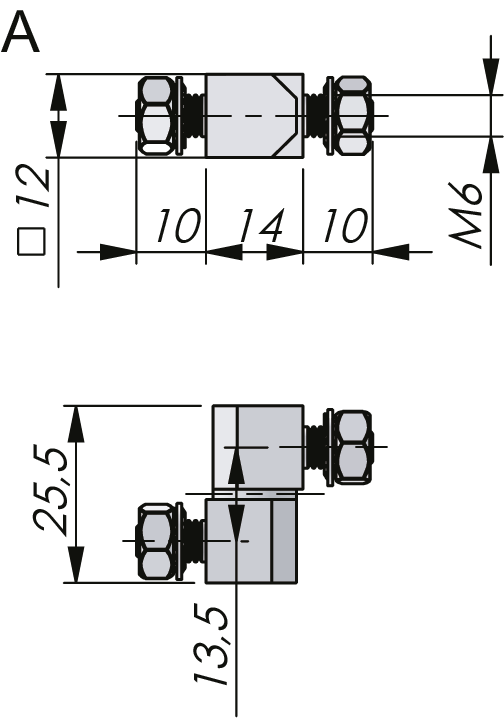

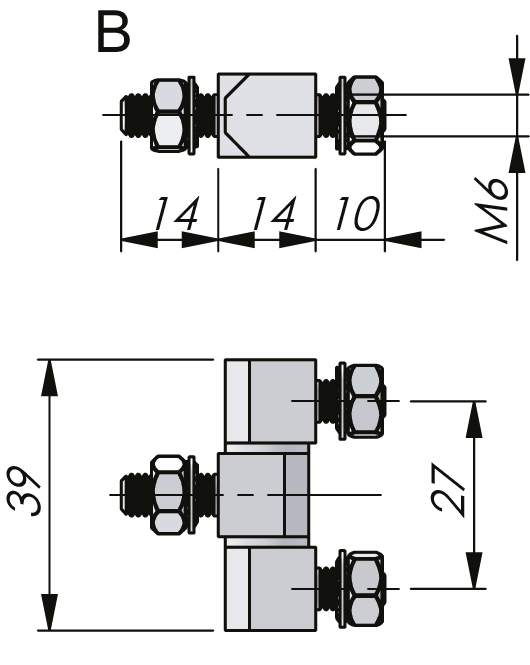

External bolt-on hinge for surface mounted or flush mounted doors with universal left and right mounting. Two-part version in lift-off design, and three-part versions in fixed design. Three-part version (drawing C) with elongated center for flush mounted doors.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Hinge | Steel, zinc plated |
|---|---|
| Nut | Steel, zinc plated |
| Pin | Brass, nickel plated |
| Washer | Brass, nickel plated |
| Notes | Supplied unassembled, with nuts and washers. |
|---|
