External Bolt-On Hinge 180°
Index Code:3-505

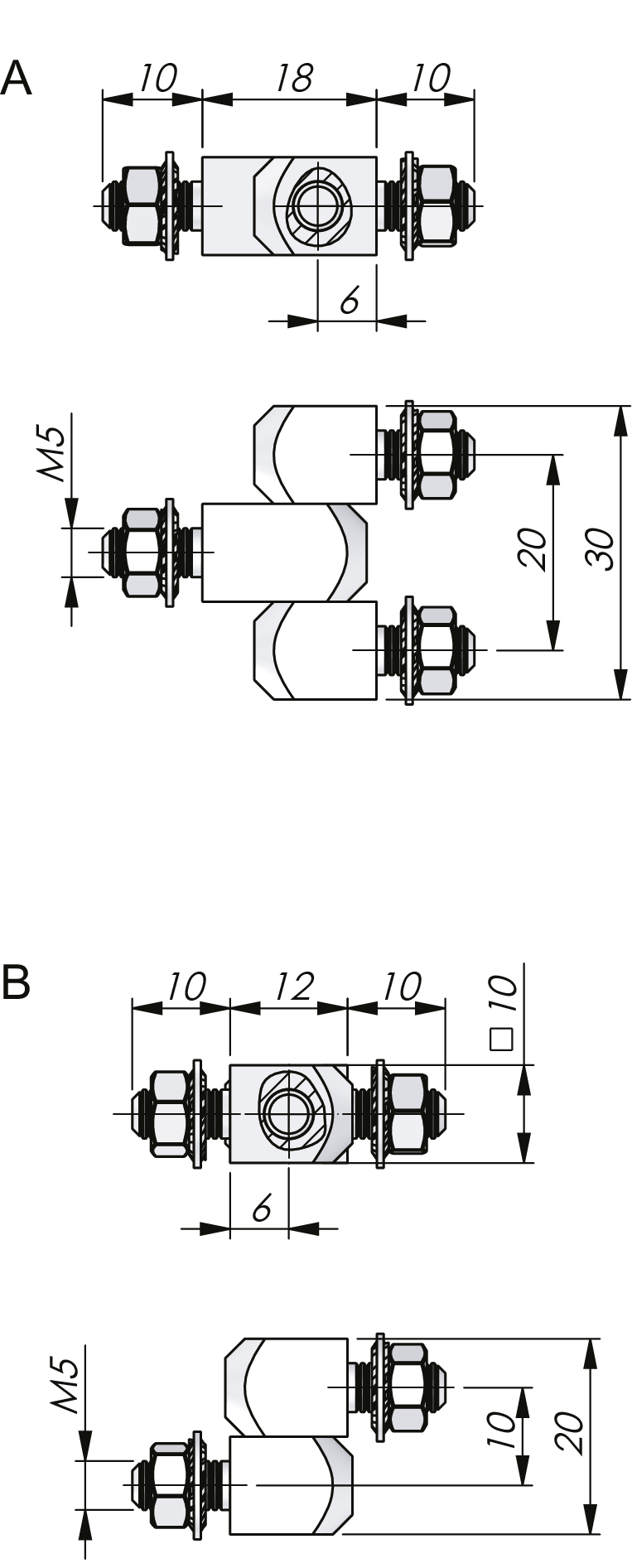

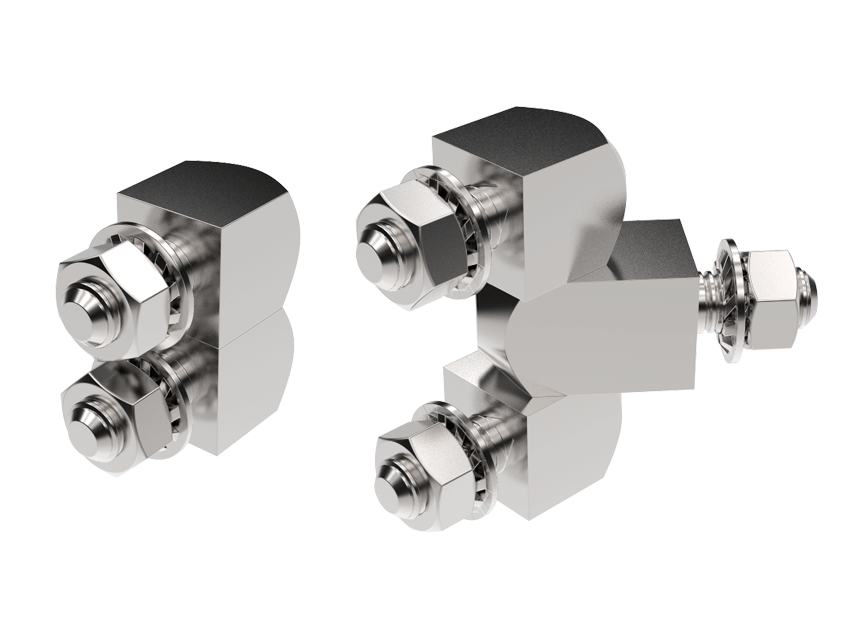

External bolt-on hinge for surface mounted doors with universal left and right mounting. Opening angle 180°. Two-part version in lift-off design, and three-part version in fixed design.
Non-stock item, price and delivery time upon request.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Hinge | Steel, zinc plated |
|---|---|
| Nut | Steel, zinc plated |
| Pin | Brass, nickel plated |
| Washer | Brass, nickel plated |
| Notes | Supplied unassembled, with nuts and washers. |
|---|
