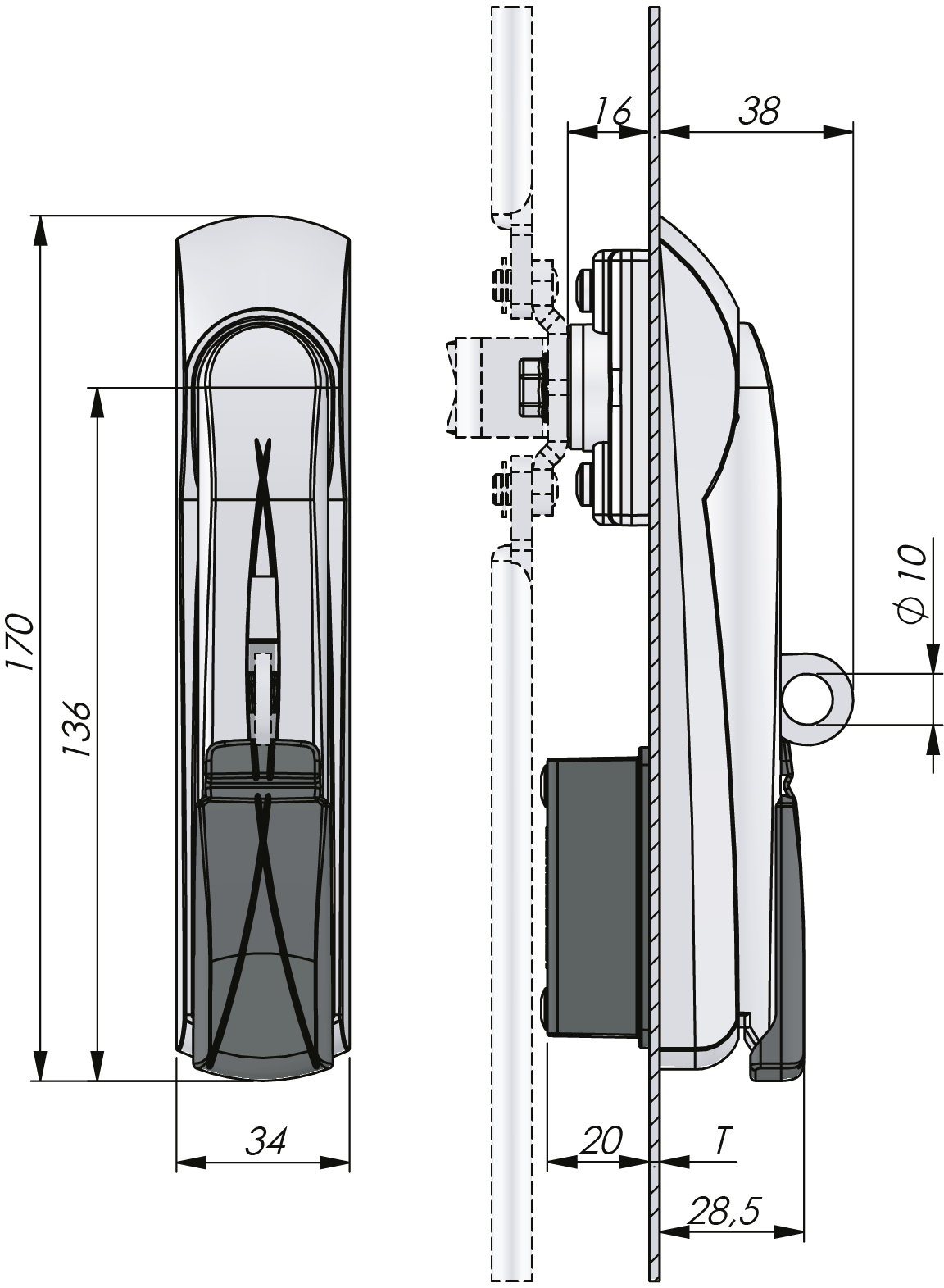

Vision Swing Handle Stainless Steel
Index Code:6-020
Low profile swing handle in acid-proof stainless steel 316. Designed for 40 mm profile cylinder or supplied with tool operated insert. Available in turn-to-latch version where the door is locked by turning the key.
| Download PDF | Product Data Sheet |
| Download PDF | Industrilas cut out versions |
| Download PDF | Recommended Tightening Torque |
| Handle | Stainless steel 316 |
|---|
| Standards | IP69K NEMA 4 |
|---|---|
| Cutout | Version C |
| Specifications | Standard cams with negative bending are not possible to use with this swing handle (negative bended cam will interfere with escutcheon plate). |
|---|
To download CAD-files, you need an Industrilas account. It only takes a minute.
A product number is created by combining the figures in each column (AAAAAABCD-EEEF)
|
|
|
|
|
|
PDL = Spring loaded padlock loop retracts when handle is released.
