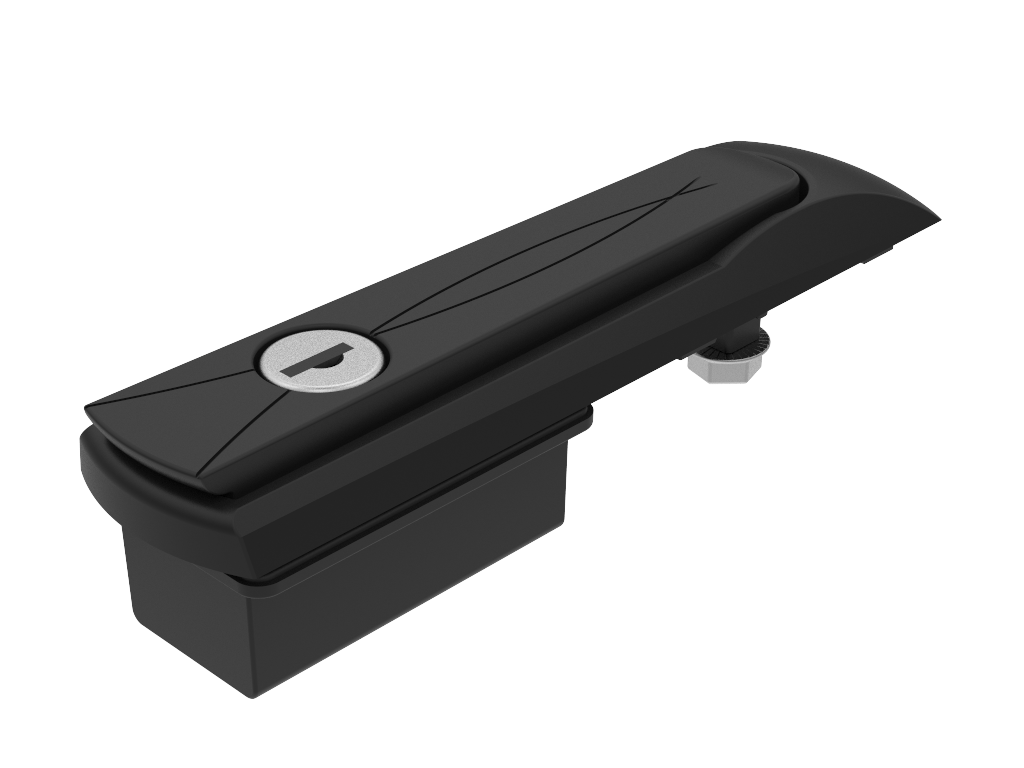

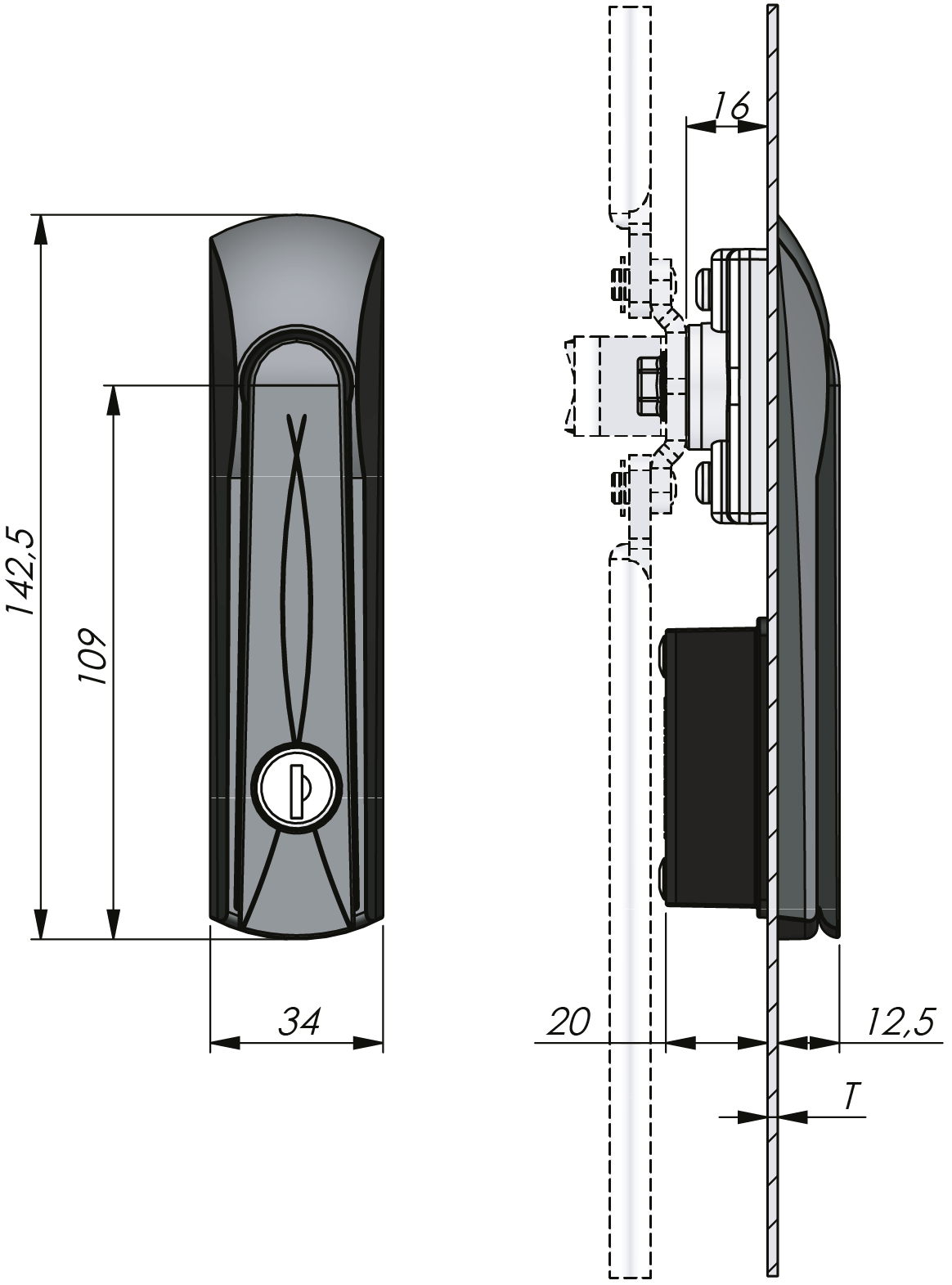

Vision Swing Handle Compact with cylinder
Index Code:1-006.11
Low profile compact swing handle with cylinder for cam. Available in push-to-latch version where the spring-loaded cam latches when the handle is pushed in.
| Download PDF | Product Data Sheet |
| Download PDF | Industrilas cut out versions |
| Download PDF | Recommended Tightening Torque |
| Cylinder | Zinc die cast, stainless steel 304 cap and dust shutter |
|---|---|
| Dish | Glass fibre reinforced polyamide (PA6GF30) |
| Handle | Zinc die cast, black texture powder coated |
| Pivot shaft | Zinc die cast, zinc plated |
| Cutout | Version B |
|---|---|
| Cylinder information | Master key system on request Supplied with two keys |
| Standards | IP66 NEMA 4 |
To download CAD-files, you need an Industrilas account. It only takes a minute.
A product number is created by combining the figures in each column (AAAAAABCD-EEEE)
|
|
|
|
|
PDL = Spring loaded padlock loop retracts when handle is released.
