Classified according to IP65Waterproof according to NEMA 4Universally right or left mountedStainless steelEquipped with integrated PUR-gasket (a.k.a

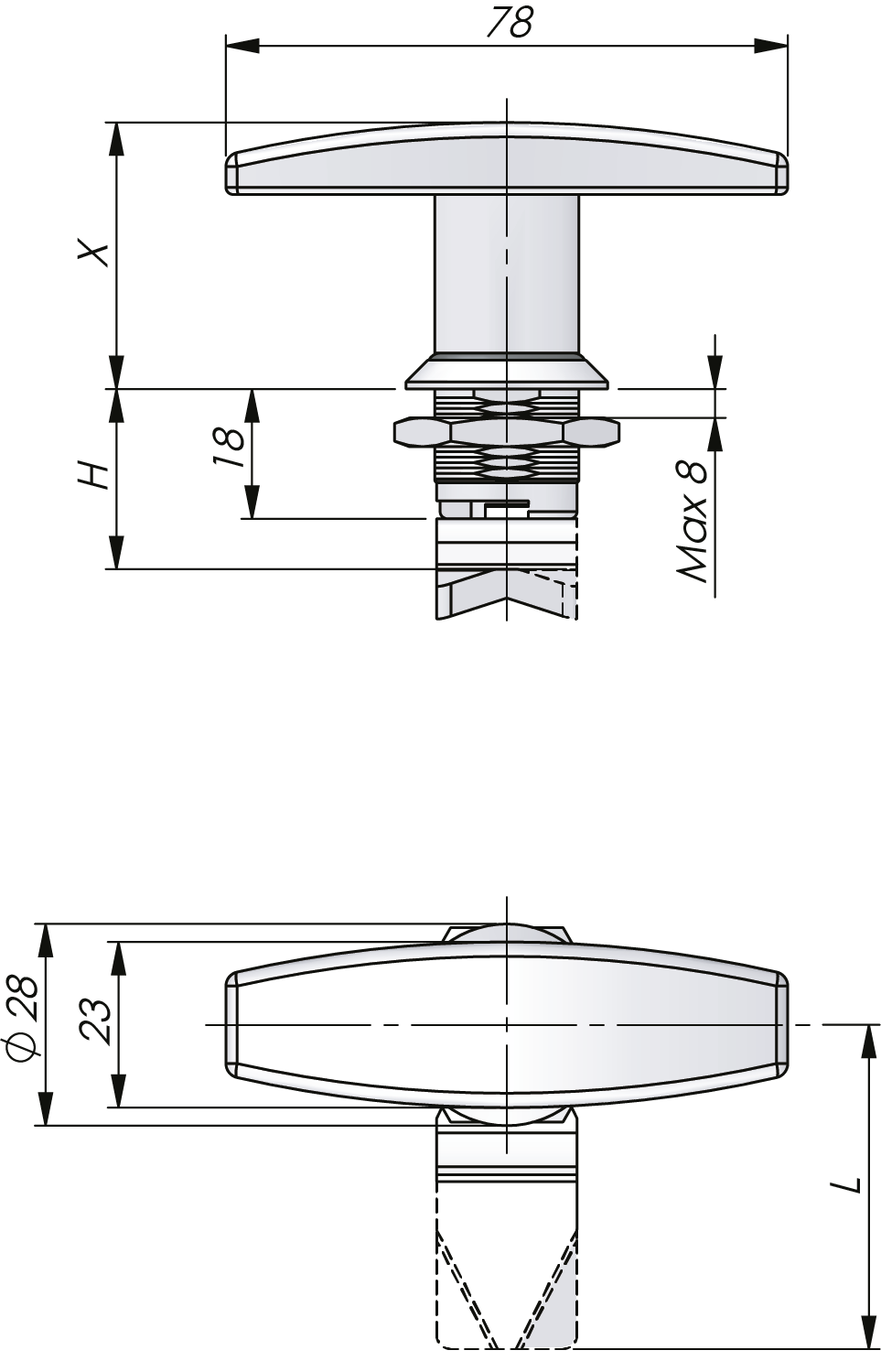

Quarter-turn T-handle Stainless Steel 18 mm

Index Code:
6-150

Quarter-turn T-handle in non-locking version. Universal clockwise or counter-clockwise rotation when opening or closing. Protection degree IP65, also classed waterproof according to NEMA 4. Supplied with nut.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
HandleStainless steel 304 or 316
CutoutCOMBI
StandardsIP65
NEMA 4
To download CAD-files, you need an Industrilas account. It only takes a minute.
or Create Account
A product number is created by combining the figures in each column (AAAAAA-HHLL)
AAAAAA Material Surface treatment handle X=
253050SS 304-37
253067SS 304-47
253550SS 304Black37
259050SS 316-37
HHLL H/L in mm
0000No cam
04454 / 45
06456 / 45
08458 / 45
104510 / 45
124512 / 45
144514 / 45
164516 / 45
184518 / 45
204520 / 45
224522 / 45
244524 / 45
264526 / 45
284528 / 45
304530 / 45
324532 / 45
344534 / 45
364536 / 45
384538 / 45
404540 / 45
424542 / 45
444544 / 45
464546 / 45
484548 / 45
504550 / 45
