Grab Handle and Handrail
Index Code:5-200

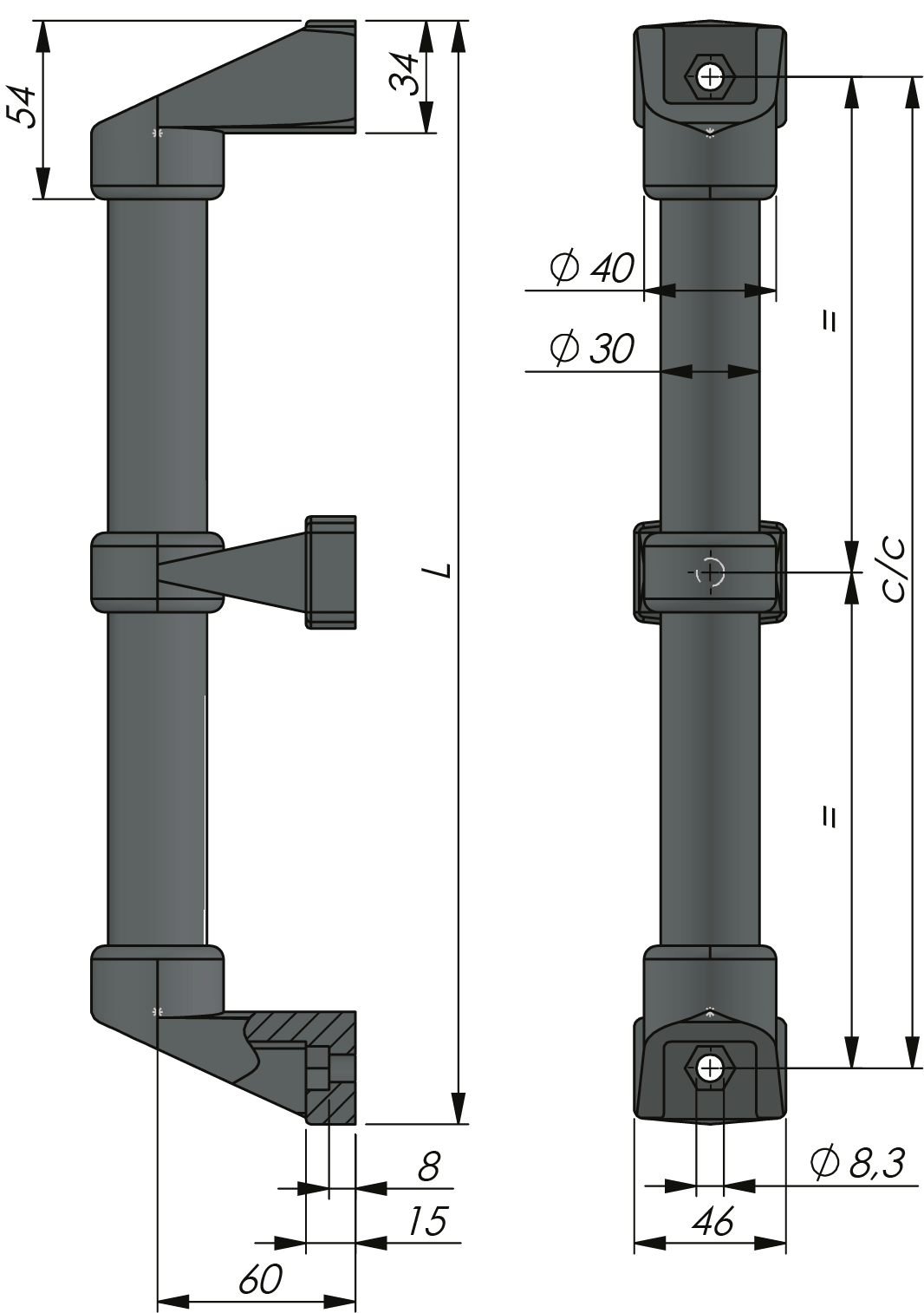

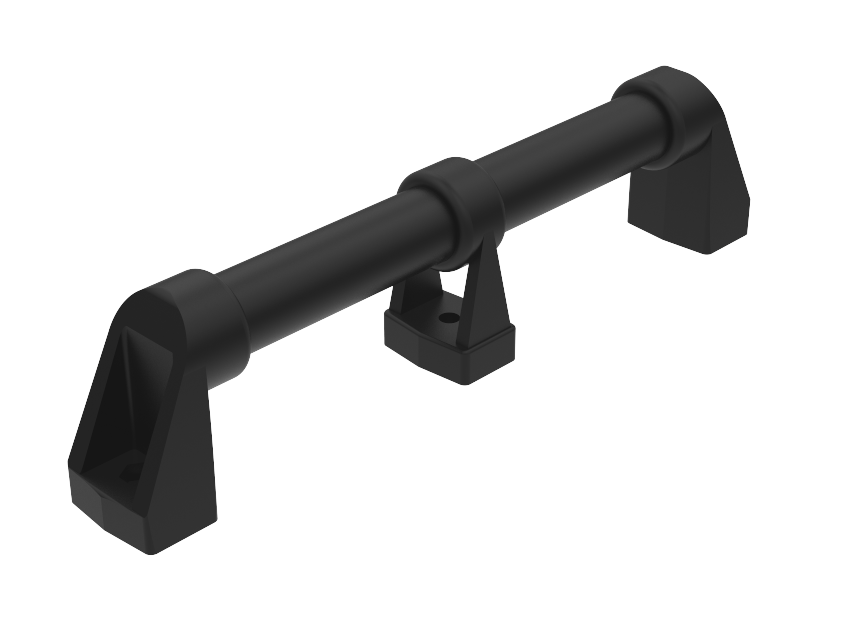

Can be used as a handrail or a grab handle. Two end pieces and one steel tube is used to create a complete unit. Steel tube lengths from 466 mm or longer should also have one or more center support(s). The center- and end pieces can be fastened in a variety of ways using hexagonal socket head cap screws, hexagonal screws or countersunk screws. Various lengths are available.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| End piece and center support | Glass fibre reinforced polyamide (PA6GF30) |
|---|---|
| Tube | Steel with PVC-coating |
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
