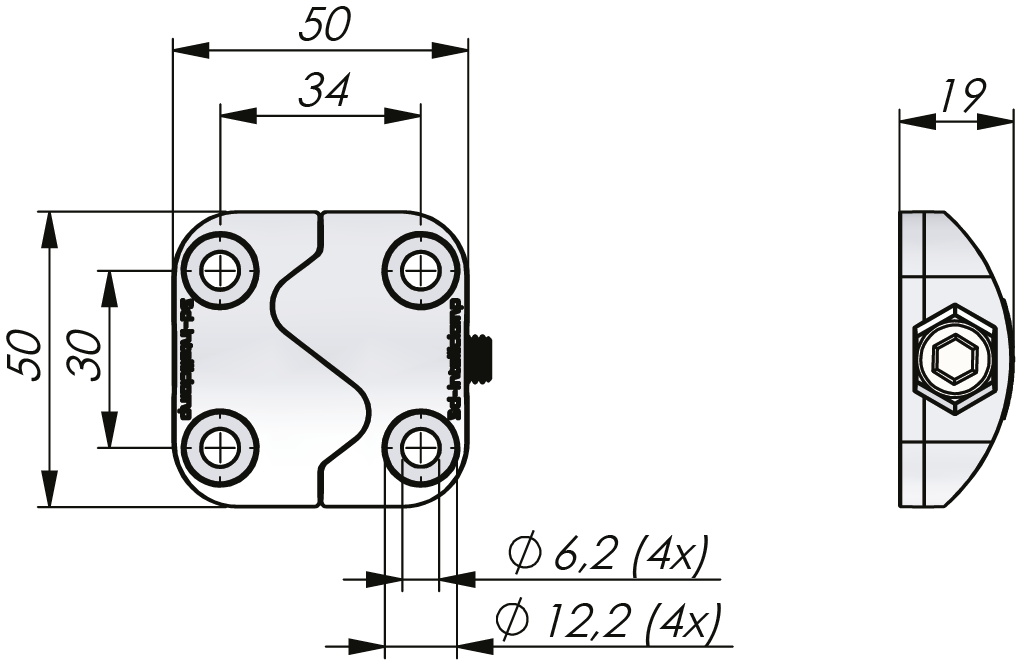

Handle rotation 90° in both directions

Intelliclamp 3D 50x50mm

Index Code:
5-401

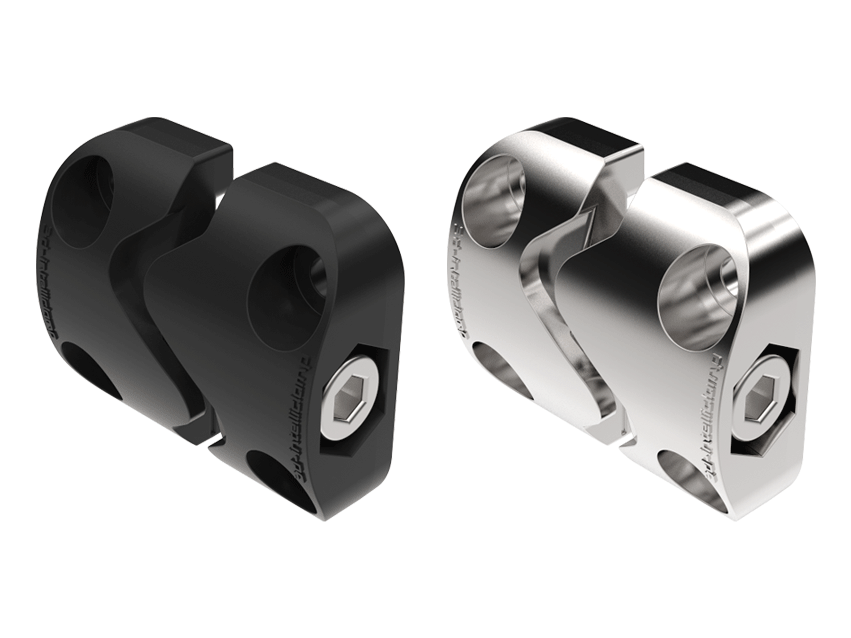

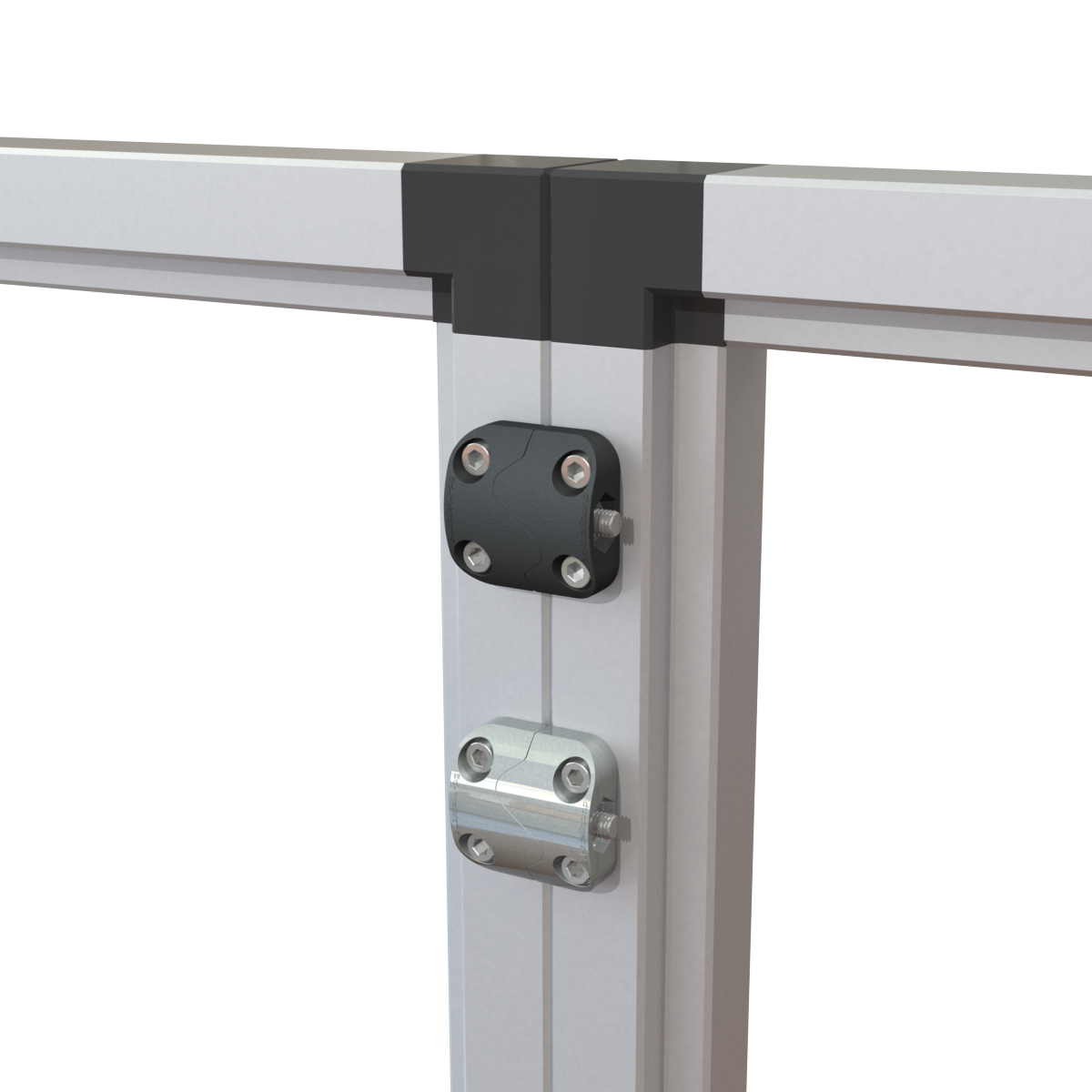

3D-Intelliclamp for connection of sections or units. The 3D-Intelliclamp will align separate units in X-, Y- and Z-axis as the bolt is tightened. Provides a solid connection with perfect alignment of surfaces. Mounting with rivets or screws. Each 3D-Intelliclamp consists of two interlocking halves, inter connecting bolt and nut.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
Interlocking partsZinc die cast, black texture powder coated or zinc plated
Through-bolt and nut (M8)Steel, zinc plated
Notes

Tighten the through-bolt using a 6 mm hexagon key (Allen key).

Screws, bolts or rivets for mounting are not included.
