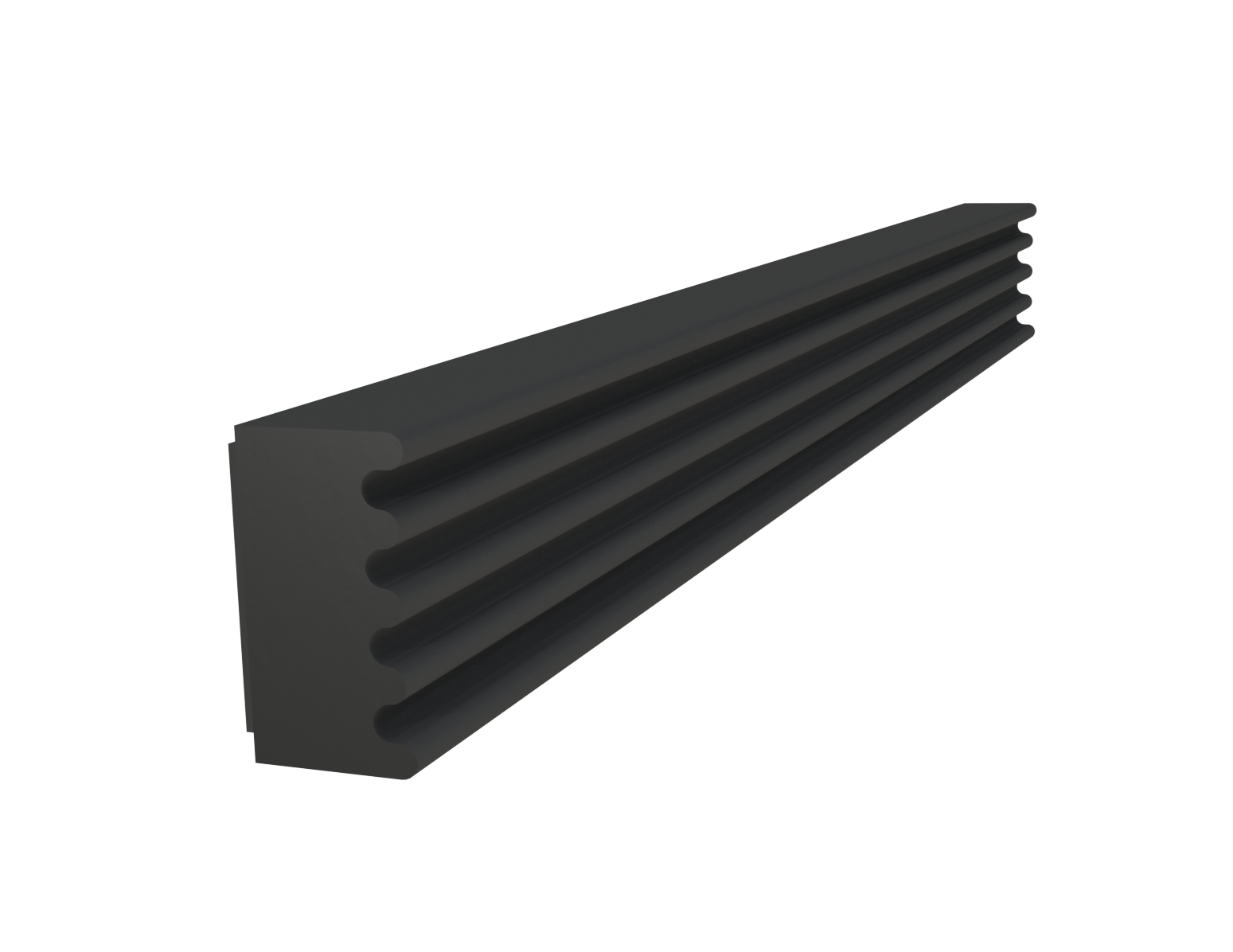

Sealing Profiles According to VDI 6022
Index Code:4-022
Most sealing profiles can be delivered as certified according to VDI 6022. These profiles are then hygienically accepted and manufactured from a soft solid EPDM compound, which minimize the microbacterial growth. This aspect is important especially in heating, ventilation and cooling equipment.
For EPDM self-adhesive E-profiles in VDI 6022-quality, see table below. These profiles are available in a variety of sizes. Contact us with your questions and requirements and we will help you!
| Download PDF | Product Data Sheet |
| Download PDF | Custom Sealing Profiles |
| Download PDF | Properties of rubber |
| Colour | Black |
|---|
| Standards | VDI 6022 |
|---|
| Choose CAD format here:
To download CAD-Files for this product |
| Download here: |
To download CAD-files, you need an Industrilas account. It only takes a minute.
| Sealing Profiles Approved to VDI 6022 | |
|---|---|
| Properties | Solid EPDM |
| Hardness | Shore 50A - Shore 60A |
| Color | Black |
| Temperature range | -40°C to +100°C |
| Ozone resistance | Very good |
| Weather resistance | Very good |
| Chemical resistance | Very good |
