1-005_10 |
Vision Swing Handle Ergonomic Line
Index Code:Low profile swing handle used for latching systems with a control mechanism and flat rods. It is used with either a 40 mm profile cylinder or equipped with a push button or a tool operated insert. The cylinder, push button or insert is in the dish of the swing handle, providing a more ergonomic way of operating the handle.

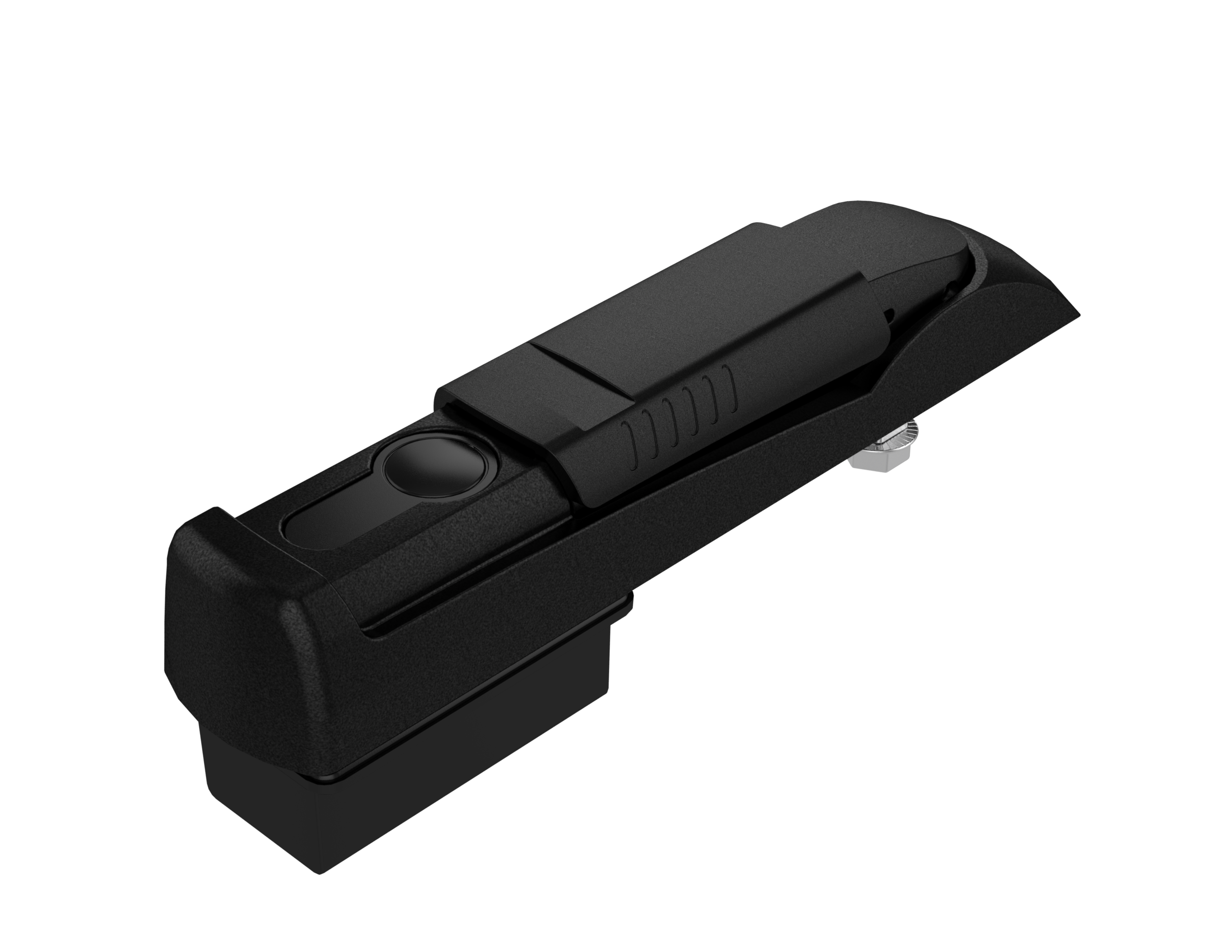

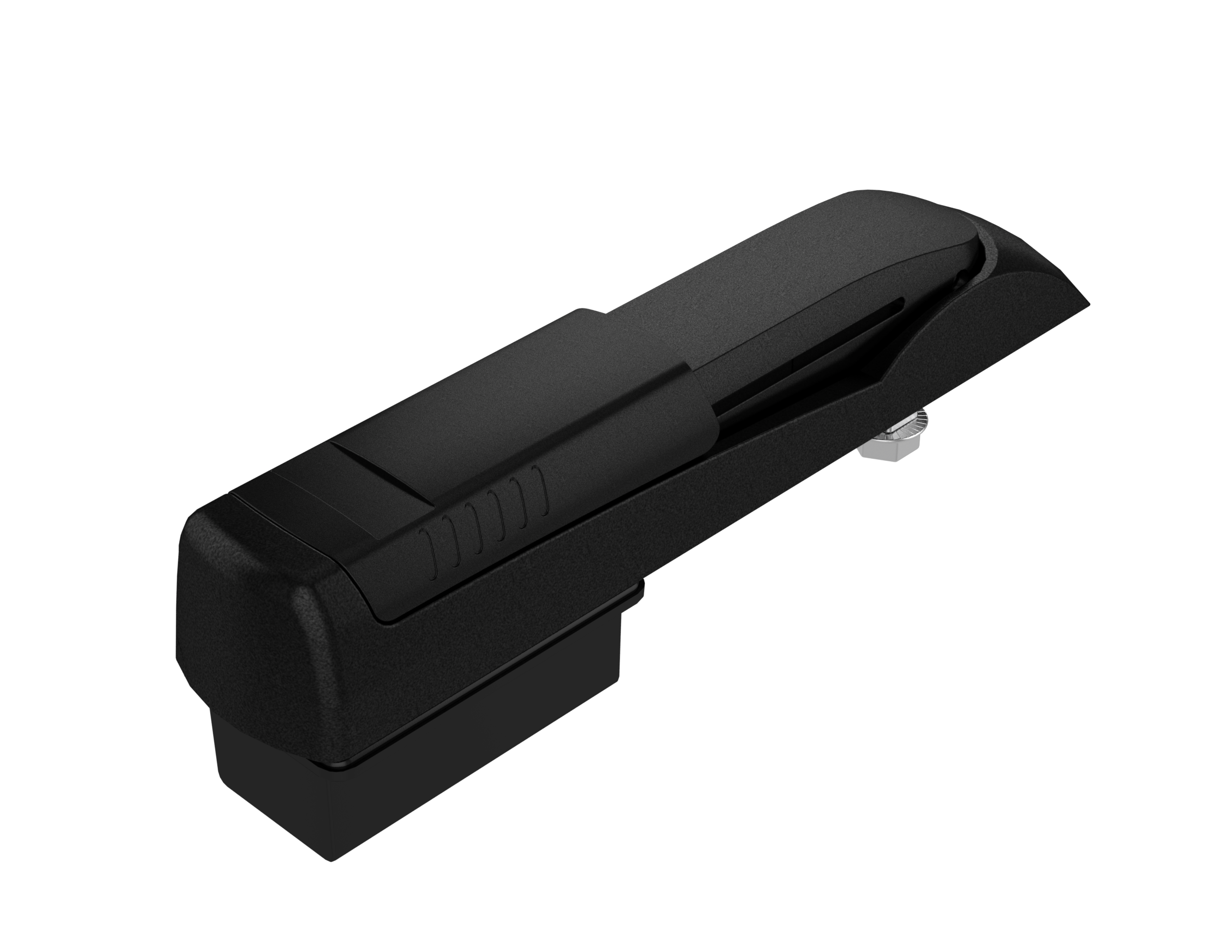

The handle is spring loaded and pops out when it is unlocked or push button is pressed. Cylinder is covered by a sliding dust cover. IP66 waterproof according to NEMA 4.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Download PDF | Industrilas cut out versions |
| Dish | Glass fibre reinforced polyamide (PA6GF30) |
|---|---|
| Dust cover | Glass fibre reinforced polyamide (PA6GF30) |
| Handle | Glass fibre reinforced polyamide (PA6GF30) |
| O-ring | NBR |
| Push button | Glass fibre reinforced polyamide (PA6GF30) |
| Cutout | Version C |
|---|---|

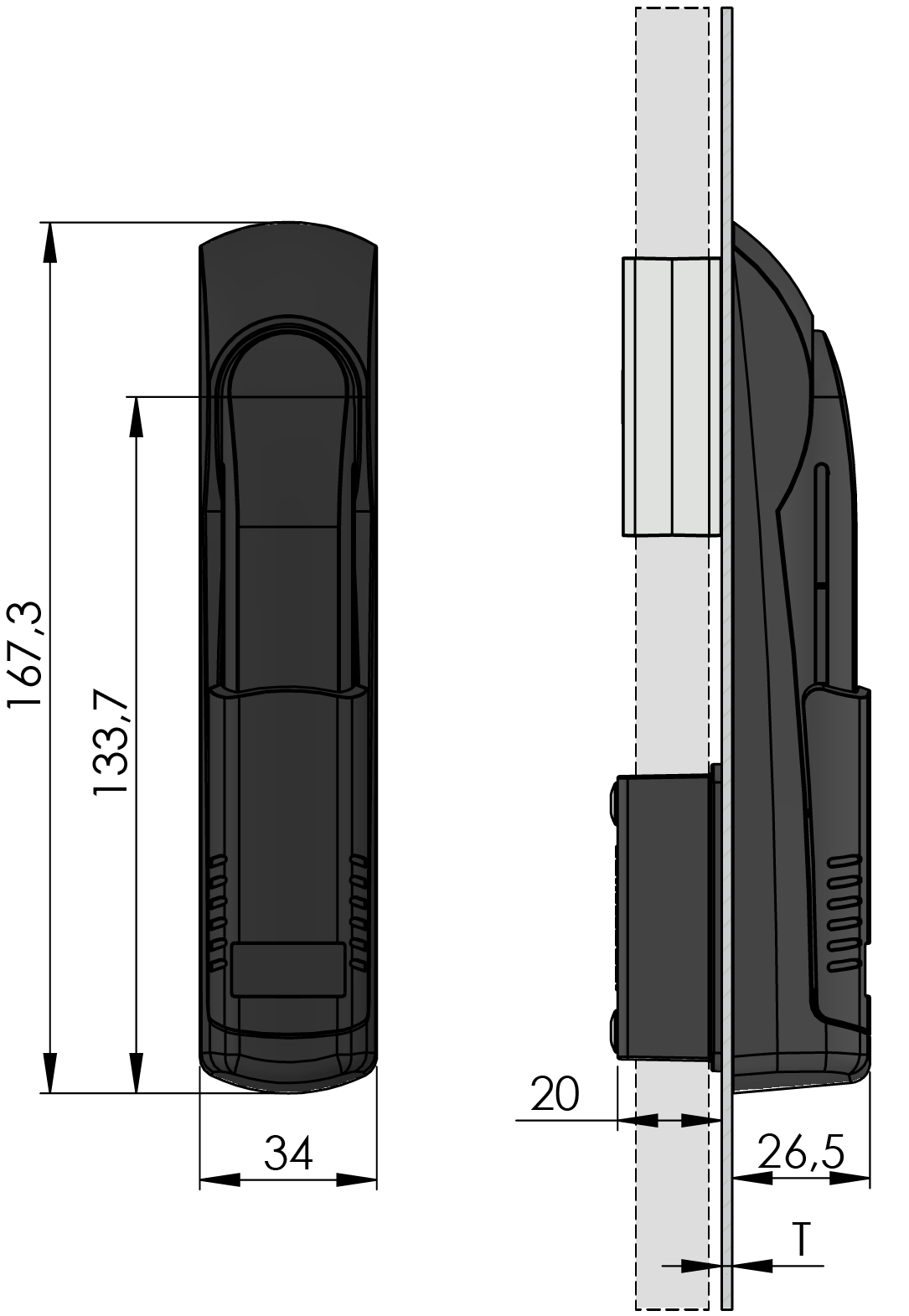

| Notes | Model with profile cylinder: Model with insert, push-button or round cylinder: T = For door thickness: 0,8-3,5 mm. * Handle supplied without profile cylinder. |
| Standards | IP66 NEMA 4 |
|
|
|
|
|
|
