Vector Latch Point

Index Code:
2-769

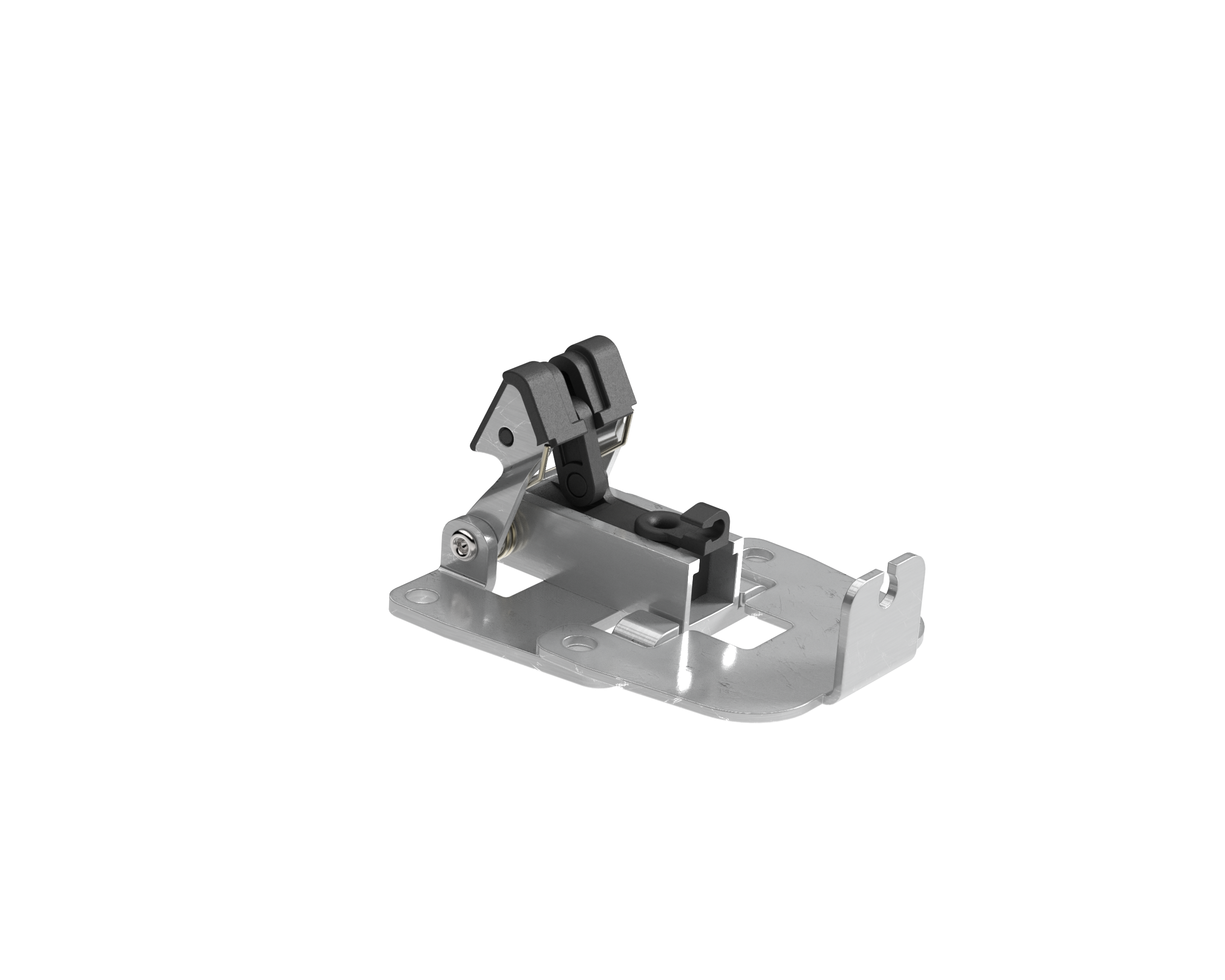

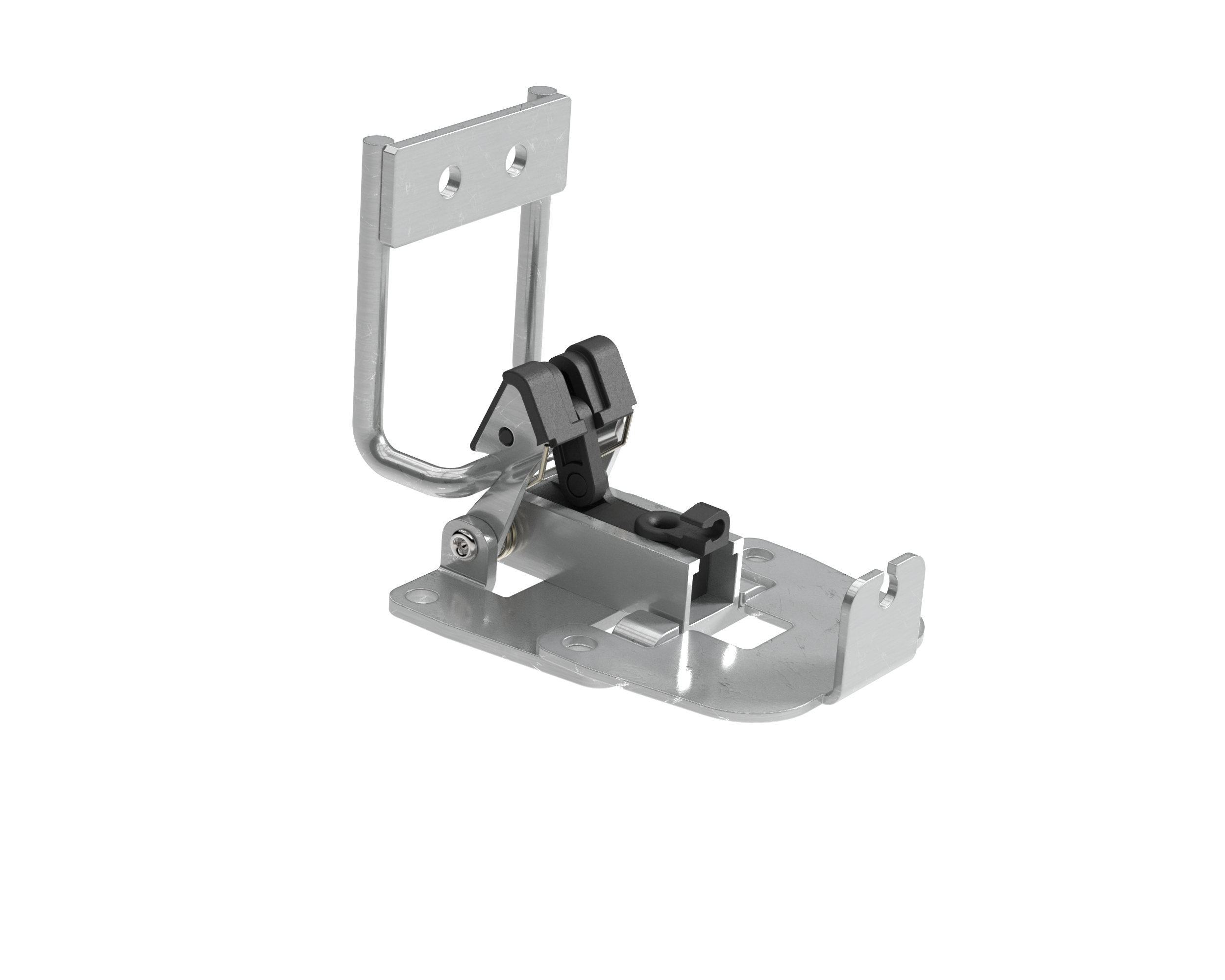

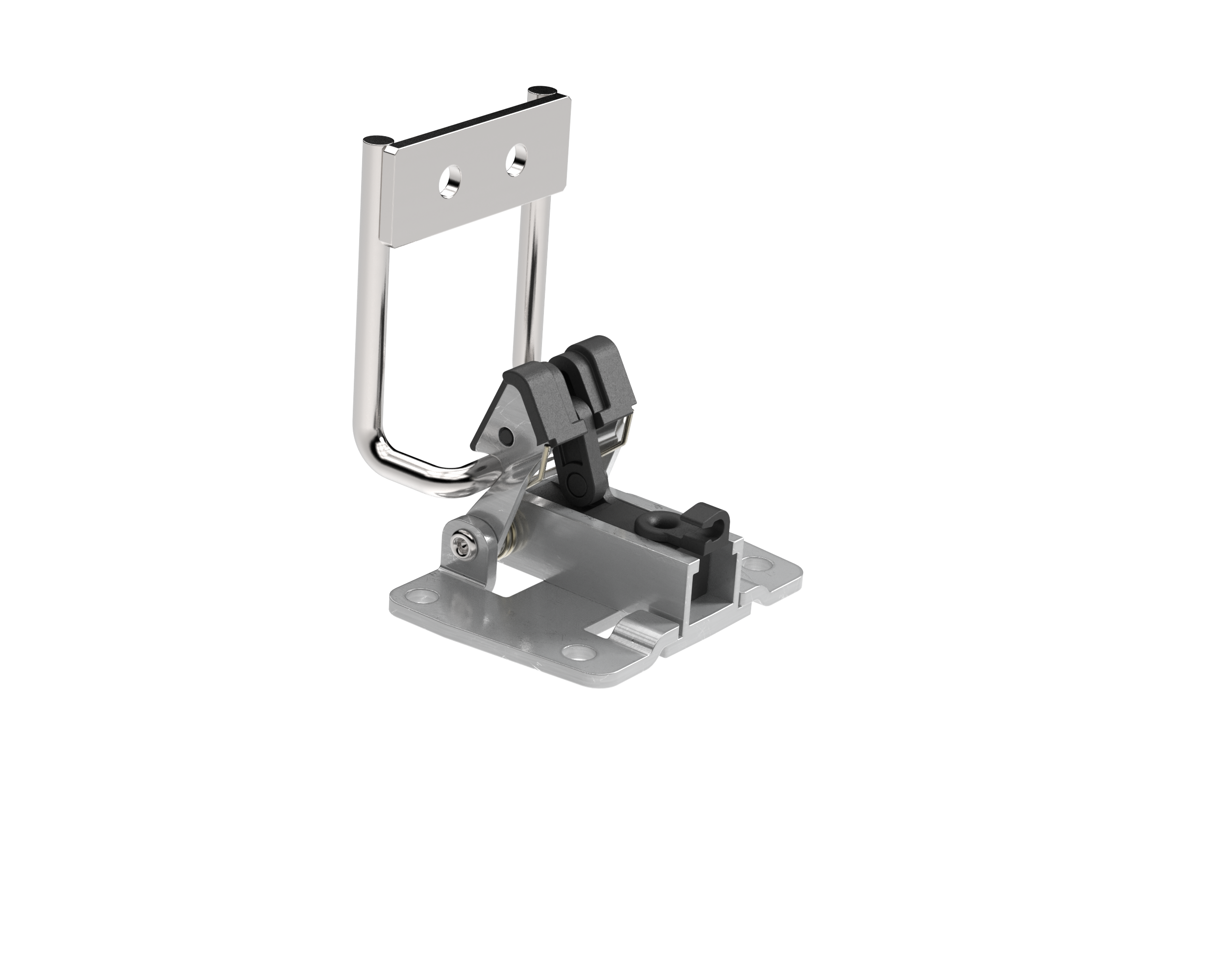

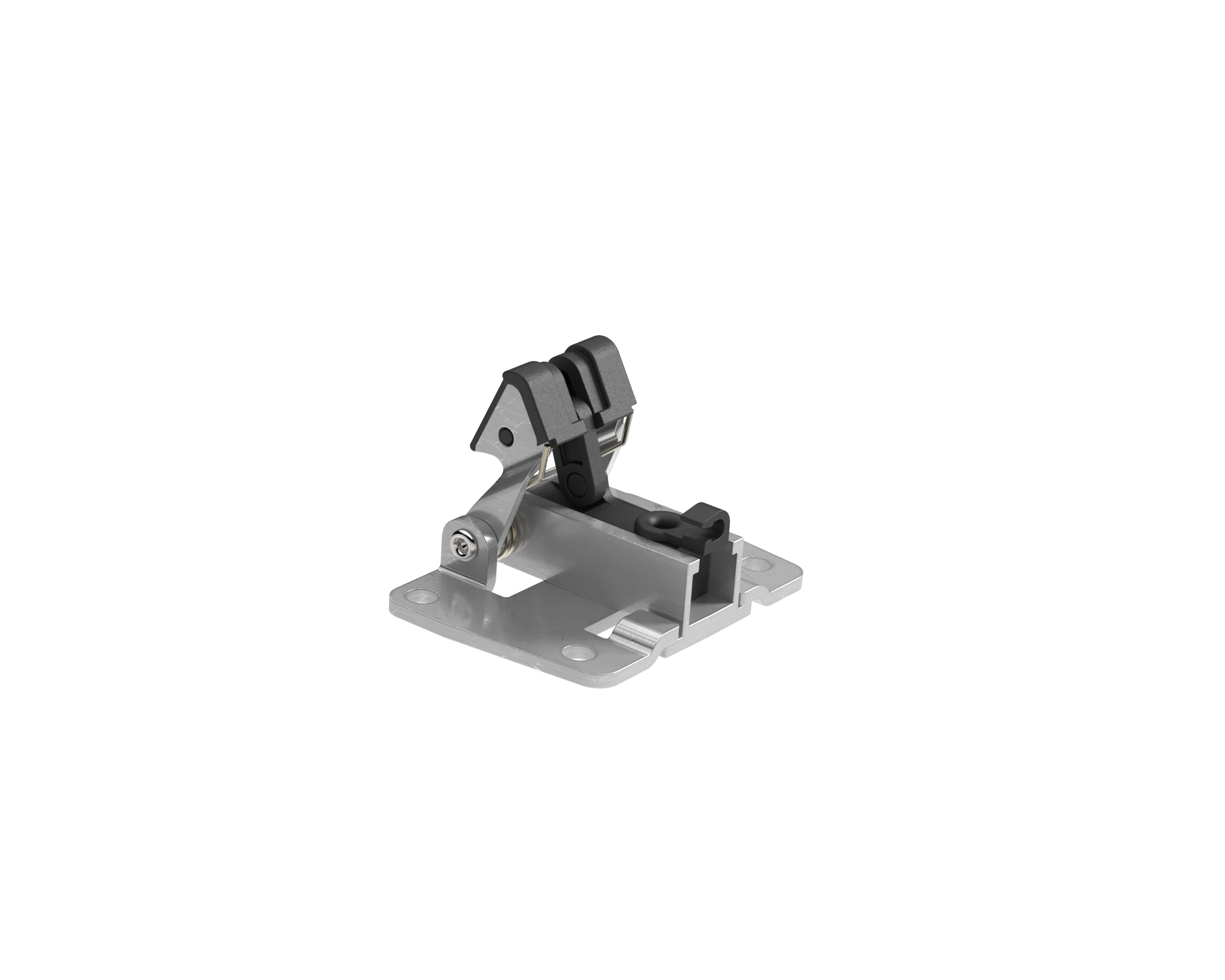

Vector Latch Points offer concealed latch points with convenient push-to-close action for lids or doors. Suitable for a variety of applications that require high strength, robust and secure latching. They are employed either as single latch point or in a multipoint latching system.

Vector Latch Points are connected with Vector Pull handle by Vector rods or cables, creating an optimized latching system with components easily and securely fitted together. Please see related products to choose your components for your complete Vector latching system.

Download PDF
Product Data Sheet
Download PDF
Recommended Tightening Torque
CamGlass fibre reinforced polyamide (PA6GF30)
Mounting bracketSteel, zinc plated
StrikerSteel, zinc plated
