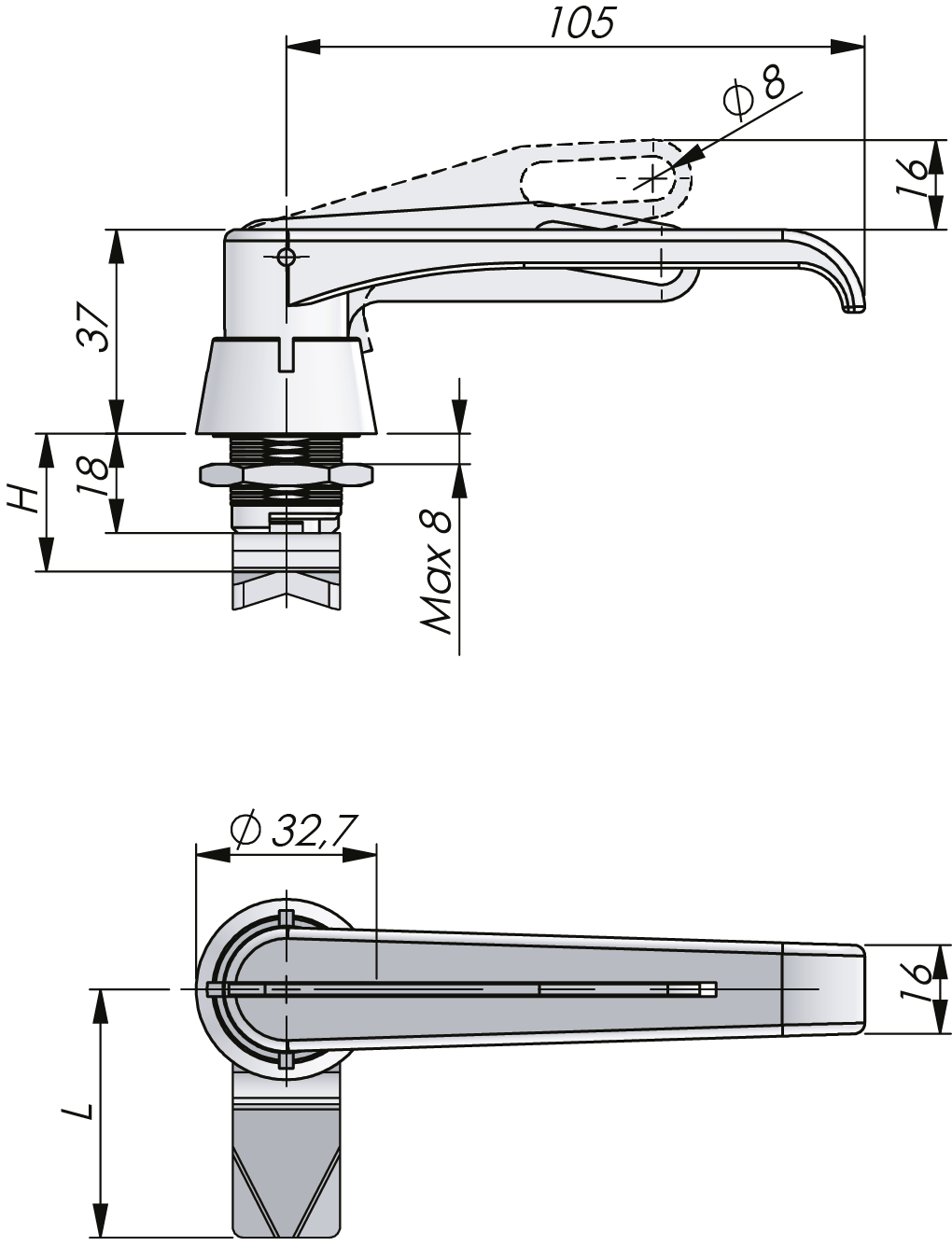

Quarter-Turn L-Handle
Index Code:2-300
Quarter-turn L-handle for padlock, with spring loaded retractable padlock loop. Supplied with nut. Protection degree IP65, also classed Waterproof according to NEMA 4.
| Download PDF | Product Data Sheet |
| Download PDF | Recommended Tightening Torque |
| Cam and screw | Steel, zinc plated |
|---|---|
| Earthing nut | Zinc die cast, zinc plated |
| Handle | Zinc die cast, chrome plated or black coated |
| Housing | Zinc die cast, chrome plated or black coated |
| Padlock loop | Steel, chrome plated or black coated |
| Standard nut | Zinc die cast, zinc plated |
| Notes | Example: 261565-1-4045 is a black L-handle for a right hinged door with a standard fixation nut, and a cam having a H-measurement of 40 mm with standard length of 45 mm. |
|---|---|
| Standards | IP65 NEMA 4 |
To download CAD-files, you need an Industrilas account. It only takes a minute.
A product number is created by combining the figures in each column (AAAAAA-B-HHLL)
|
|
|
RH = Right hinged door. LH = Left hinged door.
