Quarter-Turn Latch Stainless steel 18 mm

Quarter-Turn Latch Stainless steel 18 mm

Index Code:

6-110

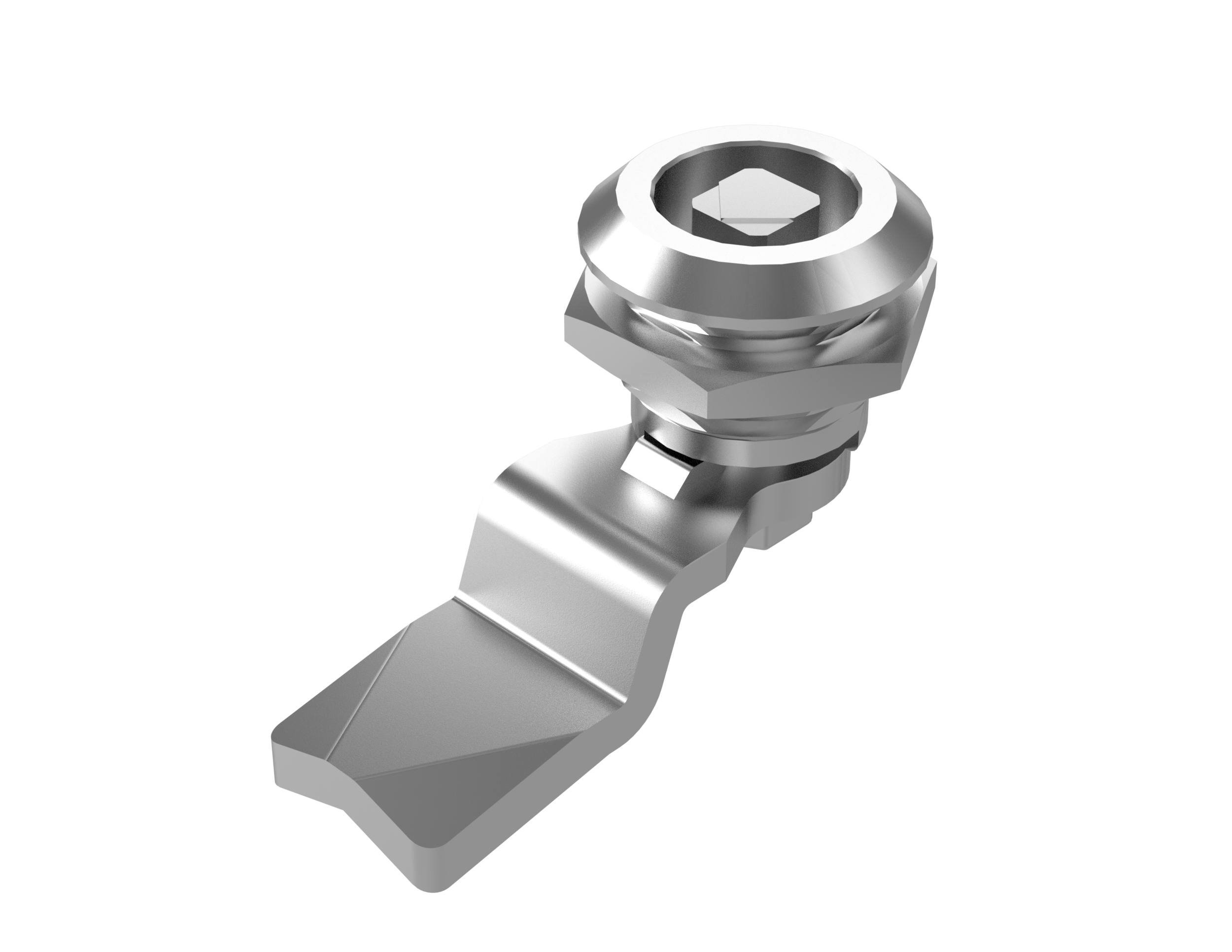

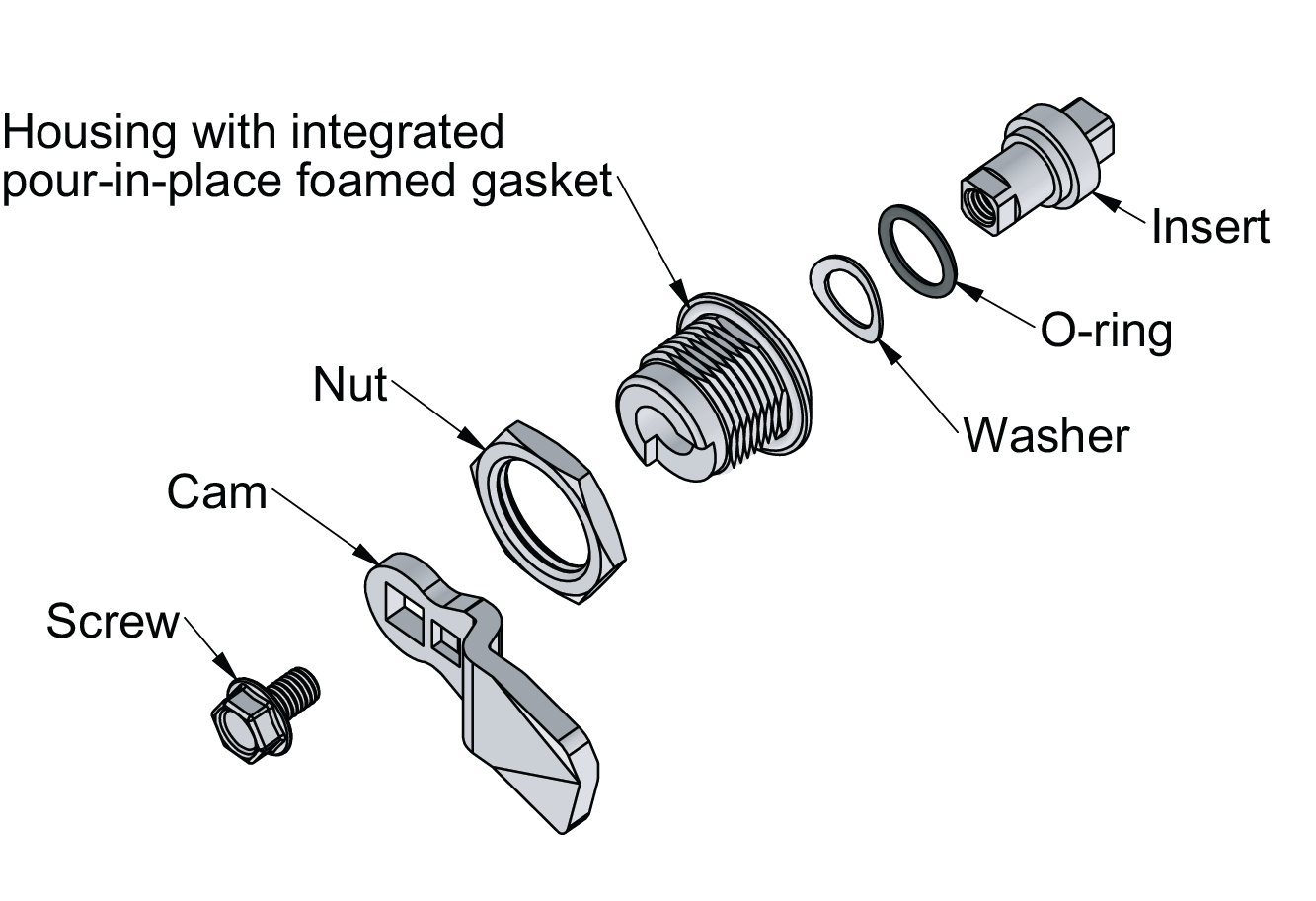

This complete latch consists of housing, nut, insert, washer, screw and cam. To achieve protection degree IP66, an O-ring and pour-in-place foamed polyurethane gasket is applied. The latch can be supplied un-assembled, pre-assembled with enclosed cam or completely assembled. Waterproof according to NEMA 4.

DownloadsMaterialTechnical Information

Download PDF	Product Data Sheet
Download PDF	Recommended Tightening Torque
Download PDF	Industrilas cut out versions

Cam	Stainless steel 304 or 316
Housing	Stainless steel 303 or 316
Insert	Stainless steel 303 or 316
Nut	Stainless steel 303 or 316

Notes	* = also classed ”Waterproof according to NEMA 4”
Standards	IP66 NEMA 4
Cutout	COMBI

To download CAD-files, you need an Industrilas account. It only takes a minute.

A product number is created by combining the figures in each column (AAAA-BCCDEF-HHLL)

AAAA	Housing
2313	Stainless steel 303
2319	Stainless steel 316

B	Nut
3	SS 303
9	SS 316

CC	Insert
01	Square 6
03	Square 7
05	Square 8
07	Square 8 / slotted
08	Square 8 / M6
11	Square 8 / recessed
14	Triangle 7
15	Triangle 8
16	Triangle 10
22	Double Bit 3
24	Double Bit 5
26	Slotted
41	Slotted recessed

D	Material insert and housing
3	SS 303
9	SS 316

E	Assembly
0	IP54 - not assembled
1	IP66 - not assembled
2	IP54 - enclosed cam
3	IP66 - enclosed cam
4	IP54 - assembled
5	IP66 - assembled

F	Cam
3	SS 304
9	SS 316

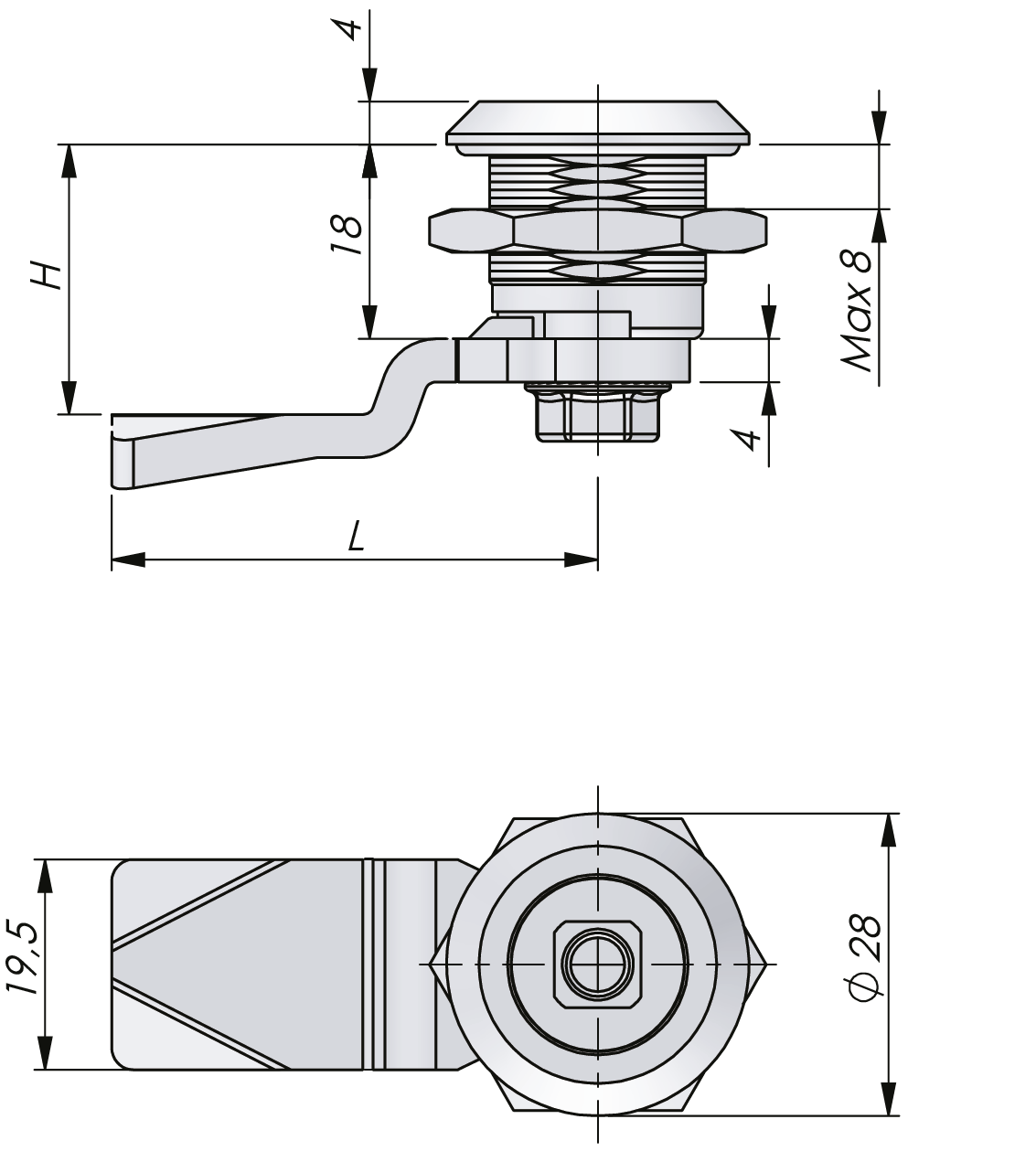

HHLL	H/L in mm
0000	No cam
0445	4 / 45
0645	6 / 45
0845	8 / 45
1045	10 / 45
1245	12 / 45
1445	14 / 45
1645	16 / 45
1845	18 / 45
2045	20 / 45
2245	22 / 45
2445	24 / 45
2645	26 / 45
2845	28 / 45
3045	30 / 45
3245	32 / 45
3445	34 / 45
3645	36 / 45
3845	38 / 45
4045	40 / 45
4245	42 / 45
4445	44 / 45
4645	46 / 45
4845	48 / 45
5045	50 / 45
