Vision Outside Insulated

Index Code:

1-008.07

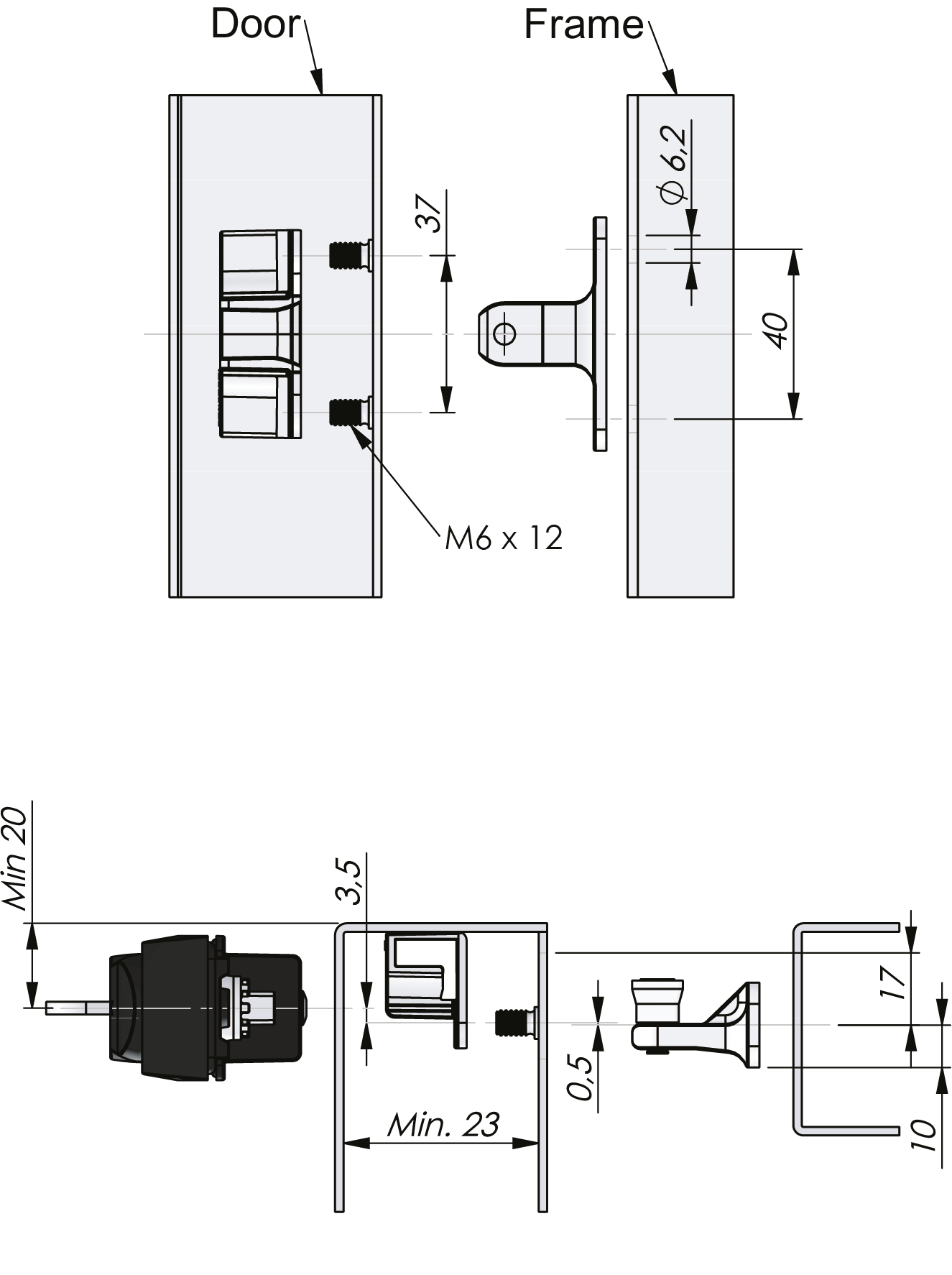

Vision Outside Insulated - the specially adapted version for designs in Telecom, HVAC-applications and similar where insulated or double skinned doors are used.

Vision Outside Insulated is specially developed for your electric enclosures that need to keep valuable electronics in a climate controlled environment under a fixed temperature. Used with insulated doors to maintain a temperature controlled climate inside the enclosure, protecting the electronics.

DownloadsMaterial

Download PDF	Product Data Sheet
Download PDF	Additional System Information Vision Outside Insulated
Download PDF	Recommended Tightening Torque

Control mechanism	Zinc die cast, zinc plated, special surface treatment (passes 30 day salt-spray test according to ISO 9227, equivalent to ASTM B 117) or glass fibre reinforced polyamide (PA6GF30)
Rod	Steel, zinc plated or stainless steel 316

Choose CAD format here:

Download here:

To download CAD-files, you need an Industrilas account. It only takes a minute.

Products marked with * are available on request only.
